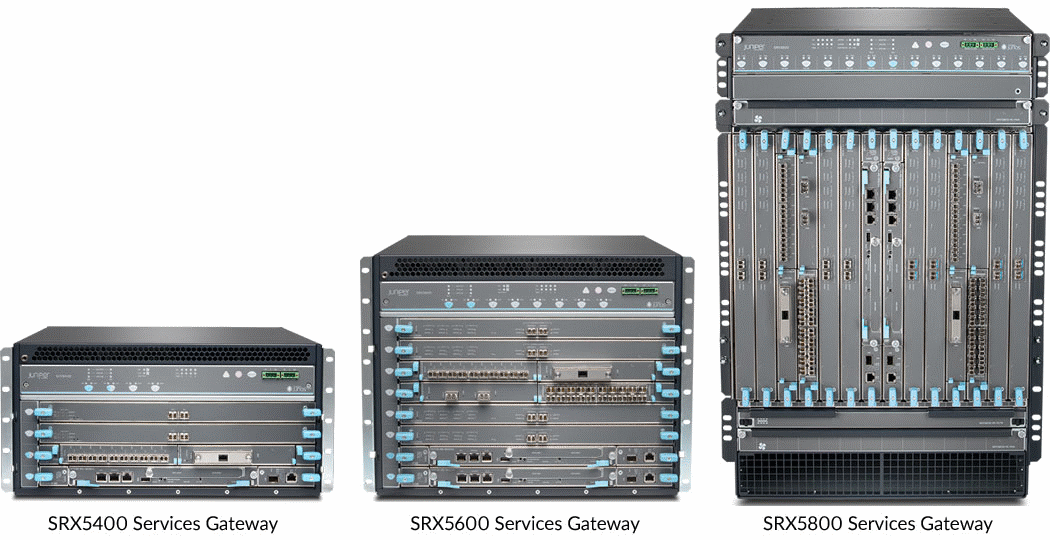

The Juniper Networks SRX5400, SRX5600, and SRX5800 are next-generation firewalls (NGFWs) that deliver industry-leading threat protection, high performance, six nines reliability and availability, scalability, and services integration. These devices are ideally suited for large enterprise, service provider, and public sector networks, including:

Large enterprise data centers
Cloud and hosting provider data centers
Mobile operator environments
Managed service providers
Core service provider infrastructures

The SRX5400, SRX5600, and SRX5800 firewalls are an integral part of the Juniper(R) Connected Security framework, which extends security to every point of connection on the network to safeguard applications, user, and infrastructure from advanced threats. Delivering the highest level of protection against exploits, malware, and command and control (C&C) communications, these platforms feature a carrier-grade next-generation firewall and advanced security services such as application security, intrusion prevention system (IPS), and integrated threat intelligence services.

SRX5800

The SRX5800 Firewall is the market-leading security solution supporting up to 3.36 Tbps firewall throughput and latency as low as 32 microseconds for the stateful firewall. The SRX5800 also supports 638 Gbps IPS and 338 million concurrent sessions. The SRX5800 is equipped with the full range of advanced security services and is ideally suited for securing large enterprise, hosted, or colocated data centers, service provider core and cloud provider infrastructures, and mobile operator environments. The massive performance, scalability, and flexibility of the SRX5800 make it ideal for densely consolidated processing environments, and the service density makes it ideal for cloud and managed service providers.

SRX5600

The SRX5600 Firewall uses the same SPCs and IOCs as the SRX5800 and can support up to 1.44 Tbps firewall throughput, 182 million concurrent sessions, and 245 Gbps IPS. The SRX5600 is ideally suited for securing enterprise data centers as well as aggregating various security solutions. The capability to support unique security policies per zone and its ability to scale with the growth of the network infrastructure make the SRX5600 an ideal deployment for consolidation of services in large enterprise, service provider, or mobile operator environments.

SRX5400

The SRX5400 Firewall uses the same SPCs and IOCs as the SRX5800 and can support up to 960 Gbps firewall throughput, 90 million concurrent sessions, and 172 Gbps IPS. The SRX5400 is a small footprint, high-performance firewall ideally suited for securing large enterprise campuses as well as data centers, either for edge or core security deployments. The ability to support unique security policies per zone and a compelling price/performance/footprint ratio make the SRX5400 an optimal solution for edge or data center services in large enterprise, service provider, or mobile operator environments.

Table 1. SRX5800 SRX5600 and SRX5400 Firewalls Performance Specifications

Model	SRX5400	SRX5600	SRX5800
Junos OS version tested	Junos OS 21.2	Junos OS 21.2	Junos OS 21.2
Firewall Performance, IMIX	960 Gbps	1.44 Tbps	3.36 Tbps
Maximum performance per chassis	960 Gbps	1440 Tbps	3.36 Tbps
Next-Generation Datacenter Firewall Performance2	136 Gbps	194 Gbps	504 Gbps
Secure Web Access Firewall Performance3	75 Gbps	107 Gbps	277 Gbps
Latency (stateful firewall)	~11µsec	~11µsec	~11µsec
IPsec VPN AES-256-GCM (IMIX)	188 Gbps	269 Gbps	699 Gbps
Maximum IPS performance	172 Gbps	245 Gbps	638 Gbps
Maximum concurrent sessions	91 Million	182 Million	338 Million
New sessions/second (sustained, tcp, 3way, firewall NAT)	1.7/1 Million	3.4/2 Million	6.3/4 Million
Maximum users supported	Unrestricted	Unrestricted	Unrestricted

Table 1. SRX5400 Firewall Specifications

Product Number	Description
Junos OS Software version tested	Junos OS 18.2R1-S2
Firewall performance (max)	960 Gbps
IPS performance	172 Gbps
VPN performance	188 Gbps
Maximum concurrent sessions	90 million
New Sessions/second (sustained, TCP, 3-way)	1.75 million
Maximum security policies	Unrestricted
Maximum security intelligence data feed entries in firewall rules database	Up to 1 million IP addresses; separate allocation (capacity) for URLs
Total Onboard Ports	2 IOC slots (see IOC options)
MACsec-capable Ports	N/A
PoE+ Ports	N/A
Mini PIM Slots	N/A
