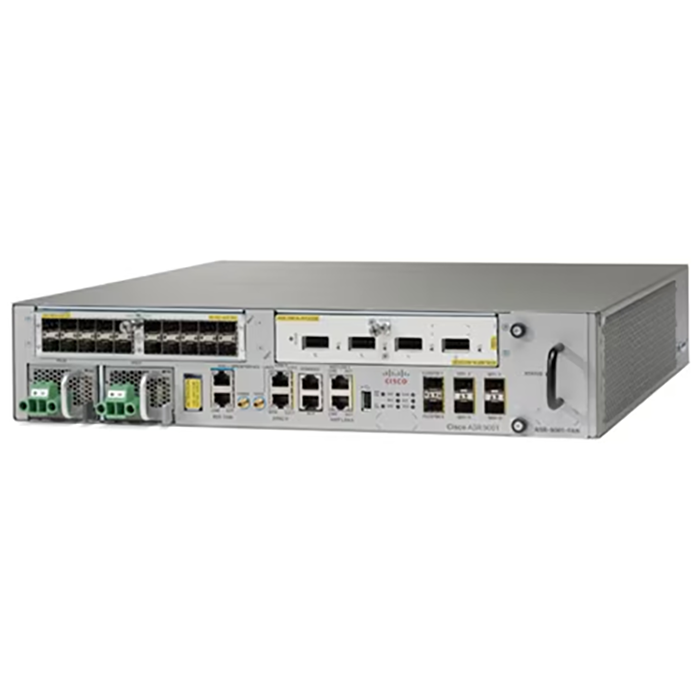

Part of the Cisco ASR 9000 Series, the Cisco ASR 9001 Router is a compact high-capacity Provider Edge (PE) router that delivers 120 Gbps of nonblocking, full-duplex fabric capacity in a Two-Rack-Unit (2RU) form factor. Based on the same Cisco IOS® XR software image as the other routers in the Cisco ASR 9000 Series, the Cisco ASR 9001 Router delivers the features and services found on the ASR 9000 Series platforms, allowing customers to standardize on the same Cisco IOS XR image. The Cisco ASR 9001 Router has an Integrated Route Switch Processor (RSP) and two modular bays that support 1 GE, 10 GE, and 40 GE Modular Port Adapters (MPAs). The base chassis has four integrated 10 GE Enhanced Small Form-Factor Pluggable (SFP+) ports, a GPS input for stratum-1 clocking, Building Integrated Timing Supply (BITS) ports, and management ports.
Cisco ASR 9000 Series Carrier Ethernet applications include business services such as Layer 2 and Layer 3 VPN (L2VPN and L3VPN), IPTV, Content Delivery Networks (CDNs), mobile backhaul transport networks, and Broadband Network Gateway (BNG). Features supported include Ethernet Services; L2VPN; IPv4, IPv6, and L3VPN; Layer 2 and Layer 3 multicast; IP over Dense Wavelength-Division Multiplexing (IPoDWDM), Synchronous Ethernet (SyncE), Ethernet Operations, Administration, and Maintenance (EOAM) and MPLS OAM, Layer 2 and Layer 3 Access Control Lists (ACLs), Hierarchical Quality of Service (HQoS), MPLS Traffic Engineering Fast Reroute (MPLS TE-FRR), Multichassis Link Aggregation (MC-LAG), Integrated Routing and Bridging (IRB) and Cisco Nonstop Forwarding (NSF) and Nonstop Routing (NSR).
Note:
— Site to Site IPSec VPN is not currently supported on the ASR 9001 platform.
— The integrated RSP has 8 GB RAM and is capable of holding several millions of routes, which makes the Cisco ASR 9001 Router useful as a dedicated route-reflector appliance.
Table 1. Cisco ASR 9001 Specifications
Category | Part Number or Specification |
Chassis | ASR 9001 |
Integrated interfaces | 4 x 10 GE SFP+ |
Modular port adapters | 20 x 1 GE, 2 x 10 GE, 4 x 10 GE, 1 x 40 GE |
Redundancy | Power supply redundancy |
Power supply part number | ●A9K-750W-AC ●A9K-750W-DC |
Physical specifications | ●Height: 3.472 inches (88.2 mm) ●Width: 17.42 inches (442 mm) ●Depth: 18.5 inches (470 mm) ●Weight of chassis: 30.2032 lbs (13.7 kg) ●Weight of chassis with two MPAs: 36.37623 lbs (16.5 kg) |
Power inputs | ●Worldwide ranging AC (90-265V; 50-60 Hz) ●Worldwide ranging DC (-40V to -72V) |
Power consumption | 425 watts typical, 525 watts maximum |
Environmental conditions | ●Operating temperature: 32 to 104°F (0 to 40°C) ●Storage temperature: -40 to 167°F (-40 to 75°C) ●Relative humidity: 10 to 90%, noncondensing ●Regulatory compliance |
Environmental Specifications | |
Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
Operating temperature | 23 to 131ºF (-5 to 55ºC) |
Operating humidity (nominal) (relative humidity) | 10 to 85% |
Operating humidity | 5 to 90% |
Storage temperature | -40 to 158ºF (-40 to 70ºC) |
Storage (relative humidity) | 5 to 95% |
Operating altitude | 1800m |
Air flow | Side to side |
Compliance | |
Network Equipment Building Standards (NEBS) | Cisco ASR 9001 is designed to meet: ●SR-3580: NEBS Criteria Levels (Level 3) ●GR-1089-CORE: NEBS EMC and Safety ●GR-63-CORE: NEBS Physical Protection ●VZ.TPR.9205: Verizon TEEER |
ETSI standards | Cisco ASR 9001 is designed to meet (qualification in progress): ●EN300 386: Telecommunications Network Equipment (EMC) ●ETSI 300 019 Storage Class 1.1 ●ETSI 300 019 Transportation Class 2.3 ●ETSI 300 019 Stationary Use Class 3.1 ●EN55022: Information Technology Equipment (Emissions) ●EN55024: Information Technology Equipment (Immunity) ●EN50082-1/EN-61000-6-1: Generic Immunity Standard |
EMC standards | Cisco ASR 9001 is designed to meet: ●FCC Class A ●ICES 003 Class A ●AS/NZS 3548 Class A ●CISPR 22 (EN55022) Class A ●VCCI Class A ●BSMI Class A ●IEC/EN 61000-3-2: Power Line Harmonics ●IEC/EN 61000-3-3: Voltage Fluctuations and Flicker ●EN 50121-4: Railway EMC |
Immunity | Cisco ASR 9001 is designed to meet: ●IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ●IEC/EN-61000-4-3: Radiated Immunity (10V/m) ●IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ●IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ●IEC/EN-61000-4-5: Signal Ports (1kV) ●IEC/EN-61000-4-5: Surge DC Port (1kV) ●IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ●IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ●IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations ●EN 50121-4: Railway EMC |
Safety | Cisco ASR 9001 is designed to meet: ●UL/CSA/IEC/EN 60950-1 ●IEC/EN 60825 Laser Safety ●ACA TS001 ●AS/NZS 60950 ●FDA: Code of Federal Regulations Laser Safety |
Table 1. Ordering information for the Cisco ASR 9001 Router
Part Number | Product Description | Supported Software Release |
ASR-9001 | ASR 9001 Router with 4 x 10 GE | Cisco IOS XR Software Release 4.2.1 or later |
A9K-750W-AC | AC Power Entry module | Cisco IOS XR Software Release 4.2.1 or later |
A9K-750W-DC | DC Power Entry module | Cisco IOS XR Software Release 4.2.1 or later |
A9K-MPA-20x1GE | 20 x 1 GE Modular Port Adapter | Cisco IOS XR Software Release 4.2.1 or later |
A9K-MPA-2x10GE | 2 x 10 GE Modular Port Adapter | Cisco IOS XR Software Release 4.2.1 or later |
A9K-MPA-4x10GE | 4 x 10 GE Modular Port Adapter | Cisco IOS XR Software Release 4.2.1 or later |
A9K-MPA-1x40GE | 1 x 40 GE Modular Port Adapter | Cisco IOS XR Software Release 4.2.3 or later |
