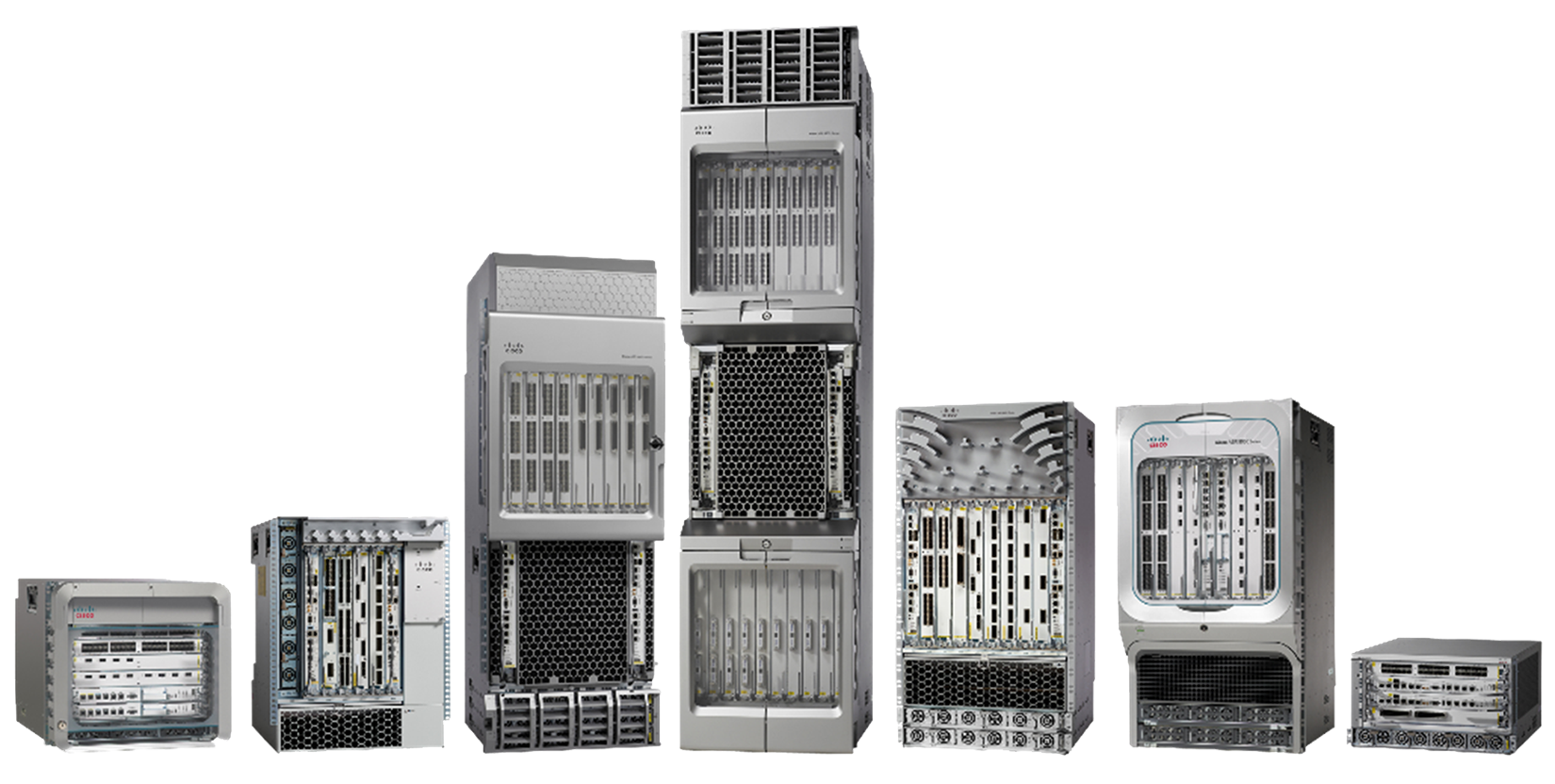

The Cisco ASR 9000 Series Aggregation Services Routers provide unsurpassed speeds, up through 400 Gigabit Ethernet, with scale and high density. The Cisco ASR 9000 and ASR 9900 Series Routers provide flexible options for high density 1 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet and 400 Gigabit Ethernet ports without the need for a complete chassis replacement. These line cards, offered in base and extended-scale configurations, are complemented by the nonblocking fabric (on the RSP for the Cisco ASR 9006, ASR 9010, ASR 9906, ASR 9910 and ASR 9904 Routers and on separate fabric cards for the Cisco ASR 9906, ASR 9910, ASR 9912 and ASR 9922 Routers), and by the innovative backplane, thermal, and power infrastructure on the chassis.
Cisco ASR 9006 and ASR 9010 systems are designed to the same high standards of performance and reliability; they feature the same power and thermal innovations; and they can share the line cards, PEMs, and power supplies for maximum flexibility in your network planning. The RSPs can be shared between the Cisco ASR 9010, ASR 9006, ASR 9910 and ASR 9906 and ASR 9904 chassis; the Cisco ASR 9922 and ASR 9912 chassis come with their own route processors and up to seven fabric cards. The Cisco ASR 9910 and ASR 9906 each come with their own chassis specific five fabric cards.
Table 1. Cisco ASR 9006 and ASR 9010 Specifications
Specification | Model | |
Cisco ASR 9006 | Cisco ASR 9010 | |
Categories | ||
Physical specifications | Height: 17.50 in. (444.5 mm) (10 RU) Width: 17.38 in. (441.45 mm) Depth: ●With doors: 29.05 in. (737.9 mm) ●Without doors: 29.05 in. (737.9 mm) Weight: ●89.55 lb (40.7 kg) (chassis with PEM) ●150 lb (65.91 kg) (fully loaded, excluding line cards and power modules) – RSP, two v2 FAN trays, PEMs | Height: 36.75 in. (933.45 mm) (21 RU) Width: 17.38 in. (441.45 mm) Depth: ●With doors: 29.03 in. (737.4 mm) ●Without doors: 28.24 in. (717.3 mm) Weight: ●155.6 lb (70.73 kg) (chassis with PEM) ●231.6 lb (105.27 kg) (fully loaded, excluding line cards and power modules) – RSP, two v2 fan trays, PEMs |
Slot orientation | Horizontal | Vertical |
Cisco ASR 9000 Series RSP | Dual redundant RSPs with integrated fabric in 2 slots | Dual redundant RSPs with integrated fabric in 2 slots |
Cisco ASR 9000 Series line cards | 4 line-card slots | 8 line-card slots |
“Commons” components | 2 RSPs 2 fan trays 1 PEM (either DC or AC) 1 fan filter | 2 RSPs 2 fan trays 2 PEMs (either DC or AC) 1 fan filter |
Reliability and availability | Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy | Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy |
Rack mounting | 19-in. default 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation | 19-in. default 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation |
Cabinet mounting | Yes Note: Doors not recommended in enclosed cabinets | Yes Note: Doors not recommended in enclosed cabinets |
Wall mounting | No | No |
Airflow | Right-to-back, Front-to-back with baffle | Front-to-back |
Performance | ||
Fabric | One per RSP: ●Active/active nonblocking operation mode in dual-RSP redundant configuration ●Fully redundant in dual-RSP redundant configuration ●Built-in service-intelligence and traffic-prioritization capability | One per RSP: ●Active/active nonblocking operation mode in dual-RSP redundant configuration ●Fully redundant in dual-RSP redundant configuration ●Built-in service-intelligence and traffic-prioritization capability |
Thermal | Two fan trays: ●6 high-efficiency fans per tray ●Variable-speed fans for optimal thermal performance ●No single point of failure | Two fan trays: ●12 high-efficiency fans per tray ●Variable-speed fans for optimal thermal performance ●No single point of failure |
Power | ||
Modularity | Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: ●3 kW AC power module ●2.1 kW DC power module Note: Mixing of AC and DC modules is not supported | Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: ●6 kW and 3 kW AC power modules ●4.4 kW and 2.1 kW DC power modules Note: Mixing of AC and DC modules is not supported |
Redundancy | ●AC: N+N redundancy ●DC: N+1 redundancy ●Power module redundancy ●A/B Feed redundancy | ●AC: N+N redundancy ●DC: N+1 redundancy ●Power module redundancy ●A/B Feed redundancy ●PEM redundancy |
Power zones | No power zone restrictions Fully load-sharing power infrastructure | No power zone restrictions Fully load-sharing power infrastructure |
Power input | Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum) | Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum) |
Power-module airflow | Front-to-back | Front-to-back |
Table 1. Chassis Hardware ordering information for the ASR 9000 Series Modular Routers
Part number | Feature description |
ASR-9922 | ASR 9922 20 Line Card Slot Chassis, 44 RU |
ASR-9912 | ASR 9912 10 Line Card Slot Chassis, 30 RU |
ASR-9910 | ASR 9910 8 Line Card Slot Chassis, 21 RU |
ASR-9906 | ASR 9906 4 Line Card Slot Chassis, 14 RU |
ASR-9904 | ASR 9904 2 Line Card Slot Chassis, 6 RU |
ASR-9010-SYS | ASR 9010 8 Line Card Slot Chassis, 21 RU |
ASR-9006-SYS | ASR 9006 4 Line Card Slot Chassis, 10 RU |
ASR-9010-AC-V2 | ASR 9010 AC Chassis with PEM Version 2 |
ASR-9010-DC-V2 | ASR 9010 DC Chassis with PEM Version 2 |
ASR-9006-AC-V2 | ASR 9006 AC Chassis with PEM Version 2 |
ASR-9006-DC-V2 | ASR 9006 DC Chassis with PEM Version 2 |
