The Cisco ASR 920 Series Aggregation Services Router (ASR) is a full-featured converged access platform designed for the cost-effective delivery of wireline and wireless services. These temperature hardened, high-throughput, small form factor, low-power-consumption routers are optimized for mobile backhaul and business applications. The Cisco ASR 920 Router provides a comprehensive and scalable feature set of Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services in a compact package. It also enables service providers to deploy Multiprotocol Label Switching (MPLS)-based VPN services from within the access layer.

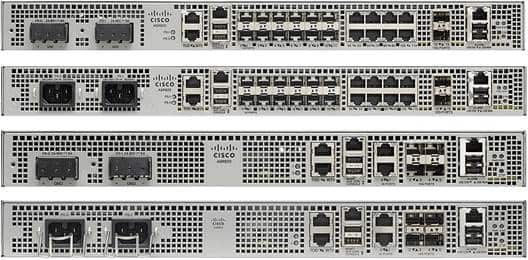

The Cisco ASR 920 Series has multiple models with different port densities, including the following models that feature lower port densities:
The Cisco ASR 920 Series offers key Carrier Ethernet features that simplify network operation; you can use them for premium services with enhanced service-level agreements (SLAs). An optional “pay-as-you-grow” feature and service activation model makes the Cisco ASR 920 Series flexible and cost-effective.
Table 1. Cisco ASR-920-12CZ and Cisco ASR-920-4SZ Router Specifications
Specification | ASR-920-12CZ-A/ASR-920-12CZ-D | ASR-920-4SZ-A/ASR-920-4SZ-D |
DimensionWidth x Depth x Height | 17.5 x 9.25 x 1.75 inches | 15.5 x 9.25 x 1.75 inches |
Weight | ASR-920-12CZ-A: 3.80 kg ASR-920-12CZ-D: 3.54 kg | ASR-920-4SZ-A: 3.50 kg ASR-920-4SZ-D: 3.22 kg |
Rack Unit | One RU | One RU |
Airflow | Front to back | Front to back |
Cable access | Front cable access | Front cable access |
System throughput | 32 Gbps | 42 Gbps |
Power Supply | ||
Modularity | None | None |
Redundant | Yes | Yes |
AC | Yes | Yes |
Power Specification | 115 W | 105 W |
DC | Yes | Yes |
Power Specification | 110 W | 105 W |
Operating Temperature | –40º C to 70º C Note —When using Smart SFPs, the systems should not operate beyond 40º C.
Note —The temperature range will vary for supported SFP/SFP+ installed on the router. See the corresponding SFP/SFP+ documentation for more details. | –40º C to 70º C Note —When using Smart SFPs, the systems should not operate beyond 40º C.
Note —The temperature range will vary for supported SFP/SFP+ installed on the router. See the corresponding SFP/SFP+ documentation for more details. |
Alarms | —4 alarm dry contact inputs (normally open) —LED indicators for critical, major and minor alarms | —4 alarm dry contact inputs (normally open) —LED indicators for critical, major and minor alarms |
TDM Support | None | None |
Mounting option | —Front or rear rail 19 inches or 23 inches —ETSI 300 mm cabinet —Wall Mount (with only side mount option). Note For more information, see Wall Mounting the Cisco ASR 920 Series Router, page 3-9 . | —Front or rear rail 19 inches or 23 inches —ETSI 300 mm cabinet —Wall Mount (with only side mount option) Note For more information, see Wall Mounting the Cisco ASR 920 Series Router, page 3-9 . |
Port Configuration | 12x1G and 2x10G/1G ports | 2x1G and 4x10G/1G ports |
Port Numbering | 4x1G SFP – Port [0:3] 8x1G Combo – Port [4:11] 2x10G – Port [12-13] | 2x1G Copper – Port [0:1] 4x10G – Port [2-5] |
Combo Ports | Ports 4 to 11 are combo ports | No combo ports |
Copper Port LEDs | Link/Activity/Duplex LED indication | Link/Activity/Duplex LED indication |
Temperature Sensors | Four temperature sensors | Three temperature sensors |
BITS/ToD | External ports for BITS/TOD | External ports for BITS/TOD |
Table 1. Cisco ASR-920-12CZ and Cisco ASR-920-4SZ Router Ordering information
Part Number | Description |
Cisco ASR 920 Router | |
ASR-920-12CZ-A | Cisco ASR920 Series – 12GE and 2-10GE – AC model |
ASR-920-12CZ-D | Cisco ASR920 Series – 12GE and 2-10GE – DC model |
ASR-920-4SZ-A | Cisco ASR920 Series – 2GE and 4-10GE – AC model |
ASR-920-4SZ-D | Cisco ASR920 Series – 2GE and 4-10GE – DC model |
ASR 920 Accessories | |
A920-RCKMT-ETSI | ETSI Rack mount Option for the Cisco ASR 920 |
A920-RCKMT-19 | EIA 19” Rack mount Option for the Cisco ASR 920 |
A920-RCKMT-23 | EIA 23” Rack mount Option for the Cisco ASR 920 |
A920-RCKMT-C-ETSI | ETSI Rack mount Option for the Cisco ASR 920 Compact |
A920-RCKMT-C-19 | EIA 19” Rack mount Option for the Cisco ASR 920 Compact |
A920-RCKMT-C-23 | EIA 23” Rack mount Option for the Cisco ASR 920 Compact |
Gigabit Ethernet SFP’s | |
GLC-SX-MM-RGD | 1000Mbps Multi-Mode Rugged SFP |
GLC-LX-SM-RGD | 1000Mbps Single Mode Rugged SFP |
GLC-ZX-SM-RGD | 1000BASE-ZX Single Mode RuggedSFP |
GLC-BX-D= | 1000BASE-BX SFP, 1490nm |
GLC-BX-U= | 1000BASE-BX SFP, 1310nm |
GLC-EX-SMD | GE SFP, LC Connector, EX transceiver |
GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
GLC-LH-SMD | 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
GLC-ZX-SMD | 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
SFP-GE-T | 1000BASE-T SFP (NEBS 3 ESD) |
SFP-GE-L | 1000BASE-LX/LH SFP (DOM) |
SFP-GE-S | 1000BASE-SX SFP (DOM) |
SFP-GE-Z | 1000BASE-ZX Gigabit Ethernet SFP (DOM) |
GLC-BX40-U-I | 1000BASE-BX40 SFP, 1310NM |
GLC-BX40-D-I | 1000BASE-BX40 SFP, 1550NM |
GLC-BX40-DA-I | 1000BASE-BX40 SFP, 1490NM |
GLC-BX80-U-I | 1000BASE-BX80 SFP, 1490NM |
GLC-BX80-D-I | 1000BASE-BX80 SFP, 1570NM |
Gigabit Ethernet Colored SFP’s | |
CWDM-SFP-xxxx= | CWDM “xxxx” NM SFP Gigabit Ethernet and 1G/2G FC |
DWDM-SFP-xxxx= | DWDM SFP xxxx.xx nm SFP (100 GHz ITU grid) |
Colored TenGigabit Ethernet SFP’s | |
DWDM-SFP10G-xx.xx | DWDM SFP+ |
CWDM-SFP10G-xxxx | 8 wavelengths CWDM optics SFP+ |
Ten Gigabit Ethernet SFP+ | |
SFP-10G-SR | 10GBASE-SR SFP Module |
SFP-10G-LR | 10GBASE-LR SFP Module |
SFP-10G-LRM | 10GBASE-LRM SFP Module |
SFP-H10GB-CUxM | 10GBASE-CU SFP+ Cable x Meter |
SFP-10G-ER | 10GBASE-ER SFP Module |
SFP-10G-ZR | Cisco 10GBASE-ZR SFP10G Module for SMF |
SFP-10G-SR-X | 10GBASE-SR SFP Module for Extended Temp range |
SFP-10G-LR-X | 10GBASE-LR SFP Module for Extended Temp range |
SFP-10G-BXD-I | SFP+ Bidirectional for 10km, downstream |
SFP-10G-BXU-I | SFP+ Bidirectional for 10km, upstream |
SFP-10G-BX40D-I | SFP+ Bidirectional for 40km, downstream |
SFP-10G-BX40U-I | SFP+ Bidirectional for 40km, upstream |
