The Cisco ASR 920 Series Aggregation Services Router is a full-featured converged access platform designed for the cost-effective delivery of wireline and wireless services. These temperature-hardened, high-throughput, small-form-factor, low-power-consumption routers are optimized for mobile backhaul and business applications. ASR 920 routers provide a comprehensive and scalable feature set, supporting both Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services in a compact package. They also allow service providers to deploy Multiprotocol Label Switching (MPLS)-based VPN services from within the access layer.
ASR 920 series router offers key Carrier Ethernet features that simplify network operation. You can use them for premium services with enhanced service-level agreements (SLAs). And an optional service-activation model supports incremental growth and makes these routers flexible and cost-effective.

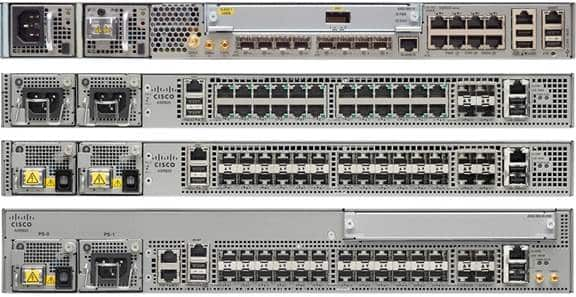

ASR 920 series router offers multiple models with different port densities and interfaces:
Table 1. Cisco ASR 920 Series High-Port-Density Models Specifications
Description | Cisco ASR 920 Router |
Physical specifications1 (H x W x D) | ASR-920-12SZ-IM/ASR-920-12SZ-IM-CC: 1.73 x 17.5 x 11.28 in. (44 x 444.5 x 286.54 mm), 1RU ASR-920-24SZ-M: 1.72 x 17.5 x 10 in. (43.7 x 444.5 x 255 mm), 1RU ASR-920-24TZ-M: 1.72 x 17.5 x 10 in. (43.7 x 444.5 x 255 mm), 1RU ASR-920-24SZ-IM: 2.6 x 17.5 x 10.6 in. (66 x 444.5 x 270 mm), 1.5RU (with IM) |
Weight | ASR-920-12SZ-IM/ASR-920-12SZ-IM-CC: 9.25 lb (4.2 kg) – empty chassis ASR-920-24TZ-M: 8.3 lb (3.8 kg) – empty chassis ASR-920-24SZ-M: 8.5 lb (3.9kg) – empty chassis ASR-920-24SZ-IM: 10.3 lb (4.7kg) – empty chassis ASR-920-12SZ-IM: 13.44 lb (6.1 kg) with two AC PSU and IM card ASR-920-24TZ-M: 10.5 lb (4.8 kg) with two AC PSU ASR-920-24SZ-M: 10.5 lb (4.8 kg) with two AC PSU ASR-920-24SZ-IM: 14.1 lb (6.4 kg) with two AC PSU and IM card |
Rack mounts | ETSI rack-mount kit 19-in. rack-mount kit 23-in. rack-mount kit |
Air flow | Front-to-Back airflow (ASR-920-12SZ-IM/ASR-920-12SZ-IM-CC, ASR-920-24TZ-M, ASR-920-24SZ-M) Front-to-Back & Side-to-Back airflow (ASR-920-24SZ-IM) |
Power supplies | 2 power supplies (AC or DC) |
Mean time between failures (MTBF) (hours) | ASR-920-12SZ-IM/ASR-920-12SZ-IM-CC: 407,230 ASR-920-24TZ-M: 582,610 ASR-920-24SZ-M: 546,260 ASR-920-24SZ-IM: 471,530 A920-PWR400-A: 356,809 A920-PWR400-D: 331,879 ASR-920-FAN-TRAY: 2,811,680 ASR-920-FAN-F: 2,581,770 ASR-920-FAN-M: 2,681,720 ASR-920-PWR-A: 1,598,000 ASR-920-PWR-D: 1,129,417 |
Table 2. Power Specifications
Description | Cisco ASR 920 Router |
Power consumption | ASR-920-12SZ-IM/ASR-920-12SZ-IM-CC: Max 150W, Typical: 130W (without PoE) ASR-920-24TZ-M: Max 130W, Typical: 100W ASR-920-24SZ-M: Max 145W, Typical: 110W ASR-920-24SZ-IM: Max 180W, Typical: 130W |
AC input voltage and frequency | Voltage range: 85V AC to 264V AC, nominal 100V AC to 240V AC Frequency Range: 47 to 63 Hz, nominal 50 to 60 Hz |
DC input voltage | Voltage range: -18 to -32 VDC or -36 to -72 VDC, nominal: -24 VDC/-48 VDC Voltage range (ASR-920-12SZ-IM/ASR-920-12SZ-IM-CC): -18 VDC to -32 VDC or -40 VDC to -72 VDC nominal -24VDC/-48VDC/-60VDC |
Table 3. Environmental Specifications
Description | Cisco ASR 920 Router |
Operating environment and altitude1 | -40 to 70ºC, up to 1,000 feet (300m) -40 to 65ºC, up to 6,000 feet (1800m) -40 to 55ºC, up to 13,000 feet (4000m) |
Relative humidity | 5 to 95 percent, noncondensing |
Acoustic noise2 | Acoustic noise peak operation maximum 55 dBA (59 dBA for ASR-920-12SZ-IM/ASR-920-12SZ-IM-CC) sound pressure level, bystander position for rack-mount products at 20ºC operation as measured by ISO 7779 NAIS noise measurement test standard. |
Acoustic noise peak operation compliant to the Network Equipment Building Standards (NEBS) GR-63-Core Issue 3 sound power level of 78 dB at 27ºC operation as measured by the ANSI S12.10/ISO 7779 NAIS noise measurement test standard. | |
Storage environment | Temperature: -40 to 70ºC altitude: 15,000 feet (4570m) |
Seismic | Zone 4 |
Table 1. Cisco ASR 920 Series High-Port-Density Models Ordering information
Part Number | Description |
ASR-920-12SZ-IM | Cisco ASR920 Series – 12GE and 4-10GE, 1 IM slot |
ASR-920-12SZ-IM-CC | Cisco ASR920 Conformal Coated – 12GE and 4-10GE, 1 IM slot |
ASR-920-24SZ-M | Cisco ASR920 Series – 24GE Fiber and 4-10GE – Modular PSU |
ASR-920-24SZ-IM | Cisco ASR920 Series – 24GE and 4-10GE – Modular PSU and IM |
ASR-920-24TZ-M | Cisco ASR920 Series – 24GE Copper and 4-10GE – Modular PSU |
ASR-920-FAN-TRAY | Cisco ASR 920 Fan Tray |
A920-FAN-TRAY-CC | Cisco ASR 920 Fan Tray Conformal Coated |
ASR-920-FAN-F | ASR920 Fan for Fixed Chassis |
ASR-920-FAN-M | ASR920 Fan for Modular Chassis |
A920-PWR400-A | Cisco ASR 920 400W AC PSU |
A920-PWR400-D | Cisco ASR 920 400W DC PSU |
ASR-920-PWR-A | ASR920 AC Power Supply |
ASR-920-PWR-D | ASR920 DC Power Supply |
ASR920-PWR-BLNK | ASR 920 Power Supply Blank Cover |
ASR920-PWR-BLANK | ASR920 Power Supply Blank Cover |
A900-IMA-BLANK | ASR 900 Interface Module Type-A Blank Cover |
