Cisco ASR 900 Series Aggregation Services Routers are full-featured, modular aggregation platforms. They’re designed for the cost-effective delivery of converged mobile, residential, and business services. You get redundancy, a shallow depth, low power consumption, and high service scale in routers packed with useful features and optimized for small aggregation and remote Point-of-Presence (POP) applications.

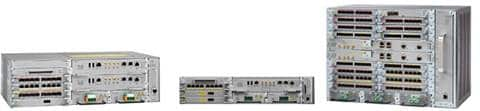

The Cisco ASR 902 Router, Cisco ASR 903 Router, and Cisco ASR 907/914 Router provide a comprehensive and scalable feature set, supporting Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services in compact designs.
Broadband aggregation
The modular Cisco ASR 900 Series router supports broadband aggregation for delivering “any-play” services (voice, video, data, and mobility). Designed to support thousands of subscribers, the ASR 900 Series includes Quality of Service (QoS) features that allow the routers to scale to a large number of queues per device. Combined with a highly granular, three-level hierarchical QoS algorithm, a large number of queues can result in a greatly enhanced broadband user experience. This full-featured Layer 2 and Layer 3 router supports a variety of broadband applications, including IPTV and Video on Demand (VoD), enhancing and extending the Cisco Evolved Programmable Network architecture.
Preaggregation for mobile applications
Deployed as a preaggregation platform for mobile backhaul, the ASR 900 Series router can aggregate cell sites and use Multiprotocol Label Switching (MPLS) as a transport for Radio Access Network (RAN) backhaul traffic. It also provides the timing services required in today’s converged access networks by offering integrated support for the Building Integrated Timing Supply (BITS), 10 MHz, 1 Pulse Per Second (1PPS), and Time Of Day (TOD) interfaces. The router also supports Synchronous Ethernet (SyncE) and IEEE-1588, and it can act as the source for network clocking for Time-Division Multiplexing (TDM), Synchronous Digital Hierarchy (SDH), Synchronous Optical Network (SONET), Synchronous Ethernet (SyncE), and Global Positioning System (GPS) interfaces. In addition, the ASR 900 Series router can be deployed in small and rugged environments, due to its shallow depth and qualification for extended temperature ranges.
Metro Ethernet aggregation
The ASR 900 Series router is built to meet service provider requirements for Carrier Ethernet aggregation. It is optimized for remote central office and smaller aggregation sites where a full-featured, modular, small-footprint, and fully redundant aggregation platform is needed. This router offers service flexibility and delivers.
Table 1. Cisco ASR 900 Series router system specifications
Description | Cisco ASR 902 Router | Cisco ASR 903 Router | Cisco ASR 907 Router |
Physical specifications1 | Height: 3.56 in. (90.424 mm) – 2RU Width: 17.44 in. (443 mm) Depth: 9.22 in. (234.2 mm) Weight: ●24.04 lb (10.9 kg) with one RSP, two DC power supplies, and loaded with a typical combination of interface module cards ●9.48 lb (4.3 kg) for an empty chassis ●30 lb shipment weight | Height: 5.22 in. (132.6 mm) – 3RU Width: 17.44 in. (443 mm) Depth: 9.22 in. (234.2 mm) Weight: ●34.17 lb (15.5 kg) with two RSPs, two DC power supplies, and loaded with a typical combination of interface module cards ●11.2 lb (5.1 kg) for an empty chassis ●38 lb shipment weight | Height: 12.22 in. (310.38 mm) – 7RU Width: 17.44 in. (443 mm) Depth: 9.22 in. (234.2 mm) Weight: ●69.32 lb (31.4 kg) with two RSPs, two DC power supplies, and loaded with a typical combination of interface module cards ●34.9 lb (15.9 kg) for an empty chassis ●58 lb shipment weight |
Rack mounts | ETSI rack mount kit 19 in. rack mount kit 23 in. rack mount kit | ||
Power supplies | 2 power supply slots | 2 power supply slots | 3 power supply slots2, 3 |
Interface modules | 4 interface module slots | 6 interface module slots | 16 interface module slots |
Route switch processors | 1 RSP slot | 2 RSP slots | 2 RSP slots |
Fan tray | 1 fan tray with fan redundancy 2 dry contact input alarms on the fan tray | 1 fan tray with fan redundancy 4 dry contact input alarms on the fan tray | |
Air flow | Side-to-side airflow; inlet on the right side, outlet on the left side when looking from the front | ||
Power supplies | Up to 2 power supplies (AC or DC) Modules operate in load-share mode System can operate on a single power supply and supports mixing of one AC and one DC power supplies in a single chassis. | Up to 3 power supplies (AC or DC) Modules operate in load share mode System can operate on a single power supply and supports mixing of AC and DC power supplies in a single chassis. | |
Chassis MTBF at 40ºC operating temperature | 900,000 hours | 900,000 hours | 1,585,000 hours |
Fan Tray MTBF at 40ºC operating temperature | 600,000 hours | 600,000 hours | 1,329,000 hours |
Table 1. Cisco ASR 900 Series routers Ordering information
Part Number | Description |
ASR 902 System Components | |
ASR-902 | ASR 902 Router Chassis |
ASR-902= | ASR 902 Router Chassis, Spare |
A902-FAN-E | ASR 902 Enhanced FAN Tray with FAN Filter Slot |
A902-FAN-E= | ASR 902 Enhanced FAN Tray with FAN Filter Slot, Spare |
A902-FAN-F | ASR 902 FAN Tray Filter |
A902-FAN-F= | ASR 902 FAN Tray Filter, Spare |
A902-FAN-F-B= | ASR 902 FAN Tray Filter Blank Panel, Spare |
A902-CAB-BRACKET= | ASR 902 Cable Guide Bracket, Spare |
A902-RCKMNT-ETSI= | ETSI Rack Mount Option for the Cisco ASR 902, Spare |
A902-RCKMNT-19IN= | EIA 19in Rack Mount Option for the Cisco ASR 902, Spare |
ASR 903 System Components | |
ASR-903 | ASR 903 Router Chassis |
ASR-903= | ASR 903 Router Chassis, Spare |
A903-FAN | ASR 903 FAN Tray |
A903-FAN= | ASR 903 FAN Tray, Spare |
A903-FAN-E | ASR 903 Enhanced FAN Tray with FAN Filter Slot |
A903-FAN-E= | ASR 903 Enhanced FAN Tray with FAN Filter Slot, Spare |
A903-FAN-F | ASR 903 FAN Tray Filter |
A903-FAN-F= | ASR 903 FAN Tray Filter, Spare |
A903-FAN-F-B= | ASR 903 FAN Tray Filter Blank Panel, Spare |
A903-RCKMNT-ETSI= | ETSI Rack Mount Option for the Cisco ASR 903, Spare |
A903-RCKMNT-19IN= | EIA 19in Rack Mount Option for the Cisco ASR 903, Spare |
A903-CAB-GUIDE= | ASR 903 Cable Guide Bracket, Spare |
A903-CAB-BRACKET= | ASR 903 Cable Guide Bracket Option, Spare |
ASR 907 System Components | |
ASR-907 | ASR 907 Router Chassis |
ASR-907= | ASR 907 Router Chassis, Spare |
A907-FAN-E | ASR 907 Enhanced FAN Tray with FAN Filter Slot |
A907-FAN-E= | ASR 907 Enhanced FAN Tray with FAN Filter Slot, Spare |
A907-FAN-F= | ASR 907 FAN Tray Filter, Spare |
A907-FAN-F-B= | ASR 907 FAN Tray Filter Blank Panel, Spare |
A907-RCKMNT-ETSI= | ETSI Rack Mount Option for the Cisco ASR 907, Spare |
A907-RCKMNT-19IN= | EIA 19in Rack Mount Option for the Cisco ASR 907, Spare |
A907-CAB-BRACKET= | ASR 907 Cable Guide Bracket, Spare |
ASR 900 Common Equipment | |
A900-PWR550-A | ASR 900 550W AC Power Supply |
A900-PWR550-A= | ASR 900 550W AC Power Supply, Spare |
A900-PWR550-D-E | ASR 900 550W DC Power Supply With Enhanced Power Connector |
A900-PWR550-D-E= | ASR 900 550W DC Power Supply With Enhanced Power Connector, Spare |
A900-PWR1200-A | ASR 900 1200W AC Power Supply |
A900-PWR1200-A= | ASR 900 1200W AC Power Supply, Spare |
A900-PWR1200-D | ASR 900 1200W DC Power Supply |
A900-PWR1200-D= | ASR 900 1200W DC Power Supply, Spare |
A900-PWR-BLANK= | ASR 900 Power Supply Blank Cover, Spare |
A900-RSPA-BLANK= | ASR 900 Route Switch Processor Type-A Blank Cover, Spare |
A9XX-RSPB-BLANK= | ASR 900 Route Switch Processor Type-B Blank Cover, Spare |
A900-IMA-BLANK= | ASR 900 Interface Module Type-A Blank Cover, Spare |
A900-IMA-BLNK-DEF= | ASR 900 Interface Module Type-A Blank Cover with deflector, Spare |
