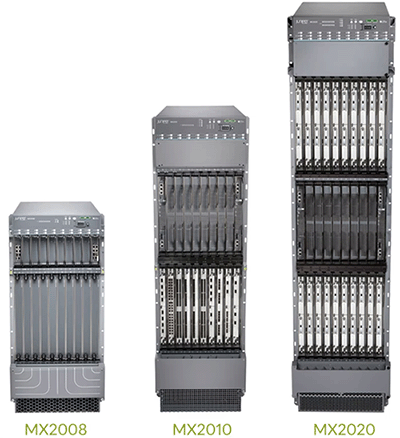

Juniper Networks MX2000 line of Universal Routing Platforms—consisting of the 80 Tbps-capable MX2020, the 40 Tbps-capable MX2010, and the 16 Tbps-capable MX2008—enables network operators to confidently build the best cloud-grade core and edge networks across residential, mobile, business, and cloud/hosting markets.
Significantly, the MX2000 platforms run the same Juniper Networks Junos OS as the entire MX Series universal routing platform portfolio, ensuring complete feature consistency and a common operational and management framework. This consistency reduces the cost, risk, and complexity of network evolution, helping current MX Series customers rapidly qualify and deploy the MX2000 routers.
Switch Fabric Boards (SFBs) create a highly scalable and resilient “all-active” centralized switch fabric that delivers up to 4 Tbps of full-duplex switching capacity to each MPC slot in an MX2000 router.
Dual redundant Control Board and Routing Engines (CB-REs) run the 64-bit Junos OS and support routing protocol processing, router interface control, and control plane functions such as chassis component, system management, and user access to the router. These processes run on top of a kernel that interacts with the Packet Forwarding Engine (PFE) on Modular Port Concentrators (MPCs) via dedicated high-bandwidth management channels, providing a clean separation of the control and forwarding planes.
The MX2000 power and thermal subsystems use advanced technology to optimize power efficiency without sacrificing scale or features. The power subsystem has a highly resilient architecture for full power supply and power cable feed redundancy. MX2000 routers are available with -48 V DC or AC power (in Delta or Wye 3-phase configuration) along with HVDC and HVAC power, allowing power to be added to the rack as needed.
Junos is a reliable, high-performance, modular network operating system that is supported across all of Juniper Networks physical and virtual routing, switching, and security platforms, reducing the cost, complexity, and resources required to implement and maintain the network. With secure programming interfaces, the Juniper Extension Toolkit and versatile scripting support, and integration with popular orchestration frameworks, Junos OS offers flexible options for continuous delivery and DevOps style management that helps service providers of all types unlock more value from the network.
Table 1. MX2010 Specifications
Product Number | Description |
System capacity | 40 Tbps |
Switch fabric capacity per slot | 4 Tbps |
DPCs and/or MPCs per chassis | 10 (MPC only) |
LMICs and REs per chassis | N/A |
Chassis per rack | 1 |
Dimensions (W x H x D) | 19.0 x 59.50 x 36.20 in (48.26 x 151.13 x 91.95 cm) |
Maximum weight | 1,000 lbs / 453.6 kg |
Mounting | Four-post rack |
Power options | AC/DC: -40 to -72 V DC |
Operating temperature | 32° to 115° F (0° to 46° C) at sea level |
Humidity | 5 to 90 percent noncondensing |
Altitude | No performance degradation to 13,000 ft/4000 m |
Table 1. MX2020, MX2010 and MX2008 Ordering Information
Product Number | Description |
Premium and Base Units, Spares | |
MX2020-BASE-AC | 20 slot MX2020 chassis, base bundle with 1 Routing Engine, SFBs, fan trays, AC power |
MX2020-BASE-DC | 20 slot MX2020 chassis, base bundle with 1 Routing Engine, SFBs, fan trays, DC power |
MX2010-BASE-AC | 10 slot MX2010 chassis, base bundle with 1 Routing Engine, SFBs, fan trays, AC power |
MX2010-BASE-DC | 10 slot MX2010 chassis, base bundle with 1 Routing Engine, SFBs, fan trays, DC power |
MX2008-BASE | 10 slot MX2008 chassis, base bundle with 1 Routing Engine, SFBs, fan trays |
MX2020-PREMIUM-AC | 20 slot MX2020 chassis, premium bundle with redundant Routing Engine, SFBs, fan trays, AC power |
MX2020-PREMIUM-DC | 20 slot MX2020 chassis, premium bundle with redundant Routing Engine, SFBs, fan trays, DC power |
MX2010-PREMIUM-AC | 10 slot MX2010 chassis, premium bundle with redundant Routing Engine, SFBs, fan trays, AC power |
MX2010-PREMIUM-DC | 10 slot MX2010 chassis, premium bundle with redundant Routing Engine, SFBs, fan trays, DC power |
MX2008-PREMIUM | 10 slot MX2008 chassis, premium bundle with redundant Routing Engine, SFBs, fan trays |
MX2020-PREMIUM2-AC | 20 slot MX2020 premium 2 chassis with optimized AC power |
MX2020-PREMIUM2-DC | 20 slot MX2020 premium 2 chassis with optimized DC power |
MX2010-PREMIUM2-AC | 10 slot MX2010 premium 2 chassis with optimized AC power |
MX2010-PREMIUM2-DC | 10 slot MX2010 premium 2 chassis with optimized DC power |
CHAS-BP-MX2020-S | 20 slot MX2020 chassis with backplane installed, spare |
CHAS-BP-MX2010-S | 10 slot MX2010 chassis with backplane installed, spare |
CHAS-MX2008-BB | 10 slot MX2008 chassis with backplane installed, base |
CHAS-MX2008-S | 10 slot MX2008 chassis with backplane installed, spare |
Routing Engines (REs) | |
REMX2K-X8-64G-BB | Routing Engine and control board, 8 Core 2.3 GHz per CPU with 64 GB memory, base bundle for MX2010 and MX2020 |
REMX2008-X8-64G-BB | Routing Engine and Control Board, 8 Core, 2.1 GHz per CPU with 64 GB memory, base bundle for MX2008 |
REMX2K-X8-64G-R | Routing Engine and control board, 8 Core 2.3 GHz per CPU with 64 GB memory, redundant for MX2010 and MX2020 |
REMX2K-X8-64G-S | Routing Engine and control board, 8 Core 2.3 GHz per CPU with 64 GB memory, spare for MX2010 and MX2020 |
REMX2008-X8-64G-R | Routing Engine and Control Board, 8 Core, 2.1 GHz per CPU with 64 GB memory, redundant for MX2008 |
REMX2008-X8-64G-S | Routing Engine and Control Board, 8 Core, 2.1 GHz per CPU with 64 GB memory, spare for MX2008 |
REMX2008-X8-64G-LT | Routing Engine and Control Board, 8 Core, 2.1 GHz per CPU with 64 GB memory, limited encryption version, spare for MX2008 |
REMX2K-X8-64G-LT-B | Routing Engine and control board, 8 Core 2.3 GHz per CPU with 64 GB memory, limited encryption version, base bundle, for MX2010 and MX2020 |
REMX2K-X8-64G-LT-R | Routing Engine and control board, 8 Core 2.3 GHz per CPU with 64 GB memory, limited encryption version, redundant, for MX2010 and MX2020 |
REMX2K-X8-64G-LT-S | Routing Engine and control board, 8 Core 2.3 GHz per CPU with 64 GB memory, limited encryption version, spare, for MX2010 and MX2020 |
REMX2008X864GLT-BB | Routing Engine and Control Board, 8 Core, 2.1 GHz per CPU with 64 GB memory, limited encryption version, base bundle for MX2008 |
REMX2008X864GLT-R | Routing Engine and Control Board, 8 Core, 2.1 GHz per CPU with 64 GB memory, limited encryption version, redundant for MX2008 |
REMX2008-X8-128G | Routing Engine and Control Board, 8 Core, 2.1 GHz per CPU with 128 GB memory, spare for MX2008 |
REMX2008-X8-128G-BB | Routing Engine and Control Board, 8 Core, 2.1 GHz per CPU with 128 GB memory, base bundle for MX2008 |
REMX2008-X8-128G-R | Routing Engine and Control Board, 8 Core, 2.1 GHz per CPU with 128 GB memory, redundant for MX2008 |
REMX2K-1800-32G-BB | Routing Engine and control board, Quad Core 1.8 GHz with 32 GB memory, base bundle for MX2010 and MX2020 |
REMX2K-1800-32G-R | Routing Engine and control board, Quad Core 1.8 GHz with 32 GB memory, redundant option for MX2010 and MX2020 |
REMX2K-1800-32G-S | Routing Engine and control board, Quad Core 1.8 GHz with 32 GB memory, spare for MX2010 and MX2020 |
REMX2K-1800-32G-WB | Routing Engine and control board, Quad Core 1.8 GHz with 32 GB memory, worldwide version, base bundle for MX2010 and MX2020 |
REMX2K-1800-32G-WR | Routing Engine and control board, Quad Core 1.8 GHz with 32 GB memory, worldwide version, redundant for MX2010 and MX2020 |
REMX2K-1800-32G-WS | Routing Engine and control board, Quad Core 1.8 GHz with 32 GB memory, worldwide version, spare for MX2010 and MX2020 |
RE-MX2000-1800×4-S | Routing Engine and control board, Quad Core 1.8 GHz with 16 GB memory, spare for MX2010 and MX2020 |
RE-MX2000-1800×4-BB | Routing Engine and control board, Quad Core 1.8GHz with 16 GB memory, base bundle for MX2010 and MX2020 |
RE-MX2000-1800×4-R | Routing Engine and control board, Quad Core 1.8 GHz with 16 GB memory, redundant option for MX2010 and MX2020 |
RE-MX2000-1800×4-WW-S | Routing Engine and control board, Quad Core 1.8 GHz with 16 GB memory, worldwide version, spare for MX2010 and MX2020 |
Switch Fabric Boards (SFBs) | |
MX2000-SFB3-BB | Enhanced switch fabric board, base bundle for MX2010 and MX2020 |
MX2000-SFB3-R | Enhanced switch fabric board, redundant option for MX2010 and MX2020 |
MX2000-SFB3-S | Enhanced switch fabric board, spare for MX2010 and MX2020 |
MX2000-SFB2-BB | Enhanced switch fabric board, base bundle for MX2010 and MX2020 |
MX2000-SFB2-R | Enhanced switch fabric board, redundant option for MX2010 and MX2020 |
MX2000-SFB2-S | Enhanced switch fabric board, spare for MX2010 and MX2020 |
MX2008-SFB2-BB | Enhanced switch fabric board, base bundle for MX2008 |
MX2008-SFB2-R | Enhanced switch fabric board, redundant option for MX2008 |
MX2000-SFB-BB | Switch fabric board, base bundle for MX2010 and MX2020 |
MX2000-SFB-R | Switch fabric board, redundant option for MX2010 and MX2020 |
MX2000-SFB-S | Switch fabric board, spare for MX2010 and MX2020 |
MPCs | |
MX2K-MPC11E-BASE | Multirate line card supporting 10/40/100/400GbE interfaces. Requires Flex Advanced or Premium license. |
MX2K-MPC9E | 2-slot modular line card; includes full-scale L2/L2.5 and reduced scale L3 features. Interface cards sold separately. |
MX2K-MPC9E-RB | 2-slot modular line card bundle; includes full-scale L3, L2 and L2.5 features. Interface cards sold separately. |
MX2K-MPC9E-IRB | 2-slot modular line card bundle; includes full-scale L2/L2.5 and L3 features and up to 16 L3VPN instances per card. Interface cards sold separately. |
MX2K-MPC9EQ-B | 2-slot modular line card bundle; includes full-scale L2/L2.5 and reduced scale L3 features, full scale per-VLAN queuing, and H-QoS. Interface cards sold separately. |
MX2K-MPC9EQ-RB | 2-slot modular line card bundle; includes full-scale L3, L2 and L2.5 features, full scale per-VLAN queuing, and H-QoS. Interface cards sold separately. |
MX2K-MPC9EQ-IRB | 2-slot modular line card bundle; includes full-scale L2/L2.5 and L3 features and up to 16 L3VPN instances per card, full-scale per-VLAN queuing, and H-QoS. Interface cards sold separately. |
MX2K-MPC8E | 2-slot modular line card; includes full-scale L2/L2.5 and reduced scale L3 features. Interface cards sold separately. |
MX2K-MPC8E-RB | 2-slot modular line card bundle; includes full-scale L3, L2 and L2.5 features. Interface cards sold separately. |
MX2K-MPC8E-IRB | 2-slot modular line card bundle; includes full-scale L2/L2.5 and L3 features and up to 16 L3VPN instances per card. Interface cards sold separately. |
MX2K-MPC8EQ-B | 2-slot modular line card bundle; includes full-scale L2/L2.5 and reduced scale L3 features, full scale per-VLAN queuing, and H-QoS. Interface cards sold separately. |
MX2K-MPC8EQ-RB | 2-slot modular line card bundle; includes full-scale L3, L2 and L2.5 features, full-scale per-VLAN queuing, and H-QoS. Interface cards sold separately. |
MX2K-MPC8EQ-IRB | 2-slot modular line card bundle; includes full-scale L2/L2.5 and L3 features and up to 16 L3VPN instances per card, full-scale per-VLAN queuing, and H-QoS. Interface cards sold separately. |
MX2K-MPC6E | MPC6E, supports any two MIC6 cards. |
MX2K-MPC6E-IRB | MPC6E line card bundle supports any two MIC6 cards with full-scale L2/L2.5, L3 features and up to 16 L3VPN instances. |
MX2K-MPC6E-RB | MPC6E line card bundle supports any two MIC6 cards with full-scale L2/L2.5, L3 features and L3VPN features. |
MX2000 Line Adapter Card | |
MX2000-LC-ADAPTER | MPC adapter, required when using MPC1s through MPC5s, MPC7s and MS-MPC ins MX2000 |
MX Series MPCs (require MX2000-LC-ADAPTER card for use in MX2000) | |
MPC7E-10G | 40x10GbE SFP+ port line card. Price includes full-scale L2/L2.5 and reduced scale L3 features. Optics sold separately. |
MPC7E-10G-RB | 40x10GbE SFP+ port line card bundle. Price includes full-scale L3, L2 and L2.5 features. Optics sold separately. |
MPC7E-10G-IRB | 40x10GbE SFP+ port line card bundle. Price includes full-scale L2/L2.5 and L3 features and up to 16 L3VPN instances per card. Optics sold separately. |
MPC7EQ-10G-B | 40x10GbE SFP+ port line card bundle. Price includes full-scale L2/L2.5 and reduced-scale L3 features, full-scale per-VLAN queuing and H-QoS. Optics sold separately. |
MPC7EQ-10G-RB | 40x10GbE SFP+ port line card bundle. Price includes full-scale L3, L2 and L2.5 features, full-scale per-VLAN queuing and H-QoS. Optics sold separately. |
MPC7EQ-10G-IRB | 40x10GbE SFP+ port line card bundle. Price includes full-scale L2/L2.5 and L3 features and up to 16 L3VPN instances per card, full scale per-VLAN queuing and H-QoS. Optics sold separately. |
MPC7E-MRATE-RB | 12xQSFP+/QSFP28 multirate port line card bundle. Price includes full-scale L3, L2 and L2.5 features. Optics sold separately. |
MPC7EQ-MRATE-B | 12xQSFP+/QSFP28 multirate port line card bundle. Price includes full-scale L2/L2.5 and reduced scale L3 features, full-scale per-VLAN queuing and H-QoS. Optics sold separately. |
MPC7EQ-MRATE-RB | 12xQSFP+/QSFP28 multirate port line card bundle. Price includes full-scale L3, L2 and L2.5 features, full-scale per-VLAN queuing and H-QoS. Optics sold separately. |
MPC7EQ-MRATE-IRB | 12xQSFP+/QSFP28 multirate port line card bundle. Price includes full-scale L2/L2.5 and L3 features and up to 16 L3VPN instances per card, full-scale per-VLAN queuing and H-QoS. Optics sold separately. |
MPC5E-100G10G | Fixed 2x 100GbE and 4x 10GbE line card bundle with full scale L2/L2.5 and reduced scale L3 features, optional license permits up to 32,000 queues with HQoS. |
MPC5E-100G10G-IRB | Fixed 2x 100GbE and 4x 10GbE line card bundle with full scale L2/L2.5, L3 features and up to 16 L3VPN instances, optional license permits up to 32,000 queues with HQoS. |
MPC5E-100G10G-RB | Fixed 2x 100GbE and 4x 10GbE line card bundle with full scale L2/L2.5, L3 and L3VPN features, optional license permits up to 32,000 queues with HQoS. |
MPC5E-40G10G | Fixed 6x 40GbE or 24x 10GbE line card bundle with full scale L2/L2.5 and reduced scale L3 features, optional license permits up to 32,000 queues with HQoS. |
MPC5E-40G10G-IRB | Fixed 6x 40GbE or 24x 10GbE line card bundle with full scale L2/L2.5, L3 features and up to 16 L3VPN instances, optional license permits up to 32,000 queues with HQoS. |
MPC5EQ-100G10G | Fixed 2x 100GbE and 4x 10GbE line card bundle with HQoS; supports 1 million queues and 128,000 sessions; includes full scale L2/L2.5 and reduced scale L3 features. |
MPC5EQ-100G10G-IRB | Fixed 2x 100GbE and 4x 10GbE GbE line card bundle with HQoS; supports 1 million queues and 128,000 sessions; includes full scale L2/L2.5, L3 features and up to 16 L3VPN instances. |
MPC5EQ-100G10G-RB | Fixed 2x 100GbE and 4x 10GbE GbE line card bundle with HQoS; supports 1 million queues and 128,000 sessions; includes full scale L2/L2.5, L3 and L3VPN features. |
MPC5EQ-40G10G | Fixed 6x 40GbE or 24x 10GbE GbE line card bundle with HQoS; supports 1 million queues and 128,000 sessions; includes full scale L2/L2.5 and reduced scale L3 features. |
MPC5EQ-40G10G-IRB | Fixed 6x 40GbE or 24x 10GbE GbE line card bundle with HQoS; supports 1 million queues and 128,000 sessions, includes full scale L2/L2.5, L3 features and up to 16 L3VPN instances. |
MPC5EQ-40G10G-RB | Fixed 6x 40GbE or 24x 10GbE GbE line card bundle with HQoS; supports 1 million queues and 128,000 sessions, includes full scale L2/L2.5, L3 and L3VPN features. |
MPC4E-3D-2GE | Fixed 2x 100GbE and 8x 10GbE line card bundle with full scale L2/L2.5 and reduced scale L3 features |
MPC4E-3D-2CGE-8XGE-IRB | Fixed 2x 100GbE and 8x 10GbE line card bundle with full scale L2/L2.5, L3 features, up to 16 L3VPNs |
MPC4E-3D-32XGE-IRB | Fixed 32x 10GbE SFPP line card bundle with full scale L2/L2.5, L3 features, up to 16 L3VPNs |
MPC4E-3D-2CGE8XGE-RB | Fixed 2x 100GbE and 8x 10GbE line card bundle with full scale L2/L2.5, L3 and L3VPN features |
MPC4E-3D-32XGE-RB | Fixed 32x GbE SFPP line card bundle with full scale L2/L2.5, L3 and L3VPN features |
MX-MPC3E-3D | MPC3 with support for 100GbE, 40GbE, and 10GbE interfaces, L2.5 features, optics sold separately |
MX-MPC3E-3D-R-B | MPC3E with support for 100GbE, 40GbE, and 10GbE interfaces, includes full scale L2, L3, L3VPN features, optics sold separately |
MPC3E-3D-NG | Next-generation MPC3E with upgraded CPU and memory. Offers full feature parity with MPC1E, MPC2E, and MPC3E. Includes full scale L2/L2.5 and reduced scale L3 features. Flexible queuing option enables hierarchical QoS support with up to 32,000 total queues. Supports all MICs supported by MPC1E, MPC2E, and MPC3E. |
MPC3E-3D-NG-IR-B | Next-generation MPC3E line card bundle with upgraded CPU and memory. Offers full feature parity with the MPC1E, MPC2E, and MPC3E. Includes full scale L2/L2.5 and L3 features and up to 16 L3VPNs per MPC. Flexible queuing option enables hierarchical QoS support with up to 32,000 total queues. Supports all MICs supported by the MPC1E, MPC2E, and MPC3E. |
MPC3E-3D-NG-R-B | Next-generation MPC3E line card bundle with upgraded CPU and memory. Offers full feature parity with the MPC1E, MPC2E, and MPC3E. Includes full scale L2/L2.5, L3 and L3VPN features. Flexible queuing option enables hierarchical QoS support with up to 32,000 total queues. Supports all MICs supported by the MPC1E, MPC2E, and MPC3E. |
MPC3E-3D-NG-Q | Next-generation MPC3E with upgraded CPU and memory. Offers full feature parity with the MPC1E, MPC2E, and MPC3E. Includes full scale L2/L2.5 features, reduced scale L3 features, and hierarchical QoS with up to 512,000 queues per slot. Supports all MICs supported by the MPC1E, MPC2E, and MPC3E. |
MPC3E-3D-NG-Q-IR-B | Next-generation MPC3E line card bundle with upgraded CPU and memory. Offers full feature parity with the MPC1E, MPC2E, and MPC3E. Includes full scale L2/L2.5, L3 and up to 16 L3VPN features, and hierarchical QoS with up to 512,000 queues per slot. Supports all MICs supported by the MPC1E, MPC2E, and MPC3E |
MPC3E-3D-NG-Q-R-B | Next-generation MPC3E line card bundle with upgraded CPU and memory. Offers full feature parity with the MPC1E, MPC2E, and MPC3E. Includes full scale L2/L2.5 features, L3 features, and hierarchical QoS with up to 512,000 queues per slot. Supports all MICs supported by the MPC1E, MPC2E, and MPC3E. |
MPC-3D-16XGE-SFPP | Fixed 16x 10GbE line card bundle with L2.5 features |
MPC-3D-16XGE-SFPP-R-B | Fixed 16x 10GbE GbE line card bundle with full scale L2/L2.5 and L3 features |
MPC2E-3D-NG | Next-generation MPC2E with upgraded CPU and memory. Offers full feature parity with the MPC1E, MPC2E, and MPC3E. Includes full scale L2/L2.5 and reduced scale L3 features. Flexible queuing option enables hierarchical QoS support with up to 32,000 total queues. Supports all MICs supported by MPC1E and MPC2E. |
MPC2E-3D-NG-IR-B | Next-generation MPC2E line card bundle with upgraded CPU and memory. Offers full feature parity with MPC1E, MPC2E, and MPC3E. Includes full scale L2/L2.5, L3 features and up to 16 L3VPNs per MPC. Flexible queuing option enables hierarchical QoS support with up to 32,000 total queues. Supports all MICs supported by MPC1E and MPC2E. |
MPC2E-3D-NG-R-B | Next-generation MPC2E line card bundle with upgraded CPU and memory. Offers full feature parity with MPC1E, MPC2E, and MPC3E. Includes full scale L2/L2.5, L3 and L3VPN features. Flexible queuing option enables hierarchical QoS support with up to 32,000 total queues. Supports all MICs supported by MPC1E and MPC2E. |
MPC2E-3D-NG-Q | Next-generation MPC2E with upgraded CPU and memory. Offers full feature parity with MPC1E, MPC2E, and MPC3E. Includes full scale L2/L2.5, and reduced scale L3 features, and hierarchical QoS with up to 512,000 queues per slot. Supports all MICs supported by MPC1E and MPC2E. |
MPC2E-3D-NG-Q-IR-B | Next-generation MPC2E line card bundle with upgraded CPU and memory. Offers full feature parity with MPC1E, MPC2E, and MPC3E. Includes full scale L2/L2.5, L3 and up to 16 L3VPN features, and hierarchical QoS with up to 512,000 queues per slot. Supports all MICs supported by MPC1E and MPC2E. |
MPC2E-3D-NG-Q-R-B | Next-generation MPC2E line card bundle with upgraded CPU and memory. Offers full feature parity with MPC1E, MPC2E, and MPC3E. Includes full scale L2/L2.5, L3 features, and hierarchical QoS with up to 512,000 queues per slot. Supports all MICs supported by MPC1E and MPC2E. |
MX-MPC2-3D | MPC2 with port queuing; includes full scale L2/L2.5 and reduced scale L3 features |
MX-MPC2-3D-EQ | MPC2 line card bundle with per-IFL HQoS, 512,000 queues; includes full scale L2/L2.5 and reduced scale L3 features |
MX-MPC2-3D-EQ-R-B | MPC2 line card bundle with per-IFL HQoS, 512,000 queues; includes full scale L3, L2 and L2.5 features |
MX-MPC2-3D-Q | MPC2 line card bundle with per-IFL HQoS, 256,000 queues (max 128,000 egress); includes full scale L2/L2.5 and reduced scale L3 features |
MX-MPC2-3D-Q-R-B | MPC2 line card bundle; includes full scale L3, L2, and L2.5 features |
MX-MPC2-3D-R-B | MPC2 line card bundle; includes full scale L3, L2, and L2.5 features |
MX-MPC2E-3D | Enhanced MPC2 with port queuing; includes full scale L2/L2.5 and reduced scale L3 features |
MX-MPC2E-3D-EQ | Enhanced MPC2 with per-IFL HQoS, 512,000 queues; includes full scale L2/L2.5 and reduced scale L3 features |
MX-MPC2E-3D-EQ-R-B | Enhanced MPC2 line card bundle; includes full scale L3, L2, and L2.5 features |
MX-MPC2E-3D-P | Enhanced MPC2 with 1588v2, port queuing; includes full scale L2/L2.5 and reduced scale L3 features |
MX-MPC2E-3D-P-Q-B | Enhanced MPC2 line card bundle; includes 1588v2, per-IFL HQoS, 256,000 queues (maximum 128,000 egress), full scale L2/L2.5 and reduced scale L3 features |
MX-MPC2E-3D-P-Q-R-B | Enhanced MPC2 line card bundle; includes 1588v2, per-IFL HQoS, 256,000 queues (maximum 128,000 egress), full scale L3, L2, and L2.5 features |
MX-MPC2E-3D-P-R-B | Enhanced MPC2 line card bundle; includes 1588v2, full scale L3, L2, and L2.5 features |
MX-MPC2E-3D-Q | Enhanced MPC2 line card bundle, includes per-IFL HQoS, 256,000 queues (maximum 128,000 egress); includes full scale L2/L2.5 and reduced scale L3 features |
MX-MPC2E-3D-Q-R-B | Enhanced MPC2E line card bundle; includes per-IFL HQoS, 256,000 queues (maximum 128,000 egress), full scale L3, L2, and L2.5 features |
MX-MPC1-3D | MPC1 with port queuing; includes full scale L2/L2.5 and reduced scale L3 features |
MX-MPC1-3D-Q | MPC1 with per-IFL HQoS, 128,000 queues (maximum 64000 egress); includes full scale L2/L2.5 and reduced scale L3 features |
MX-MPC1-3D-Q-R-B | MPC1 line card bundle; includes full scale L3, L2, and L2.5 features |
MX-MPC1-3D-R-B | MPC1 line card bundle; includes full scale L3, L2, and L2.5 features |
MX-MPC1E-3D | Enhanced MPC1 with port queuing; includes full scale L2/L2.5 and reduced scale L3 features |
MX-MPC1E-3D-Q | Enhanced MPC1 with per-IFL HQoS, 128,000 queues (max 64,000 egress); includes full scale L2/L2.5 and reduced scale L3 features |
MX-MPC1E-3D-Q-R-B | Enhanced MPC1 with per-IFL HQoS, 128,000 queues (max 64,000 egress) line card bundle; includes full scale L3, L2, and L2.5 features |
MX-MPC1E-3D-R-B | Enhanced MPC1 line card bundle; includes full scale L3, L2, and L2.5 features |
MS-MPC | Multiservices MPC supports a variety of optionally licensed applications including Stateful firewall, Carrier-Grade NAT (CGN), and deep packet inspection (DPI); each purchased separately. |
MICs for MPC6E | |
MIC6-10G | 24x 10GbE MIC for MPC6 only |
MIC6-100G-CXP | 4x 100GbE CXP MIC for MPC6 only |
MIC6-10G-OTN | 24x 10GbE SFP OTN MIC for MPC6 only; requires S-MIC6-OPT-LIC |
MIC6-100G-CFP2 | 2x 100GbE CFP2 OTN MIC for MPC6 only; requires S-MIC6-OPT-LIC; requires S-MIC6-OPT-LIC |
MICs for MPC8E and MPC9E | |
MIC-MRATE | 12xQSFP+/QSFP28 multirate port interface card. Optics sold separately. |
MIC-MACSEC-MRATE | 12xQSFP+/QSFP28 multirate port interface card with built-in MACsec capability. Optics sold separately. |
Licenses | |
S-MIC6-OPT-LIC | OTN license for MIC6-10G-OTN and MIC6-100G-CFP2. |
Cable Management | |
MX2000-CBL-TOP-S | MX2000 line front upper cable manager, spare |
MX2000-CBL-BTM-S | MX2000 line front lower cable manager, spare |
MX2000-CBL-MID-S | MX2000 line front middle cable manager, spare |
Fan Trays | |
MX2000-FANTRAY-S | MX2000 line fan tray, spare |
MX2000-FANTRAY-BB | MX2000 line fan tray, base bundle |
MX2000-FANTRAY-R | MX2000 line fan tray, redundant option |
Air Filters | |
MX2020-FLTR-KIT-S | MX2020 filter set, containing 1 of each filter required |
MX2010-FLTR-KIT-S | MX2010 filter set, containing 1 of each filter required |
MX2008-FLTR-KIT-S | MX2008 filter set, containing 1 of each filter required |
Craft Interface | |
MX2020-CRAFT-S | Craft interface panel, MX2020 chassis, spare |
MX2010-CRAFT-S | Craft interface panel, MX2010 chassis, spare |
MX2008-CRAFT-S | Craft interface panel, MX2008 chassis, spare |
Power Distribution Modules | |
MX2000-PDM-AC-WYE-S | MX2000 line 3 phase AC Wye power distribution module, spare |
MX2000-PDM-AC-WYE-BB | MX2000 line 3 phase AC power distribution module, base bundle |
MX2000-PDM-AC-WYE-R | MX2000 line 3 phase AC power distribution module, redundant option |
MX2000-PDM-AC-DELTA-S | MX2000 line 3 phase AC Delta power distribution module, spare |
MX2000-PDM-AC-DELTA-BB | MX2000 line 3 phase AC Delta power distribution module, base bundle |
MX2000-PDM-AC-DELTA-R | MX2000 line 3 phase AC Delta power distribution module, redundant option |
MX2000-PDM-DC-S | MX2000 line DC power 60 Amp distribution module, spare |
MX2000-PDM-DC-R | MX2000 line DC power 60 Amp distribution module, spare |
MX2K-PDM-AC-1PH-BB | MX2000 line 1 phase AC power distribution module, base |
MX2K-PDM-AC-1PH-S | MX200 line 1 phase AC power distribution module, spare |
MX2K-PDM-OP-AC-BB | MX2000 line optimized AC power distribution module, base bundle |
MX2K-PDM-OP-AC-S | MX2000 line optimized AC power distribution module, spare |
MX2K-PDM-OP-DC-BB | MX2000 line optimized DC power distribution module, base bundle |
MX2K-PDM-OP-DC-S | MX2000 line optimized DC power distribution module, spare |
MX2K-PDM-HV-BB | MX2000 HVAC/HVDC power distribution module, base bundle |
MX2K-PDM-HV-R | MX2000 HVAC/HVDC power distribution module, redundant option |
MX2K-PDM-HV-S | MX2000 HVAC/HVDC power distribution module, spare |
Power Supply Modules | |
MX2000-PSM-AC-S | MX2000 line AC power supply module, spare |
MX2000-PSM-AC-BB | MX2000 line power supply module, base bundle |
MX2000-PSM-AC-R | MX2000 line power supply module, redundant option |
MX2000-PSM-DC-S | MX2000 line DC power supply module, spare |
MX2000-PSM-DC-BB | MX2000 line DC power supply module, base bundle |
MX2000-PSM-DC-R | MX2000 line DC power supply module, redundant option |
MX2K-PSM-HV-BB | MX2000 HVAC/HVDC power supply, base bundle |
MX2K-PSM-HV-R | MX2000 HVAC/HVDC power supply, redundant option |
MX2K-PSM-HV-S | MX2000 HVAC/HVDC power supply, spare |
Shipping Containers and Miscellaneous | |
MX2020-CHAS-PKG-S | MX2020 20 slot chassis shipping container, spare |
MX2010-CHAS-PKG-S | MX2010 10 slot chassis shipping container, spare |
MX2008-CHAS-PKG-S | MX2008 10 slot chassis shipping container, spare |
MX2020-LC-PKG-S | MX2020 line card bulk shipping container, spare |
MX2020-PSM-PKG-S | MX2020 power supply module bulk shipping container, spare |
Power Cable Manager | |
MX2020-DC-CBL-MGR-S | MX2020 cable manager for DC power cables, spare |
Mounting Tray | |
MX2000-MOUNT-TRAY-S | MX2000 line rack mount tray, spare |
Lug Kits | |
MX2000-DCLUG-4AWG-S | MX2000 line DC 4AWG terminal lug kit |
MX2000-DCLUG-6AWG-S | MX2000 line DC 6AWG terminal lug kit |
Junos OS | |
USA | Junos OS |
Worldwide | Junos-WW |
