Juniper’s secure automated distributed cloud blueprint enables service providers to react quickly to changing market conditions in the cloud era, accelerating service delivery with world-class products and innovative architectural components. The MX10000 line of Universal Routing Platforms is an integral part of this solution. With its massive scale and efficiency, the MX10000 line is ideal for space- and power-constrained environments. It redefines per-slot economics, enabling customers to do more with less while simplifying network design, reducing OpEx, and enabling the profitable delivery of a broad range of business, residential, mobile, cable, data center, and cloud services—all while seamlessly supporting traditional and emerging network architectures. The MX10000 chassis shares a common set of components with other Juniper products; various line cards and software are available to satisfy specific core routing, edge routing, and switching applications.

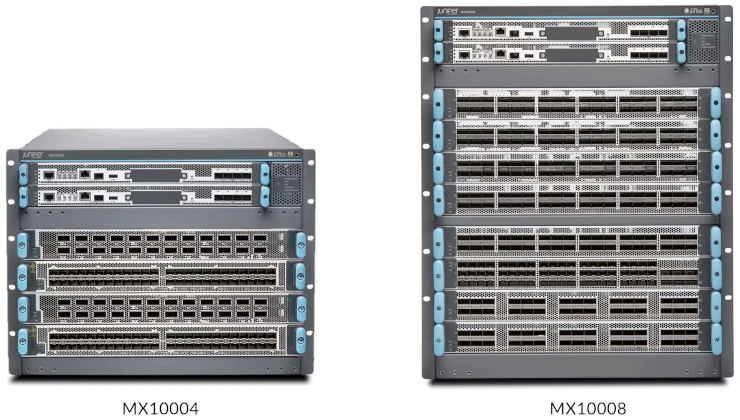

The Juniper Networks MX10000 line of Universal Routing Platforms includes the 7 RU, 38.4 Tbps-capable MX10004 supporting up to 9.6 Tbps per slot and the 13 RU, 76.8 Tbpscapable MX10008 supporting up to 9.6 Tbps per slot. They offer dense 1GbE, 10GbE, 25GbE, 40GbE, 50GbE, 100GbE and 400GbE support and are 800GbE ready. This enables service providers and cloud operators to confidently build the best networks across data centers, business edge, and cloud markets. The MX10000 line shares common chassis components with equivalent Juniper Networks PTX Series Packet Transport Routers and QFX Series Switches; using specific software and line cards, the universal chassis can be successfully deployed as a core router, IP edge router, or switch, reducing the burden on network operators to qualify multiple platforms.
The line cards for the MX10000 line of modular platforms are based on highly scalable, custom Juniper Trio 6 silicon, making it the industry’s leading router for data center edge, core, peering, and aggregation applications. Each slot on the MX10004 and MX10008 supports 9.6 Tbps, while the line cards support multi-rate 1GbE, 10GbE, 25GbE, 40GbE, 50GbE, 100GbE, and 400GbE interfaces.
The modular design of the MX10004 and MX10008 routers provides investment protection by allowing future upgrades. The LC480 line card leverages Trio 4 chips to achieve 480 Gbps total throughput. The LC9600 line card leverages Trio 6 chips to achieve 9.6 Tbps total throughput.
The PFEs provide ingress queuing with loopback stream optimization to avoid reading and writing packet tails when packets are sent to and received back from a loopback stream. The line cards also provide Operation, Administration, and Maintenance (OAM) support with per-port Ethernet OAM counters, as well as packet memory, which uses Hybrid Memory Cube DRAM technology to reduce power usage, increase speed, and improve system density.
The MX10004 and MX10008 RE features a 10-core 2.2 GHz Intel processor with 64/128 GB memory and 2×200 GB solidstate drive (SSD) storage.
The MX10004 contains three power supply slots and the MX10008 contains six power supply slots to provide complete flexibility for provisioning and redundancy.
The first generation of AC power supplies on the MX10008 accepts 200 to 240 volts alternating current (VAC) input, delivering 2700 watts of power to the chassis. The DC power supplies accept -40 to -72 volts direct current (VDC) input, delivering 2500 watts of power to the chassis. Each AC and DC power supply has two inputs for feed redundancy.
The second generation of AC/DC power supplies on the MX10004 and MX10008 delivers up to 5500 W per unit to the chassis, enabling dense 400GbE with optional lower-power settings. For more information on the MX10000 line power supplies
The MX10000 line of modular chassis supports front-to-back cooling with air drawn in through perforations on the REs and the line cards in the front of the platform, while hot air exits through the rear of the chassis. The modular fan trays are accessible from the rear of the chassis.
The MX10000 modular line delivers powerful Junos OS chassis management that allows environmental monitoring and field-replaceable unit (FRU) control. Chassis management provides a faster primary switchover, enhanced power budgeting with modular power management, reduced power consumption for partially populated systems, granular control over FRU power-on, single zone cooling with better fan speed control for reduced noise, and CPU leveling during monitoring intervals.
The MX10000 modular line simplifies management based on the elegance and simplicity of Junos OS. Management applications can receive streaming telemetry data to provide robust protocol analytics for an SDN environment. Junos OS also supports OpenConfig, which today is a YANG-based data model that supports a variety of operator use cases.
Table 1. MX10004 and MX10008 Specifications
Product Number | Description |
System capacity | MX10004: 38.4 Tbps |
Switch fabric capacity per slot | MX10004/MX10008: 9.6 Tb (24 x 400GbE) |
DPCs and/or MPCs per chassis | MX10004: 4 (MPCs only) |
LMICs and REs per chassis | N/A |
Chassis per rack | MX10004: 6 |
Dimensions (W x H x D) | MX10004: 17.4 x 12.2 x 32 in (44.2 x 33 x 81.28 cm); 42.2 in (107.7 cm) deep with EMI door; 7 RU |
Maximum weight | MX10004: 272 lb (123.38 kg) excluding line cards or 398.3 lb (180.67 kg) with 4 line cards |
Mounting | 4-post rack mounting |
Power options | 200-240 VAC / 50-60 Hz or -48 VDC at 60A |
Operating temperature | 32° to 115° F (0° to 46° C) at sea level |
Humidity | (Operating) 5 to 90 percent noncondensing |
Altitude | Up to 6000 feet |
Table 1. MX10004 and MX10008 Ordering Information
Product Number | Description |
MX10004 Base Unit | |
MX10004-BASE | MX10004 4-slot chassis [JNP10004]. Includes 1 RE, 2 power supplies, 2 fan trays, 2 fan tray controllers, and 5 Switch Fabric cards. |
MX10004-PREMIUM | MX10004 redundant 4-slot chassis [JNP10004]. Includes 2 REs, 3 power supplies, 2 fan trays, 2 fan tray controllers, and 6 Switch Fabric cards. |
MX10008 Base Unit | |
MX10008-BASE | MX10008 8-slot chassis [JNP10008]. Includes 1 RE, 3 power supplies, 2 fan trays, 2 fan tray controllers, and 5 Switch Fabric cards. |
MX10008-PREMIUM | MX10008 redundant 8-slot chassis [JNP10008]. Includes 2 REs, 6 power supplies, 2 fan trays, 2 fan tray controllers, and 6 Switch Fabric cards. |
MX10000 Routing Engines and Control Boards | |
JNP10K-RE1-BB | MX10000/JNP10000 REx10, base bundle |
JNP10K-RE1-R | MX10000/JNP10000 REx10, redundant |
JNP10K-RE1 | MX10000/JNP10000 REx10 |
JNP10K-RE1-LT-BB | MX10000/JNP10000 REx10, limited encryption version, base bundle |
JNP10K-RE1-LT-R | MX10000/JNP10000 REx10, limited encryption version, redundant |
JNP10K-RE1-LT | MX10000/JNP10000 REx10, limited encryption version |
JNP10K-RE1-128-BB | MX10000/JNP10000 REx10, 128 GB memory, base bundle |
JNP10K-RE1-128-R | MX10000/JNP10000 REx10, 128 GB memory, redundant |
JNP10K-RE1-128 | MX10000/JNP10000 REx10, 128 GB memory |
MX10004 Switch Fabric | |
JNP10004-SF2-BB | MX10004/JNP10004 Switch Fabric2 card, base bundlee |
JNP10004-SF2-R | MX10004/JNP10004 Switch Fabric2 card, redundant |
JNP10004-SF2 | MX10004/JNP10004 Switch Fabric2 card |
MX10008 Switch Fabric | |
JNP10008-SF-BB | MX10008/JNP10008 Switch Fabric card, base bundle |
JNP10008-SF-R | MX10008/JNP10008 Switch Fabric card, redundant |
JNP10008-SF | MX10008/JNP10008 Switch Fabric card |
JNP10008-SF2-BB | MX10008/JNP10008 Switch Fabric2 card, base bundle |
JNP10008-SF2-R | MX10008/JNP10008 Switch Fabric2 card, redundant |
JNP10008-SF2 | MX10008/JNP10008 Switch Fabric2 card |
MX10004 Fan Tray and Controller | |
JNP10004-FAN2-BB | MX10004/JNP10004 fan tray, second generation, base bundle |
JNP10004-FAN2 | MX10004/JNP10004 fan tray, second generation |
JNP10004-FTC2-BB | MX10004/JNP10004 fan2 controller, base bundle |
JNP10004-FTC2 | MX10004/JNP10004 fan2 controller |
MX10008 Fan Tray and Controller | |
JNP10008-FAN-BB | MX10008/JNP10008 fan, base bundle |
JNP10008-FAN2-BB | MX10008/JNP10008 fan2, base bundle |
JNP10008-FAN | MX10008/JNP10008 fan |
JNP10008-FAN2 | MX10008/JNP10008 fan tray, second generation |
JNP10008-FANCTRL-BB | MX10008/JNP10008 fan tray controller, base bundle |
JNP10008-FTC2-BB | MX10008/JNP10008 fan2 controller, base bundle |
JNP10008-FAN-CTRL | MX10008/JNP10008 fan tray controller |
JNP10008-FTC2 | MX10008/JNP10008 fan2 controller |
MX10000 Power Modules | |
JNP10K-PWR-AC-BB | MX10000/JNP10000 2700 W AC power supply, base bundle |
JNP10K-PWR-AC-R | MX10000/JNP10000 2700 W AC power supply, redundant |
JNP10K-PWR-AC | MX10000/JNP10000 2700 W AC power supply |
JNP10K-PWR-DC-BB | MX10000/JNP10000 2500 W DC power supply, base bundle |
JNP10K-PWR-DC2-BB | MX10000/JNP10000 5500 W DC power supply, version 2, base bundle |
JNP10K-PWR-DC-R | MX10000/JNP10000 2500 W DC power supply, redundant |
JNP10K-PWR-DC | MX10000/JNP10000 2500 W DC power supply |
JNP10K-PWR-AC2 | MX10000/JNP10000 5500 W AC/HVDC power supply |
JNP10K-PWR-AC2-BB | MX10000/JNP10000 5500 W AC/HVDC power supply, base bundle |
JNP10K-PWR-AC2-R | MX10000/JNP10000 5500 W AC/HVDC power supply, redundant |
JNP10K-PWR-DC2 | MX10000/JNP10000 5500 W DC power supply |
JNP10K-PWR-DC2-R | MX10000/JNP10000 5500 W DC power supply, redundant |
MX10004 Front Panels | |
JNP10004-FRPNL-BB | MX10004/JNP10004 front panel, base bundle |
JNP10004-FRNT-PNL | MX10004/JNP10004 front panel |
JNP10004-FRPNL1-BB | MX10004/JNP10004 front panel with filter, base bundle |
JNP10004-FRPNL1 | MX10004/JNP10004 front panel with filter |
MX10008 Front Panels | |
JNP10008-FRPNL-BB | MX10008/JNP10008 front panel, base bundle |
JNP10008-FRNT-PNL | MX10008/JNP10008 front panel |
JNP10008-FRPNL1-BB | MX10008/JNP10008 front panel with filter, base bundle |
JNP10008-FRPNL1 | MX10008/JNP10008 front panel with filter |
