The Juniper Networks ACX5000 line of Universal Metro Routers is a response to a shift in metro network architectures where the access and aggregation layers are extending operational intelligence from the service provider edge to the access network. The ACX5000 line simplifies access and aggregation architectures by eliminating unnecessary layers and network overlays, dramatically reducing CapEx and OpEx. Based on architectural simplification and cost reduction, the ACX5000 line gives service providers and enterprises the ability to adopt a true universal metro paradigm. The ACX5000 line also provides high capacity, scalability, and a packet optical transport layer, while delivering industry-leading performance with a wide range of port densities and interface types.

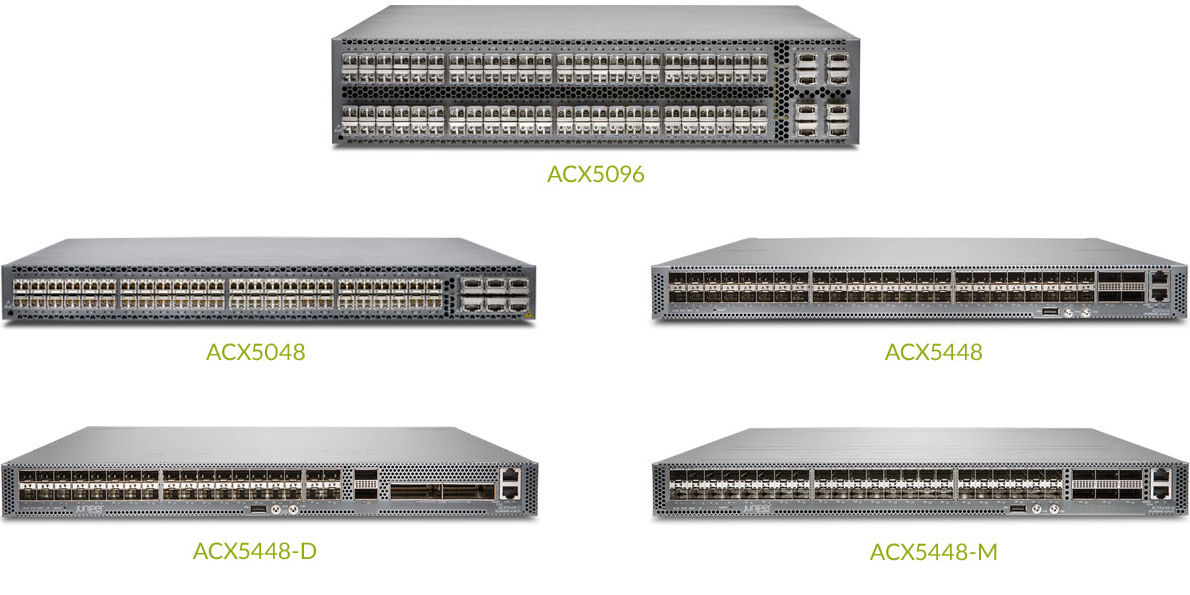

Juniper Networks ACX Series Universal Metro Routers offer a wide range of metro solutions, including the ACX500, ACX1000, ACX2000, ACX4000, ACX5000, and ACX6000 lines. The ACX5000 line includes five models.
Table 1. ACX5400 Line of Metro Routers Specifications
Product Number | Description |
System throughput | Up to 800 Gbps |
Interface support | ACX5448: 48 GbE (SFP)/10GbE (SFP+); 4 100GbE (QSFP28) ACX5448-D: 36 GbE (SFP)/10GbE (SFP+); 2 100GbE (QSFP28); 2 100G/200G (CFP2-DCO) ACX5448-M: 44 GbE (SFP)/10GbE (SFP+); 6 100GbE (QSFP28) |
Dimensions (W x H x D) | ACX5448: 17.26 x 1.7 x 21.81 in (43.84 x 4.33 x 55.41 cm) ACX5448-D: 17.5 x 1.75 x 20.15 in (44.45 x 4.45 x 51.18 cm) ACX5448-M: 17.5 x 1.75 x 23.97 in (44.45 x 4.45 x 60.88 cm) |
Maximum weight | ACX5448: 22.45 lb (10.18 kg) ACX5448-D: 23 lb (10.43 kg) ACX5448-M: 23 lb (10.43 kg) |
Power (DC) | -44 VDC (min) to -72 VDC (max); 7.5 A (min) to -12 A (max) |
Power (AC) | 100 VAC (min) to 240 VAC (max); 47Hz (min) to 60Hz (max); 3.5 A (min) to 5 A (max) |
Power draw | 450 W (max) with optical SFPs |
Humidity | 5–90% RH noncondensing |
Noise level | 0 dB (acoustic noise) |
Operating temperature | Long-term operating range: 32° to 104° F (0° to 40°C), Short-term operating range: 32° to 131° F (0° to 55°C) |
Table 1. ACX5000 Line of Universal Metro Routers Ordering Information
Product Number | Name |
Hardware | |
ACX5048-AC-L2-L3 | ACX5048, 48 SFP+/SFP ports, 6 QSFP ports, redundant fans and AC power supplies; no right to use IP VPN |
ACX5048-DC-L2-L3 | ACX5048, 48 SFP+/SFP ports, 6 QSFP ports, redundant fans and DC power supplies; no right to use IP VPN |
ACX5096-AC-L2-L3 | ACX5096, 96 SFP+/SFP ports, 8 QSFP ports, redundant fans and AC power supplies; no right to use IP VPN |
ACX5096-DC-L2-L3 | ACX5096, 96 SFP+/SFP ports, 8 QSFP ports, redundant fans and DC power supplies; no right to use IP VPN |
ACX5K-L-104X10GE-S | ACX5000 Right to use 104 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-16X10GE-S | ACX5000 Right to use 16 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-1X10GE-S | ACX5000 Right to use a single 10GbE port on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-24X10GE-S | ACX5000 Right to use 24 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-48X10GE-S | ACX5000 Right to use 48 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-72X10GE-S | ACX5000 Right to use 72 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-8X10GE-S | ACX5000 Right to use 8 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-96X10GE-S | ACX5000 Right to use 96 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-IPVPN | ACX5000 Right to use IP VPN |
ACX5448-AC-AFO | ACX5448, 48 SFP+/SFP ports, 4 QSFP28 ports, redundant fans and AC power supplies; front to back airflow; right to use feature must be ordered separately |
ACX5448-DC-AFO | ACX5448, 48 SFP+/SFP ports, 4 QSFP28 ports, redundant fans and DC power supplies; front to back airflow; right to use feature must be ordered separately |
ACX5448-AC-AFI | ACX5448, 48 SFP+/SFP ports, 4 QSFP28 ports, redundant fans and AC power supplies; back to front airflow; right to use feature must be ordered separately |
ACX5448-DC-AFI | ACX5448, 48 SFP+/SFP ports, 4 QSFP28 ports, redundant fans and DC power supplies; back to front airflow; right to use feature must be ordered separately |
ACX5K-L-104X10GE-S | ACX5000 Right to use 104 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-16X10GE-S | ACX5000 Right to use 16 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-1X10GE-S | ACX5000 Right to use a single 10GbE port on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-24X10GE-S | ACX5000 Right to use 24 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-48X10GE-S | ACX5000 Right to use 48 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-100GE-S | ACX5448 Right to use a single 40GbE/100GbE; enforceable per ACX5448 system |
ACX5K-L-IPVPN | ACX5000 Right to use IP VPN |
ACX5K-L-L2 | ACX5000 Right to use L2 features and IGP protocols (no right to use MPLS and BGP) for sole purpose of network management |
ACX5K-L-IP-MPLS | ACX5000 Right to use IP/MPLS features except IP-VPN |
ACX5448-L-PE | ACX5448 right to use FIB greater than 256K and more than 512 virtual routing and forwarding tables (VRFs), up to equipment limits |
ACX5448-CHASSIS | ACX5448 Chassis spare |
ACX5448-FAN-AFI | ACX5448 Fan tray right |
ACX5448-FAN-AFO | ACX5448 Fan tray left |
ACX5K-L-IPVPN | ACX5000 Right to use IP-VPN |
ACX5K-L-1X10GE-S | ACX5000 Right to use a single 10GbE port on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-8X10GE-S | ACX5000 Right to use 8 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-24X10GE-S | ACX5000 Right to use 24 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-48X10GE-S | ACX5000 Right to use 48 10GbE ports on ACX5000 system; enforceable per ACX5000 system |
ACX5K-L-L2 | ACX5000 Right to use L2 features and IGP protocols (no right to use MPLS and BGP) for sole purpose of network management |
ACX5448-M-AC-AFO | ACX5448-M, 44 SFP+/SFP ports (MACsec), 6 QSFP28 ports, redundant fans and AC power supplies; front to back airflow; right to use feature must be ordered separately |
ACX5448-M-DC-AFO | ACX5448-M, 44 SFP+/SFP ports (MACsec), 6 QSFP28 ports, redundant fans and DC power supplies; front to back airflow; right to use feature must be ordered separately |
ACX5448-M-AC-AFI | ACX5448-M, 44 SFP+/SFP ports (MACsec), 6 QSFP28 ports, redundant fans and AC power supplies; back to front airflow; right to use feature must be ordered separately |
ACX5448-M-DC-AFI | ACX5448-M, 44 SFP+/SFP ports (MACsec), 6 QSFP28 ports, redundant fans and DC power supplies; back to front airflow; right to use feature must be ordered separately |
ACX5448-D-AC-AFO | ACX5448-D, 36 SFP+/SFP ports, 2 CFP2 ports, 2 QSFP28, redundant fans and AC power supplies; front to back airflow; right to use feature must be ordered separately |
ACX5448-D-DC-AFO | ACX5448-D, 36 SFP+/SFP ports, 2 CFP2 ports, 2 QSFP28, redundant fans and DC power supplies; front to back airflow; right to use feature must be ordered separately |
ACX5448-D-AC-AFI | ACX5448-D, 36 SFP+/SFP ports, 2 CFP2 ports, 2 QSFP28, redundant fans and AC power supplies; back to front airflow; right to use feature must be ordered separately |
ACX5448-D-DC-AFI | ACX5448-D, 36 SFP+/SFP ports, 2 CFP2 ports, 2 QSFP28 ports, redundant fans and DC power supplies; back to front airflow; right to use feature must be ordered separately |
ACX5448-M-CHASSIS | ACX5448-M Chassis spare |
ACX5448-D-CHASSIS | ACX5448-D Chassis spare |
ACX5448-D-FAN-AFI | ACX5448 fan tray back to front |
ACX5448-D-FAN-AFO | ACX5448 fan tray front to back |
Software | |
S-ACX-400G-A-5 | ACX5448-D and ACX5448-M software, 5 year subscription Advanced license; per 400G capacity, supports IP/MPLS, timing, CoS, EOAM, telemetry, RFC2544, with up to 256K FIB, 1K L2/L3 VPN |
S-ACX-400G-P-5 | ACX5448-D and ACX5448-M software, 5 year subscription Premium license; per 400G capacity, includes Advanced software subscription license with full platform scale |
S-ACX-400G-A-3 | ACX5448-D and ACX5448-M software, 3 years subscription Advanced license; per 400G capacity, supports IP/MPLS, timing, CoS, EOAM, telemetry, RFC2544, with up to 256K FIB, 1K L2/L3 VPN |
S-ACX-400G-P-3 | ACX5448-D and ACX5448-M software, 3 year subscription premium license; per 400G capacity, includes Advanced software subscription license with full platform scale |
S-ACX-400G-A-1 | ACX5448-D and ACX5448-M software, 1 year subscription Advanced license; per 400G capacity, supports IP/MPLS, timing, CoS, EOAM, telemetry, RFC2544, with up to 256K FIB, 1K L2/L3 VPN (renewal only) |
S-ACX-400G-P-1 | ACX5448-D and ACX5448-M software, 1 year subscription Premium license; per 400G capacity, includes Advanced software subscription license with full platform scale (renewal only) |
