Juniper Networks ACX6000 line of Universal Metro Routers responds to a shift in metro network architectures, where the access and aggregation layers are extending operational intelligence from the service provider edge to the access network. The ACX6000 line simplifies access and aggregation architectures by eliminating unnecessary layers and network overlays, dramatically reducing CapEx and OpEx. Based on architectural simplification and cost reduction, the ACX6000 line gives service providers and enterprises the ability to adopt a true universal metro paradigm. The ACX6000 line also provides high capacity, scalability, and a secure packet optical transport layer while delivering industryleading performance with a wide range of port densities and interface types.Flexibility and upgradability (the ability to mix and match interface types) make the Juniper Networks ACX Series Universal Metro Routers ideal for a wide range of use cases.
ACX Series Product Family

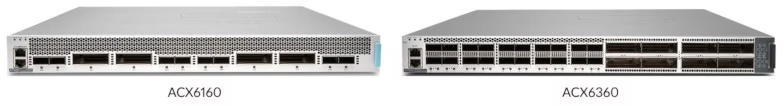

ACX Series Universal Metro Routers offer a wide range of metro solutions, including the ACX500, ACX1000, ACX2000, and ACX4000, as well as the ACX5000 and ACX6000 lines. The ACX6000 line includes two models, each targeted at different applications:
Table 1. ACX6160 and ACX6360 Line of Universal Metro Routers Specifications
Product Number | Description |
System throughput | ACX6160: 1.6/3.2 Tbps ACX6360: 3.6/7.2 Tbps |
Interface support | ●ACX6160: ●ACX6360: |
Dimensions (W x H x D) | 17.36 x 1.72 x 24.40 in (44.09 x 4.37 x 61.98 cm) |
Maximum weight | ACX6160: 24 lb (10.9 kg) ACX6360: 30 lb (13.6 kg) |
Power (DC) | -48 to -60 V DC |
Power (AC) | 100 to 240 V single phase |
Power draw | ACX6160: ACX6360: 756.5 W |
Humidity | 5%-90% RH noncondensing |
Noise level | 0 dB (acoustic noise) |
Operating temperature | 32° to 104° F (0° to 40° C) |
Table 1. ACX6160 and ACX6360 Line of Universal Metro Routers Ordering Information
Product | Description |
ACX6160-T-AC | ACX6160 Optical Transport, supports 8x100GbE QSFP28/QSFP+ client ports, 4×100/200G CFP2-DCO pluggable DWDM optics, redundant fans and redundant AC power supplies, front-to-back airflow |
ACX6160-T-DC | ACX6160 Optical Transport, supports 8x100GbE QSFP28/QSFP+ client ports, 4×100/200G CFP2-DCO pluggable DWDM optics, redundant fans and redundant DC power supplies, front-to-back airflow |
ACX6360-OR-AC | ACX6360 Optical Router configuration, 20x100GbE QSFP28/QSFP+ client ports, 8×100/200G CFP2-DCO pluggable DWDM optics, redundant fans and redundant AC power supplies, front-to-back airflow |
ACX6360-OR-DC | ACX6360 Optical Router configuration, 20x100GbE QSFP28/QSFP+ client ports, 8×100/200G CFP2-DCO pluggable DWDM optics, redundant fans and redundant DC power supplies, front-to-back airflow |
ACX6360-OX-AC | ACX6360 Optical Transport configuration, 20x100GbE QSFP28/QSFP+ client ports, 8×100/200G CFP2-DCO pluggable DWDM optics, redundant fans and redundant AC power supplies, front-to-back airflow |
ACX6360-OX-DC | ACX6360 Optical Transport configuration, 20x100GbE QSFP28/QSFP+ client ports, 8×100/200G CFP2-DCO pluggable DWDM optics, redundant fans and redundant DC power supplies, front-to-back airflow |
