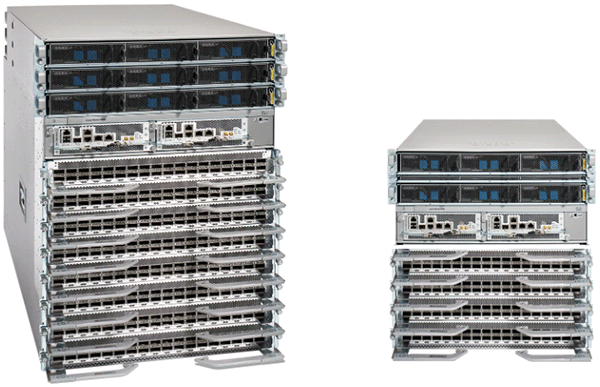

The Cisco Nexus 9800 Series chassis architecture can scale from 57 Tbps to 115 Tbps with a combination of various first-generation line cards and fabric modules. Each line card slot in the chassis can support line cards that offer 400GE or 100GE ports now and higher speeds in the future.
The Cisco Nexus 9800 Series Switch line cards and fabric modules are built with power-efficient, high-performance, and high-capacity Cisco ASICs that support dynamic flowlet load balancing, fully shared on-die packet buffering, and line-rate performance for small packets. The Cisco ASIC also has built-in ingress Virtual Output Queueing (VOQ) capabilities that provide the basis for faster job completion times, which is critical for AI/ML fabrics. The ASIC provides these capabilities without compromising on data-center spine/super-spine features, making the Cisco Nexus 9800 Series Switches an optimized platform to build fabrics that can support high-bandwidth applications and compute-intensive AI/ML workloads across data centers of varying sizes and scales.
Table 1. Cisco Nexus 9800 Series chassis specifications
Description | Cisco Nexus 9808 Switch | Cisco Nexus 9804 Switch |
Number of line-card slots | 8 | 4 |
Number of fabric-module slots | 8 | 8 |
Number of supervisor slots | 2 | 2 |
Number of fan trays | 4 | 4 |
Number of power-supply trays | 3 | 2 |
Number of power supplies | AC and high-voltage power supplies: 9 (3 per tray) DC power supplies: 12 (4 per tray) | AC and high-voltage power supplies: 9 (3 per tray) DC power supplies: 12 (4 per tray) |
Weight | Unloaded: 162 lbs (73 kg) Fully loaded: 658 lbs (299 kg) | Unloaded, 124 lbs (56.36 kg) Fully loaded, 402 lbs (183 kg) |
Dimensions | (H) 28 x (W) 17.45 x (D) 33.73 in. (71.12 x 44.32 x 85.7 cm) | (H) 17.5 x (W) 17.45 x (D) 33 in. (44.45 x 44.32 x 83.82 cm) |
Height | 16 RU | 10 RU |
Table 1. Cisco Nexus 9800 Series Ordering information
Product ID | Description |
N9K-C9808 | Cisco Nexus 9800 8-slot chassis |
N9K-C9800-SUP-A | Cisco Nexus 9800 supervisor (1st Generation) |
N9K-C9808-FM-A | Cisco Nexus 9800 8-slot chassis fabric module (1st Generation) |
N9K-C9808-FAN-A | Cisco Nexus 9800 8-slot chassis fan tray (1st Generation) |
N9K-C9804 | Cisco Nexus 9800 4-slot chassis |
N9K-C9804-FM-A | Cisco Nexus 9800 4-slot chassis fabric module (1st Generation) |
N9K-C9804-FAN-A | Cisco Nexus 9800 4-slot chassis fan tray (1st Generation) |
N9K-X9836DM-A | Cisco Nexus 9800 36-port 400G line card with MACsec |
N9K-X98900CD-A | Cisco Nexus 9800 14-port 400G + 34-port 100G line card |
N9800-HV-TRAY | Cisco Nexus 9800 power-supply tray for AC and HV power supplies |
NXK-HV6.3KW20A-A | Cisco Nexus 9800 6300W 20A AC and HV power supply |
NXK-HV6.3KW30A-A | Cisco Nexus 9800 6300W 30A AC and HV power supply |
N9K-C9800-IN-KIT | Cisco Nexus 9800 installation kit |
N9K-C9800-AR-KIT | Cisco Nexus 9800 adjustable-rail kit |
N9K-C9800-CM-KIT | Cisco Nexus 9800 cable-management kit |
N9K-C9800-DF-KIT | Cisco Nexus 9800 door and filter kit |
N9K-C9800-RMB | Cisco Nexus 9800 rear-mounting brackets |
