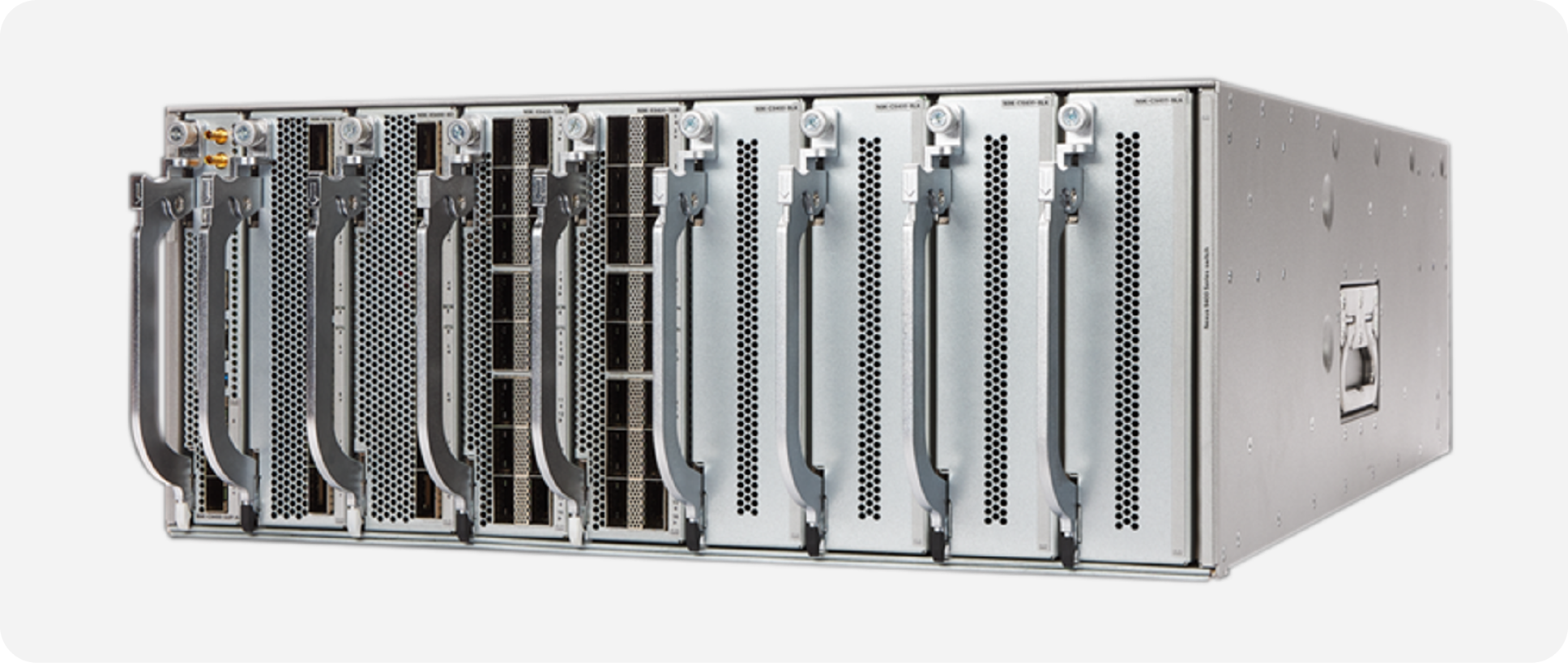

The Cisco Nexus 9400 Series centralized modular switches expand the Cisco Nexus 9000 Series portfolio with a new chassis that supports very high port density 400 Gigabit expansion modules.
As datacenters continue to evolve to support next-generation applications such as machine learning that drive massive growth intra-datacenter traffic bandwidth, datacenter operators require compact, high capacity, and highly efficient switches to upgrade datacenter fabrics. They need security, automation, visibility, analytics, and assurance. Equipped to support this next-generation cloud architecture, the Cisco Nexus 9400 series switches are based on Cisco Cloud Scale technology.
Table 1. Cisco Nexus 9400 series switch chassis specifications
Model | Cisco Nexus 9408 chassis |
Number of LEM slots | 8 |
Number of supervisor slots | 1 |
Dimensions (H x W x D) | 6.97 x 17.30 x 23.62 in |
Weight | 121.25 lb (55 kg) |
Table 2. Cisco Nexus 9400 series system specifications
Description | Specification |
Processor | Intel Broadwell-DE-NS D-1633N, 6C @ 2.5GHz |
DRAM | 32GB DDR4 |
SSD | 128GB |
Console Port | 1x RJ45 1x RS232 |
Management Port | 1x 10/100/1000BASE-T 1x 1/10-Gbps SFP |
USB Port | 1x USB 3.0 |
Table 1. Cisco Nexus 9400 ordering information
Part # | Product Description |
N9K-C9408 | Nexus 9400 Chassis with 8 linecard slots |
N9K-C9400-SUP-A | Nexus 9400 CPU card with PTP, SyncE |
N9K-X9400-8D | Nexus 9400 8p 400G QSFP-DD LEM |
N9K-X9400-16W | Nexus 9400 16p 200G LEM |
N9K-C9400-SW-GX2A | Nexus 9400 Switch Card |
N9K-C9400-ACK | Nexus 9408 Accessory Kit |
N9K-C9400-RMK | Nexus 9408 Rack Mount Kit |
N9K-C9400-FAN-PI | Nexus 9408 fan (port-side intake) |
NXA-PAC-2KW-PI | Nexus 9408 2KW AC Power Supply |
NXA-PDC-2KW-PI | Nexus 9408 2KW DC Power Supply |
NXA-PHV-2KW-PI | Nexus 9408 2KW High-voltage AC/DC Power Supply |
