Product Overview

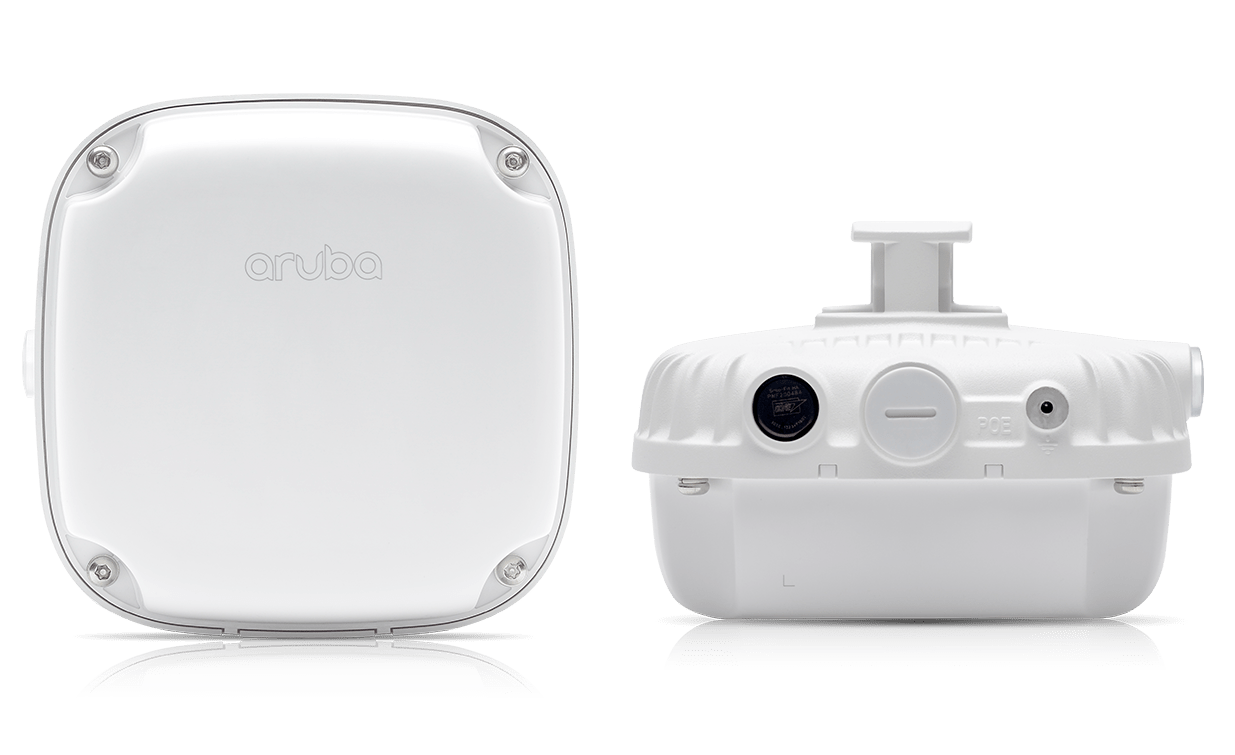

Aruba 360 Series outdoor Wi-Fi 5 access points, Low-cost 802.11ac Wave 2 for outdoor enterprise environments. A Wi-Fi experience designed for harsh outdoor environments, The Aruba 360 Series Wi-Fi 5 delivers cost-effective wireless connectivity to mobile and IoT devices in a wide range of outdoor and warehouse environments.
Cost-effective connectivity for outdoor enterprise environments
Able to survive in harsh outdoor environments and provide connectivity in warehouses and distribution centers, the 360 Series can withstand exposure to extreme temperatures and wind, persistent moisture, precipitation, and dust and salt sprays for extended periods. All electrical interfaces include industrial-strength surge protection.
Secure connectivity
Delivering seamless new protection, the Aruba 360 Series comes equipped with the latest security standard WPA3 and Enhanced Open. End-to-end encryption is ensured through the Aruba Policy Enforcement Firewall, while Dynamic Segmentation automatically enforces consistent policies across wired and wireless networks.
IoT-ready
The 360 Series includes an integrated Bluetooth Low Energy radio to simplify the deployment and management of location services, asset tracking services, security solutions, and IoT sensors. Allowing the 360 Series to be leveraged as an IoT platform for outdoor environments eliminates the need for an overlay infrastructure and additional IT resources.
Flexible management options
Available management solutions include Aruba Central (available in cloud-managed and on-premises options), as well as Aruba AirWave, which supports multi-vendor networks. Access points can be deployed with zero-touch provisioning to reduce deployment time, centralize configuration, and simplify inventory management.
Features
Extreme weather resiliency, Providing low-cost connectivity in warehouses, distribution centers, and mobile and IoT devices, the Aruba 360 Series is ideal for harsh outdoor environments.
Entry-level outdoor and warehouse connectivity with Wi-Fi 5
With a maximum aggregate data rate of 1.2 Gbps (1.167 Gbps), the 360 Series comes with multi-user MIMO (MU-MIMO), four spatial streams (4SS), and support for 80Mhz channel bandwidth (VHT80) to quickly add performance and capacity to existing or wireless networks.
Weather resistant
IP66/67-rated and able to survive in harsh outdoor environments, the 360 Series can withstand exposure to high and low temperatures of -40°C to +55°C ambient in full sun.
Secure infrastructure
The latest version of WPA for enterprise-protected networks brings stronger encryption and authentication.
Best-in-class RF management
Integrated Adaptive Radio Management™ technology manages the 2.4GHz and 5GHz radio bands and ensures that access points stay clear of RF interference.
Dynamic Segmentation
Flexible and scalable, our solution automatically enforces consistent policies across wired and wireless networks.
Hardware variants
Wi-Fi radio specifications
AP type:
outdoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n
2×2 MIMO with two spatial streams and up to 1,266 Mbps wireless data rate
Supported frequency bands (country-specific restrictions apply):
4000 GHz to 2.4835 GHz
150 GHz to 5.250 GHz
250 GHz to 5.350 GHz
470 GHz to 5.725 GHz
725 GHz to 5.875 GHz
Available channels: Dependent upon configured regulatory domain
Dynamic Frequency Selection (DFS) compliant to radar coexistence requirements
Supported radio technologies:
11b: Direct-sequence spread-spectrum (DSSS)
11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
11n/ac: 2×2 MU-MIMO with up to two spatial streams
Supported modulation types:
11b: BPSK, QPSK, CCK
11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted aggregate) transmit power (limited by local regulatory requirements):
4-GHz band: +26 dBm (23 dBm per chain)
5-GHz bands: +25 dBm (22 dBm per chain)
Advanced cellular coexistence (ACC) feature to effectively deal with interference from cellular systems
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay diversity (CDD) for improved downlink RF performance
Short guard interval for 20-MHz, 40-MHz and 80-MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased reliability in signal delivery
802.11ac wave 2 MU-MIMO
Supported data rates (Mbps):
11b: 1, 2, 5.5, 11
11a/g: 6, 9, 12, 18, 24, 36, 48, 54
11n: 6.5 to 300 (MCS0 to MCS15)
11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80
802.11n/ac packet aggregation: A-MPDU, A-MSDU Power
Maximum power consumption: 12.5 watts
Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af-compliant source
Table 1. Aruba 360 Series Outdoor Access Points
Part number | Description |
JX963A | Aruba AP-365 (EG) 802.11n/ac Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
JX964A | Aruba AP-365 (IL) 802.11n/ac Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
JX965A | Aruba AP-365 (JP) 802.11n/ac Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
JX966A | Aruba AP-365 (RW) 802.11n/ac Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
JX967A | Aruba AP-365 (US) 802.11n/ac Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
JX968A | Aruba AP-365 (RW) TAA 802.11n/ac Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
JX969A | Aruba AP-365 (US) TAA 802.11n/ac Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
JX970A | Aruba AP-367 (EG) 802.11n/ac Dual 2×2:2 Radio Integrated Directional Antenna Outdoor AP |
JX971A | Aruba AP-367 (IL) 802.11n/ac Dual 2×2:2 Radio Integrated Directional Antenna Outdoor AP |
JX972A | Aruba AP-367 (JP) 802.11n/ac Dual 2×2:2 Radio Integrated Directional Antenna Outdoor AP |
JX973A | Aruba AP-367 (RW) 802.11n/ac Dual 2×2:2 Radio Integrated Directional Antenna Outdoor AP |
JX974A | Aruba AP-367 (US) 802.11n/ac Dual 2×2:2 Radio Integrated Directional Antenna Outdoor AP |
JX975A | Aruba AP-367 (RW) TAA 802.11n/ac Dual 2×2:2 Radio Integrated Direct Antenna Outdoor AP |
JX976A | Aruba AP-367 (US) TAA 802.11n/ac Dual 2×2:2 Radio Integrated Direct Antenna Outdoor AP |
JX966ACM | Aruba CM AP-365 (RW) 802.11n/ac Dual 2×2:2 Integ Omni Antenna Outdoor AP |
JX967ACM | Aruba CM AP-365 (US) 802.11n/ac Dual 2×2:2 Integ Omni Antenna Outdoor AP |
JX973ACM | Aruba CM AP-367 (RW) 802.11n/ac Dual 2×2:2 Integ Directional Antenna Outdoor AP |
JX974ACM | Aruba CM AP-367 (US) 802.11n/ac Dual 2×2:2 Integ Directional Antenna Outdoor AP |
