Product Overview

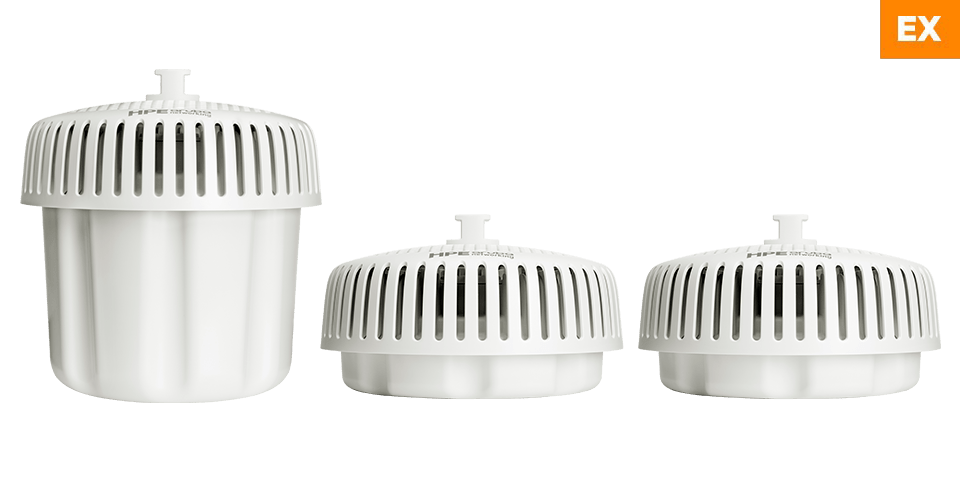

HPE Aruba Networking 670EX Series Hazardous Location Outdoor Access Points, High-performance, Wi-Fi 6E-ready access points for hazardous environments such as oil fields, mining facilities, and potentially explosive environments.
Ruggedized Wi-Fi 6E
Ready for tough conditions and designed to take advantage of the 6 GHz band, which means faster speeds and wider channels for better Wi-Fi performance. Tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver 3.9 Gbps maximum aggregate data rate to support high-bandwidth, low-latency applications such as high-definition video.
Ready for hazardous locations
Hazardous Location (HazLoc) compliant1 and designed to withstand extreme high and low temperatures, persistent moisture, and precipitation. Fully sealed to keep out airborne contaminants and electrical interfaces include industrial strength surge protection. Available with choice of internal antenna (omni, directional, or point-to-point) to optimize wireless coverage.
IoT ready
Integrated high-power Bluetooth and 802.15.4 radios for Zigbee support make it easier to deploy and manage enterprise and industrial IoT, including asset tracking services, security solutions, and sensors. Advanced IoT coexistence (AIC) helps Wi-Fi, Bluetooth and Zigbee radios operate at maximum capacity without interference.
Location aware
Self-locating with embedded GPS receiver and operating as standard power (SP) devices requiring an automated frequency coordination service (AFC) to protect incumbent outdoor services.
Efficient and secure
Wi-Fi 6E extends the 802.11ax standard to the 6GHz band. All the efficiency and security enhancements including orthogonal frequency-division multiple access (OFDMA), multi-user MIMO, enhanced open, and WPA3 are supported. The 670 Series APs also offer client optimization, automated radio frequency management, and intelligent power monitoring.
Features
Wi-Fi 6E APs designed for the harshest outdoor and hazardous indoor environments such as oil rigs, industrial manufacturing, and transportation sites.
6 GHz support
Tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver 3.9 Gbps maximum combined peak data rate.
Standard power (SP) device operations
Self-locating with embedded GPS receiver and will operate as standard power (SP) devices pending per country certification and approval.
IP66/67 rated for hard outdoor environments
Purpose built to survive in the harshest outdoor environments and extreme temperatures (-40 to +70˚ C).
Class 1 Division 2 and ATEX Zone 2 certified
For the most extreme indoor and outdoor areas with ignitable concentrations of flammable gases, vapors, or liquids.
High-power Bluetooth and Zigbee radios
Simplified deployment and management of IoT devices for industrial IoT and manufacturing environments.
Multi-gigabit Ethernet speed
Flexible and fast wired connectivity with 2.5GbE port and 1GbE SFP port.
Hardware variants
Wi-Fi radio specifications
AP type: Outdoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2×2 MIMO
2.4 GHz radio: Two spatial stream single user (SU) MIMO for up to
574 Mbps wireless data rate with 2SS HE40 802.11ax client devices
5 GHz radio: Two spatial stream single user (SU) MIMO for up to 1.2 Gbps wireless data rate with 2SS HE80 802.11ax client devices
6 GHz radio: Two spatial stream single user (SU) MIMO for up to 2.4 Gbps wireless data rate with 2SS HE160 802.11ax client devices
Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 8 for the 6GHz radio)
Supported frequency bands (country-specific restrictions apply):
400 to 2.4835 GHz ISM
150 to 5.250 GHz U-NII-1
250 to 5.350 GHz U-NII-2
470 to 5.725 GHz U-NII-2E
725 to 5.850 GHz U-NII-3/ISM
850 to 5.895 GHz U-NII-4
925 to 6.425 GHz U-NII-5
425 to 6.525 GHz U-NII-6
525 to 6.875 GHz U-NII-7
875 to 7.125 GHz U-NII-8
Available bands and channels: Dependent on configured regulatory domain (country)
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5 GHz band
Supported radio technologies:
11b: Direct-sequence spread-spectrum (DSSS)
11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units (37 for the 6GHz radio)
Supported Modulation Types
11b: BPSK, QPSK, CCK
11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256-QAM (proprietary extension)
11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension)
11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM
802.11n high-throughput (HT) support: HT20/40
802.11ac very high throughput (VHT) support: VHT20/40/80
802.11ax high efficiency (HE) support: HE20/40/80/160
Supported data rates (Mbps):
11b: 1, 2, 5.5, 11
11a/g: 6, 9, 12, 18, 24, 36, 48, 54
11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM (proprietary extension)
11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024-QAM (MCS10 and MCS11, proprietary extension)
11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
11ax (6GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)
802.11n/ac packet aggregation: A-MPDU, A-MSDU
Transmit power: Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements)
Per radio/band (2.4 GHz/5 GHz/6 GHz): +25 dBm (18 dBm per chain)
Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
Advanced cellular coexistence (ACC) minimizes the impact of interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high- efficiency error correction and increased throughput
Transmit beamforming (TxBF) for increased signal reliability and range
802.11ax Target Wait Time (TWT) to support low-power client devices
802.11mc Fine Timing Measurement (FTM) for precision distance ranging
Table 1. HPE Aruba 670EX Series HazLoc Access Points
Part number | Description |
S0Q50A | HPE Aruba Networking AP-675EX (US) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional HazLoc AP |
S0Q51A | HPE Aruba Networking AP-675EX (RW) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional HazLoc AP |
S0Q52A | HPE Aruba Networking AP-675EX (JP) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional HazLoc AP |
S0Q53A | HPE Aruba Networking AP-675EX (IL) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional HazLoc AP |
S0Q54A | HPE Aruba Networking AP-675EX (EG) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional HazLoc AP |
S0Q55A | HPE Aruba Networking AP-677EX (US) Tri Radio 2×2 Wi-Fi 6E Internal Directional HazLoc AP |
S0Q56A | HPE Aruba Networking AP-677EX (RW) Tri Radio 2×2 Wi-Fi 6E Internal Directional HazLoc AP |
S0Q57A | HPE Aruba Networking AP-677EX (JP) Tri Radio 2×2 Wi-Fi 6E Internal Directional HazLoc AP |
S0Q58A | HPE Aruba Networking AP-677EX (IL) Tri Radio 2×2 Wi-Fi 6E Internal Directional HazLoc AP |
S0Q59A | HPE Aruba Networking AP-677EX (EG) Tri Radio 2×2 Wi-Fi 6E Internal Directional HazLoc AP |
S0Q60A | HPE Aruba Networking AP-679EX (US) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional HazLoc AP |
S0Q61A | HPE Aruba Networking AP-679EX (RW) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional HazLoc AP |
S0Q62A | HPE Aruba Networking AP-679EX (JP) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional HazLoc AP |
S0Q63A | HPE Aruba Networking AP-679EX (IL) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional HazLoc AP |
S0Q64A | HPE Aruba Networking AP-679EX (EG) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional HazLoc AP |
