Product Overview

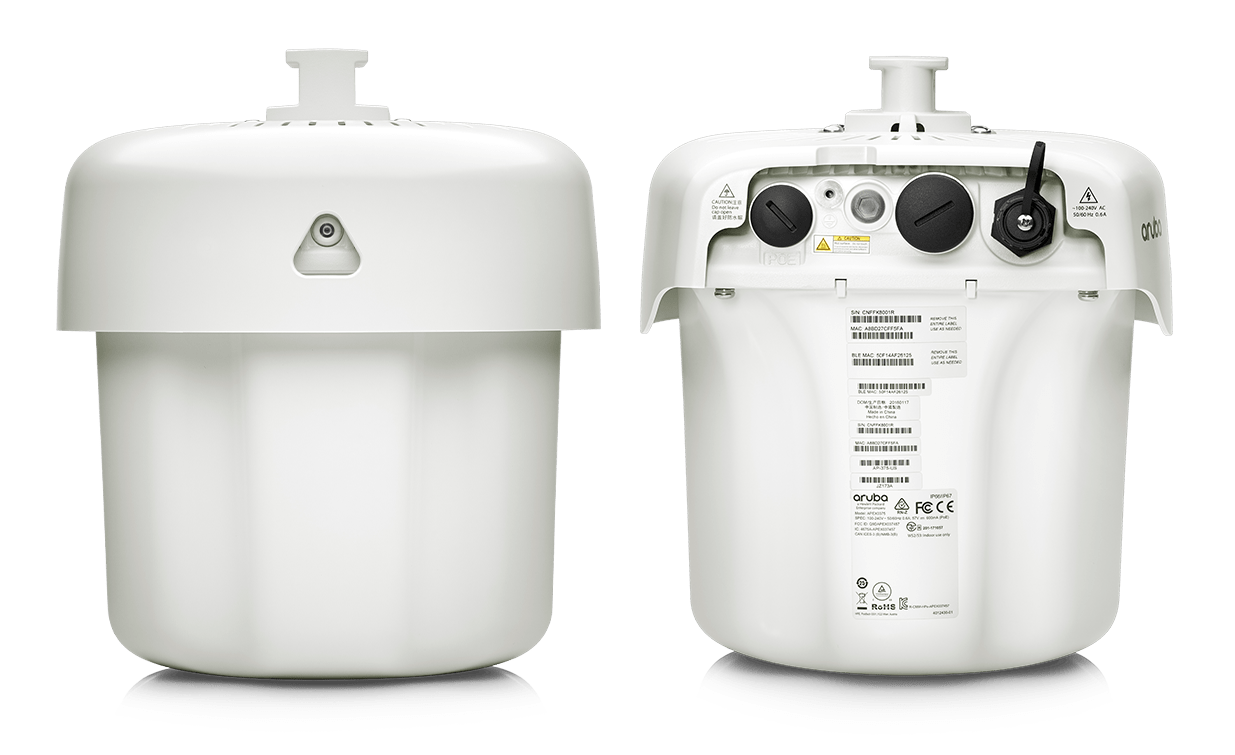

Aruba 370 Series outdoor Wi-Fi 5 access points, Weatherproof and temperature-hardened, the Aruba 370 Series 802.11ac Wave 2 access points deliver multi-gigabit Wi-Fi to outdoor and environmentally challenging locations. For outdoor and extreme environments, This high-performance access point is perfect for high-density mobile and IoT environments.
Extreme weather resilience
Able to survive in harsh outdoor environments, the 370 Series APs can withstand exposure to high and low temperature extremes, wind speeds up to 165 mph, tolerate persistent moisture, precipitation, and dust and salt sprays for extended periods. Additionally, all electrical interfaces include industrial-strength surge protection.
Simple to buy, simple to deploy
The 370 Series APs are as simple to install as an outdoor video camera and feature integrated antenna options for easy deployment.
Integrated Bluetooth option
The 370 Series APs have an integrated BLE Beacon to simplify the management of IoT devices.
Flexible management options
Available management solutions include Aruba Central (available in cloud-managed and on-premises options), as well as Aruba AirWave, which supports multi-vendor networks. Access points can be deployed with zero-touch provisioning to reduce deployment time, centralize configuration, and simplify inventory management.
Features
Industrial design for harsh indoor and outdoor environments, The 370 Series APs deliver multi-gigabit Wi-Fi to outdoor and environmentally challenging locations.
High-performance for outdoor environments
With a maximum aggregate data rate of over 2 Gbps, the Wi-Fi 370 Series comes with MU-MIMO, four spatial streams, and optional 160MHz to add performance and capacity.
Dynamic Segmentation
Automatically enforces real-time, device-level access policies on Aruba wired and wireless networks for improved network security and simplicity.
Intelligent app visibility and control
AppRF technology leverages deep-packet inspection to classify and block, prioritize, or limit bandwidth for 1,000s of enterprise apps or groups of apps.
Hardened, industrial design
Extends the temperature range capabilities of indoor access points for environments that lack heating and cooling. The 370 Series APs also provide sealed connector interfaces to protect against dust and moisture.
Zero-touch provisioning
Access points can be factory-shipped and zero-touch provisioned through Aruba Central or AirWave using a cloud-based service to reduce deployment time, centralize configuration, and manage inventory.
Best in-class RF management
Integrated AirMatch technology manages the 2.4GHz and 5GHz radio bands and actively optimizes the RF environment, including channel width, channel selection, and transmit power.
Hardware variants
Wi-Fi radio specifications
AP type:
Outdoor hardened, dual radio, 5 GHz 802.11ac 4×4 MIMO and 2.4 GHz 802.11n 2×2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5 GHz:
Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously
Four spatial stream SingleUser (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4×4 VHT80 or 2×2 VHT160 client devices
2.4 GHz:
Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2×2 HT40 client devices
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
400 to 2.4835 GHz
150 to 5.250 GHz
250 to 5.350 GHz
470 to 5.725 GHz
725 to 5.850 GHz
Available channels: Dependent on configured regulatory domain.
Dynamic frequency selection (DFS) maximizes the use of available RF spectrum.
Supported radio technologies:
11b: Direct-sequence spread-spectrum (DSSS)
11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
11b: BPSK, QPSK, CCK
11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
4 GHz band: +22 dBm per chain, +25dBm aggregate (2×2)
5 GHz band: +22 dBm per chain, +28dBm aggregate (4×4)
Note: conducted transmit power levels exclude antenna gain.
Maximum EIRP (limited by local regulatory requirements):
4 GHz band:
374: 25 + Antenna Gain
375: 29 dBm EIRP
377: 31.4 dBm EIRP
5 GHz band:
374: 28 + Antenna Gain + TxBF Gain
375: 35.6 dBm EIRP
377: 36 dBm EIRP
Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks.
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20-MHz, 40-MHz, 80-MHz and 160-MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
Supported data rates (Mbps):
11b: 1, 2, 5.5, 11
11a/g: 6, 9, 12, 18, 24, 36, 48, 54
11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
11n (5GHz): 6.5 to 600 (MCS0 to MCS31)
11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80/160
802.11n/ac packet aggregation: A-MPDU, A-MSDU
Table 1. Aruba 370 Series Unified Outdoor Access Points
Part number | Description |
JZ162A | Aruba AP-374 (RW) 802.11n/ac Dual 2×2:2/4×4:4 Radio 6xNf Connectors Outdoor AP |
JZ163A | Aruba AP-374 (US) 802.11n/ac Dual 2×2:2/4×4:4 Radio 6xNf Connectors Outdoor AP |
JZ159A | Aruba AP-374 (EG) 802.11n/ac Dual 2×2:2/4×4:4 Radio 6xNf Connectors Outdoor AP |
JZ160A | Aruba AP-374 (IL) 802.11n/ac Dual 2×2:2/4×4:4 Radio 6xNf Connectors Outdoor AP |
JZ161A | Aruba AP-374 (JP) 802.11n/ac Dual 2×2:2/4×4:4 Radio 6xNf Connectors Outdoor AP |
JZ172A | Aruba AP-375 (RW) 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Omni Antenna Outdoor AP |
JZ173A | Aruba AP-375 (US) 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Omni Antenna Outdoor AP |
JZ169A | Aruba AP-375 (EG) 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Omni Antenna Outdoor AP |
JZ170A | Aruba AP-375 (IL) 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Omni Antenna Outdoor AP |
JZ171A | Aruba AP-375 (JP) 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Omni Antenna Outdoor AP |
JZ182A | Aruba AP-377 (RW) 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Directional Antenna Outdoor AP |
JZ183A | Aruba AP-377 (US) 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Directional Antenna Outdoor AP |
JZ179A | Aruba AP-377 (EG) 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Directional Antenna Outdoor AP |
JZ180A | Aruba AP-377 (IL) 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Directional Antenna Outdoor AP |
JZ181A | Aruba AP-377 (JP) 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Directional Antenna Outdoor AP |
Table 2. Aruba 370 Series Unified Outdoor Access Points TAA
Part number | Description |
JZ167A | Aruba AP-374 (RW) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio 6xNf Connectors Outdoor AP |
JZ168A | Aruba AP-374 (US) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio 6xNf Connectors Outdoor AP |
JZ164A | Aruba AP-374 (EG) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio 6xNf Connectors Outdoor AP |
JZ165A | Aruba AP-374 (IL) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio 6xNf Connectors Outdoor AP |
JZ166A | Aruba AP-374 (JP) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio 6xNf Connectors Outdoor AP |
JZ177A | Aruba AP-375 (RW) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Omni Antenna Outdoor AP |
JZ178A | Aruba AP-375 (US) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Omni Antenna Outdoor AP |
JZ174A | Aruba AP-375 (EG) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Omni Antenna Outdoor AP |
JZ175A | Aruba AP-375 (IL) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Omni Antenna Outdoor AP |
JZ176A | Aruba AP-375 (JP) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio Integrated Omni Antenna Outdoor AP |
JZ187A | Aruba AP-377 (RW) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio Integ Directional Antenna Outdoor AP |
JZ188A | Aruba AP-377 (US) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio Integ Directional Antenna Outdoor AP |
JZ184A | Aruba AP-377 (EG) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio Integ Directional Antenna Outdoor AP |
JZ185A | Aruba AP-377 (IL) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio Integ Directional Antenna Outdoor AP |
JZ186A | Aruba AP-377 (JP) TAA 802.11n/ac Dual 2×2:2/4×4:4 Radio Integ Directional Antenna Outdoor AP |
JZ172ACM | Aruba CM AP-375 (RW) 802.11n/ac Dual 2×2:2/4×4:4 Integ Omni Antenna Outdoor AP |
JZ173ACM | Aruba CM AP-375 (US) 802.11n/ac Dual 2×2:2/4×4:4 Integ Omni Antenna Outdoor AP |
JZ182ACM | Aruba CM AP-377 (RW) 802.11n/ac Dual 2×2:2/4×4:4 Integ Directional Antenna Outdoor AP |
JZ183ACM | Aruba CM AP-377 (US) 802.11n/ac Dual 2×2:2/4×4:4 Integ Directional Antenna Outdoor AP |
