Product Overview

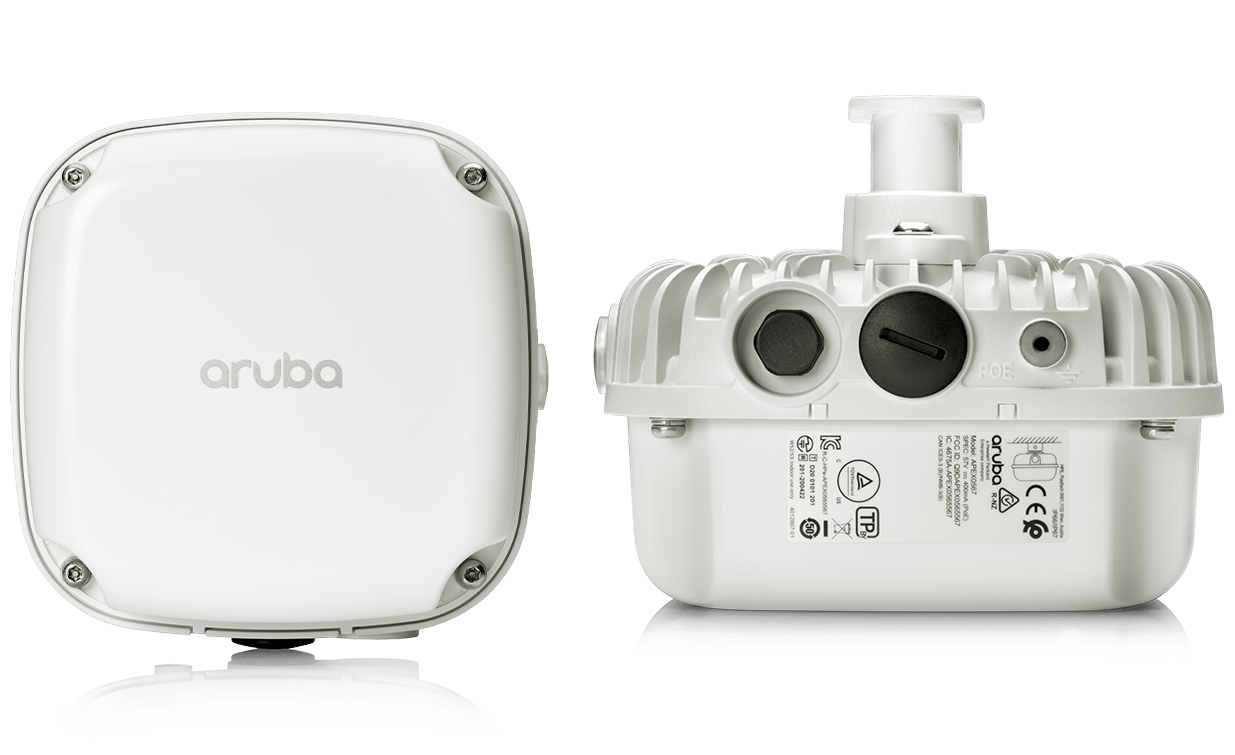

HPE Aruba Networking 560 Series Wi-Fi 6 Access Point, Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments. Cost-effective Wi-Fi 6 outdoors
Entry-level outdoor connectivity in environmentally challenging locations. Industrial-strength surge protection. Endures extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and max 165 mph wind speeds.
Ultimate efficiency
Supporting higher speed and higher user densities, the 560 Series APs maximize performance and efficiency with support for OFDMA and MU-MIMO technologies, enabling the most efficient communication between the client and access point.
IoT and location-ready
HPE Aruba Networking Wi-Fi 6 supports 802.15.4/Zigbee, Bluetooth, and third party overlays to simplify the deployment and management of IoT services, asset-tracking services, security solutions, and IoT sensors. Ideal for IoT infrequent communications.
Simple and secure access
Enforces built-in policy firewall (layer 7) for each new client on the network and utilizes HPE Aruba Networking ClearPass Policy Manager for centralized policy management. For enhanced security, the 560 Series APs provide storage of credentials, keys, and booting.
Features
Groundbreaking Wi-Fi 6 capabilities, Supports wired and wireless connectivity, in a single device, for up to 1.5 Gbps wireless throughput and 256 associated clients per radio.
1.5 Gbps maximum speed (HE80/HE20)
Delivers higher speed and reliability for environmentally challenging work and indoor environments.
Wi-Fi 6 for OFDMA and WPA3
Handles multiple clients regardless of device or traffic type, plus WPA3 and Enhanced Open increases enterprise security, plus Client Match eliminates sticky client issues.
IoT-ready Bluetooth 5 and 802.15.4/Zigbee support
Simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.
Dynamic Segmentation and policy-enforcement firewalls
Enforces (automatically) consistent policies across all networks, keeping users and devices secure.
AI-powered, Wi-Fi radio frequency RF with AirMatch
Utilizes AI learning, Air Match provides automated RF optimization and looks at analytics across the entire network.
Air Slice for SLA-grade performance
Guarantees a predictable user experience, prioritizing traffic and arrival of time-sensitive data with Air Slice application.
Hardware variants
Wi-Fi radio specifications
AP type:
Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2×2 MIMO and 2.4 GHz 2×2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5GHz:
Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously
2.4GHz:
Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously
Up to 256 associated client devices per radio
Up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
400 to 2.4835 GHz (ISM)
150 to 5.250 GHz (U-NII-1)
250 to 5.350 GHz (U-NII-2A)
470 to 5.725 GHz (U-NII-2C)
725 to 5.850 GHz (U-NII-3/ISM)
850 to 5.875 GHz (U-NII-4)
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
11b: Direct-sequence spread-spectrum (DSSS)
11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)
Supported modulation types:
11b: BPSK, QPSK, CCK
11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80
802.11ax high efficiency (HE) support: HE20/40/80
Supported data rates (Mbps):
11b: 1, 2, 5.5, 11
11a/g: 6, 9, 12, 18, 24, 36, 48, 54
11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM
11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM
11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
802.11n/ac/ax Packet aggregation: A-MPDU, A-MSDU
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
4 GHz band: +23 dBm per chain, +26 dBm aggregate (2×2)
5 GHz band: +23 dBm per chain, +26 dBm aggregate (2×2)
Note: conducted transmit power levels exclude antenna gain.
Maximum EIRP (limited by local regulatory requirements):
4 GHz band:
565: 29.2 dBm EIRP
567: 33 dBm EIRP
5 GHz band:
565: 31.4 dBm EIRP
567: 32.7 dBm EIRP
Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) to enable the use of multiple transmit antennas
Short guard interval for 20-MHz, 40-MHz, and 80-MHz
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
802.11mc Fine Timing Measurement (FTM): for precision distance ranging
Table 1. HPE Aruba 560 Series Unified Outdoor Access Points
Part number | Description |
R4W40A | HPE Aruba Networking AP-565 (EG) 802.11ax Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
R4W41A | HPE Aruba Networking AP-565 (IL) 802.11ax Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
R4W42A | HPE Aruba Networking AP-565 (JP) 802.11ax Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
R4W43A | HPE Aruba Networking AP-565 (RW) 802.11ax Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
R4W44A | HPE Aruba Networking AP-565 (US) 802.11ax Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
R4W45A | HPE Aruba Networking AP-567 (EG) 802.11ax Dual 2×2:2 Radio Integrated Directional Antenna Outdoor AP |
R4W46A | HPE Aruba Networking AP-567 (IL) 802.11ax Dual 2×2:2 Radio Integrated Directional Antenna Outdoor AP |
R4W47A | HPE Aruba Networking AP-567 (JP) 802.11ax Dual 2×2:2 Radio Integrated Directional Antenna Outdoor AP |
R4W48A | HPE Aruba Networking AP-567 (RW) 802.11ax Dual 2×2:2 Radio Integrated Directional Antenna Outdoor AP |
R4W49A | HPE Aruba Networking AP-567 (US) 802.11ax Dual 2×2:2 Radio Integrated Directional Antenna Outdoor AP |
Table 2. HPE Aruba 560 Series Unified Outdoor Access Points TAA
Part number | Description |
R4W50A | HPE Aruba Networking AP-565 (EG) TAA 802.11ax Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
R4W51A | HPE Aruba Networking AP-565 (IL) TAA 802.11ax Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
R4W52A | HPE Aruba Networking AP-565 (JP) TAA 802.11ax Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
R4W53A | HPE Aruba Networking AP-565 (RW) TAA 802.11ax Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
R4W54A | HPE Aruba Networking AP-565 (US) TAA 802.11ax Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP |
R4W55A | HPE Aruba Networking AP-567 (EG) TAA 802.11ax Dual 2×2:2 Radio Integ Directional Antenna Outdoor AP |
R4W56A | HPE Aruba Networking AP-567 (IL) TAA 802.11ax Dual 2×2:2 Radio Integ Directional Antenna Outdoor AP |
R4W57A | HPE Aruba Networking AP-567 (JP) TAA 802.11ax Dual 2×2:2 Radio Integ Directional Antenna Outdoor AP |
R4W58A | HPE Aruba Networking AP-567 (RW) TAA 802.11ax Dual 2×2:2 Radio Integ Directional Antenna Outdoor AP |
R4W59A | HPE Aruba Networking AP-567 (US) TAA 802.11ax Dual 2×2:2 Radio Integ Directional Antenna Outdoor AP |
