Product Overview

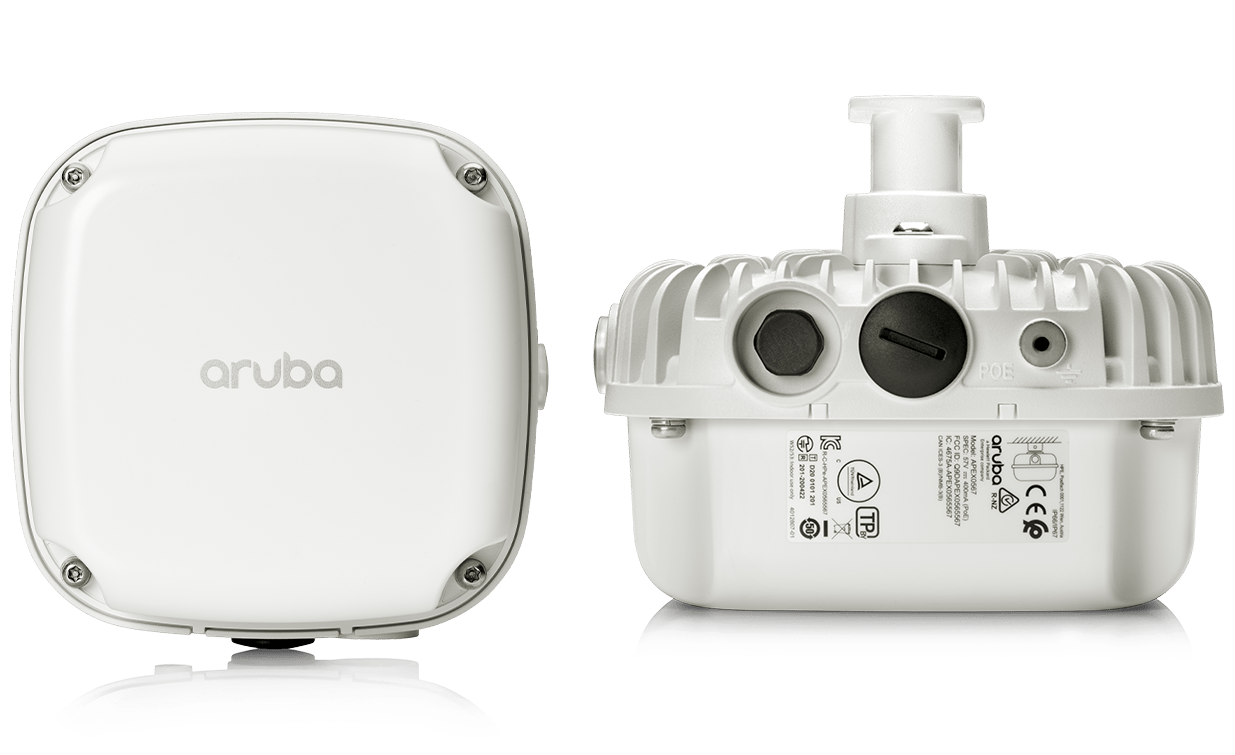

Aruba 560EX Series Wi-Fi 6 HazLoc Access Point (802.11ax), Aruba 560EX Series APs deliver Wi-Fi 6 performance and security for the most extreme conditions requiring Class 1 Division 2 or ATEX Zone 2 certification. The 560EX Series Hazardous Location APs feature Class 1 Division 2 and ATEX Zone 2 certification to operate in hazardous locations like oil and gas and potentially explosive environments – with Wi-Fi 6 to support critical access and IoT functionality.
Ultimate efficiency
Supporting higher speed and higher user densities, the 560EX Series APs maximize performance and efficiency with support for OFDMA and MU-MIMO technologies, enabling the most efficient communication between the client and access point.
IoT and location-ready
Aruba Wi-Fi 6 supports 802.15.4/Zigbee, Bluetooth, and third-party overlays to simplify the deployment and management of IoT services, asset-tracking services, security solutions, and IoT sensors. Ideal for IoT infrequent communications.
Simple and secure access
Enforces built-in policy firewall (layer 7) for each new client on the network and utilizes Aruba ClearPass Policy Manager for centralized policy management. For enhanced security, the 560EX Series APs provide storage of credentials, keys, and booting.
Features
Groundbreaking Wi-Fi 6 capabilities, Supports wired and wireless connectivity, in a single device, for up to 1.5 Gbps wireless throughput and 256 associated clients per radio.
1.5 Gbps maximum speed (HE80/HE20)
Delivers higher speed and reliability for hazardous locations like oil and gas and potentially explosive environments.
Wi-Fi 6 for OFDMA and WPA3
Handles multiple clients regardless of device or traffic type, plus WPA3 and Advanced Open increases enterprise security.
IoT-ready Bluetooth 5 and 802.15.4/Zigbee support
Simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.
Dynamic Segmentation and policy-enforcement firewalls
Enforces (automatically) consistent policies across all networks, keeping users and devices secure.
AI-powered, Wi-Fi radio frequency RF with AirMatch
Utilizes AI learning, Air Match provides automated RF optimization and looks at analytics across the entire network.
Air Slice for SLA-grade performance
Guarantees a predictable user experience, prioritizing traffic and arrival of time-sensitive data with Air Slice application.
Hardware variants
Wi-Fi radio specifications
AP type:
Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2×2 MIMO and 2.4 GHz 2×2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5GHz:
Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously
2.4GHz:
Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously
Up to 256 associated client devices per radio
Up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
400 to 2.4835 GHz (ISM)
150 to 5.250 GHz (U-NII-1)
250 to 5.350 GHz (U-NII-2A)
470 to 5.725 GHz (U-NII-2C)
725 to 5.850 GHz (U-NII-3/ISM)
850 to 5.875 GHz (U-NII-4)
Maximum EIRP (limited by local regulatory requirements):
4 GHz band:
565: 29.2 dBm EIRP
567: 33 dBm EIRP
5 GHz band:
565: 31.4 dBm EIRP
567: 32.7 dBm EIRP
Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) to enable the use of multiple transmit antennas
Short guard interval for 20-MHz, 40-MHz, and 80-MHz
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
802.11mc Fine Timing Measurement (FTM): for precision distance ranging
Table 1. HPE Aruba 560EX Series Unified Outdoor HazLoc Access Points
Part number | Description |
R4W62A | Aruba AP-565EX (RW) 802.11ax Dual 2×2:2 Radio Internal Omni Antenna Outdoor HazLoc AP |
R4W63A | Aruba AP-565EX (US) 802.11ax Dual 2×2:2 Radio Internal Omni Antenna Outdoor HazLoc AP |
R4W60A | Aruba AP-565EX (EG) 802.11ax Dual 2×2:2 Radio Internal Omni Antenna Outdoor Hazloc AP |
R4W28A | Aruba AP-565EX (IL) 802.11ax Dual 2×2:2 Radio Internal Omni Antenna Outdoor HazLoc AP |
R4W61A | Aruba AP-565EX (JP) 802.11ax Dual 2×2:2 Radio Internal Omni Antenna Outdoor HazLoc AP |
R4W66A | Aruba AP-567EX (RW) 802.11ax Dual 2×2:2 Radio Internal Directional Ant Outdoor HazLoc AP |
R4W67A | Aruba AP-567EX (US) 802.11ax Dual 2×2:2 Radio Internal Directional Ant Outdoor HazLoc AP |
R4W64A | Aruba AP-567EX (EG) 802.11ax Dual 2×2:2 Radio Internal Directional Ant Outdoor HazLoc AP |
R4W29A | Aruba AP-567EX (IL) 802.11ax Dual 2×2:2 Radio Internal Directional Ant Outdoor HazLoc AP |
R4W65A | Aruba AP-567EX (JP) 802.11ax Dual 2×2:2 Radio Internal Directional Ant Outdoor HazLoc AP |
