Product Overview

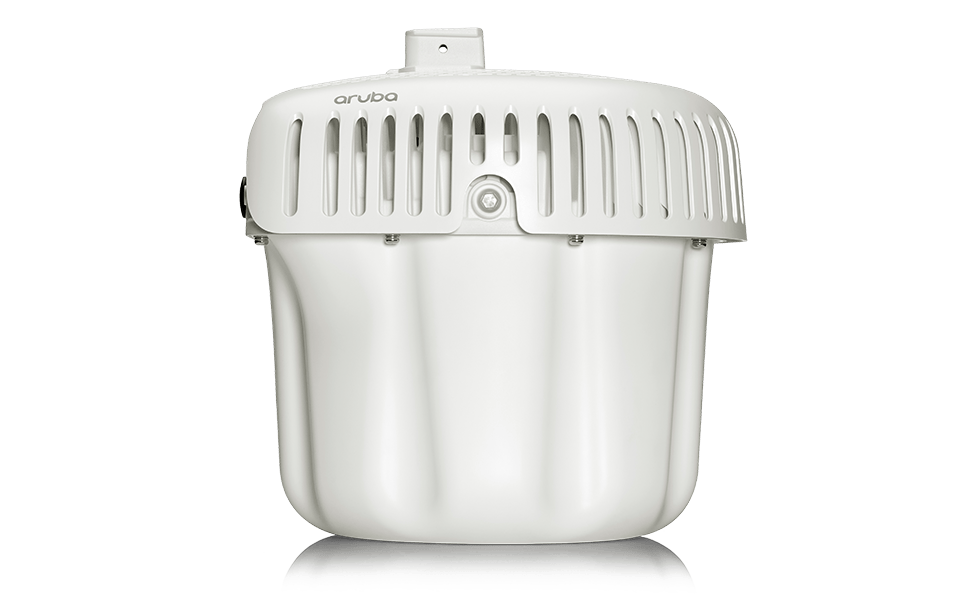

Aruba 580 Series Outdoor Access Points, Ultimate Wi-Fi 6 performance with high power Bluetooth and Zigbee radios and 5 Gbps Ethernet for the most demanding outdoor locations.
Outdoor connectivity you can depend on
Built to survive the harshest environments, the Aruba 580 Series AP is IP66/67 rated to survive high wind, extreme temperatures, and moisture – all backed by a limited lifetime warranty.
IoT ready
The Aruba 580 Series supports the most demanding industrial IoT environments and manufacturing facilities with high-power Bluetooth/Zigbee and advanced IoT coexistence to operate at maximum capacity without interference.
Seamless Wi-Fi 6 connectivity
With optimized connectivity of 2.97 Gbps combined aggregate data rates to support high-density mobile and IoT demands, the Aruba 580 Series is Wi-Fi 6 certified for greater efficiency and better performance to future proof your investment.
Simple and secure
Integral part of SASE and zero trust security, these APs protect wireless traffic, authenticate users, and assign role-based access policies with Dynamic Segmentation, WPA3 and Enhanced Open.
Features
The ultimate in Wi-Fi 6 performance for the harshest outdoor environments, Our only outdoor AP to feature high power Bluetooth and Zigbee, plus multi-gigabit connectivity for demanding environments including public venues.
IP66/67 Rated for Harsh Outdoor Environments
Purpose built to survive in the harshest outdoor environments and extreme temperatures (-40 to +65˚ C).
High power Bluetooth 5 and 802.15.4/Zigbee
Simplified deployment and management of IoT devices for Industrial IoT and manufacturing environments.
Wi-Fi 6 supported
Improve efficiency and security with Wi-Fi 6 capabilities including MU-MIMO, OFDMA, WPA3 and Enhanced Open.
Automatic role-based access enforcement
Centrally configure and automatically enforce role-based policies across wired and wireless networks using Dynamic Segmentation and Policy Enforcement Firewalls.
5 Gbps Smart Rate Ethernet
With 5 Gbps capacity, the Aruba 580 Series meets the needs of high-density environments and provides business continuity.
Powerful power options
Option to connect using direct AC power – no adapter required – along with PSE+ and PoE.
Hardware variants
Wi-Fi radio specifications
AP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5GHz and 2.4GHz 802.11ax 4×4 MIMO
5GHz radio: Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously
2.4GHz radio: Four spatial stream Single User (SU) MIMO for up to 1,150Mbps wireless data rate with individual 4SS HE40 802.11ax client devices or with two 2SS HE40 802.11ax MU-MIMO capable client devices simultaneously
Support for up to 1,024 associated client devices per radio (typical recommended limit for active outdoor clients is 100-200 depending on distance), and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
400 to 2.4835 GHz (ISM)
150 to 5.250 GHz (U-NII-1)
250 to 5.350 GHz (U-NII-2A)
470 to 5.725 GHz (U-NII-2C)
725 to 5.850 GHz (U-NII-3/ISM)
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
11b: Direct-sequence spread-spectrum (DSSS)
11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 37 resource units (for an 80MHz channel)
Supported modulation types:
11b: BPSK, QPSK, CCK
11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11n high-throughput (HT) support: HT20/40
802.11ac very high throughput (VHT) support: VHT20/40/80/160
802.11ax high efficiency (HE) support: HE20/40/80/160
Supported data rates (Mbps):
11b: 1, 2, 5.5, 11
11a/g: 6, 9, 12, 18, 24, 36, 48, 54
11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM
11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM
11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)
11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)
802.11n/ac packet aggregation: A-MPDU, A-MSDU
Transmit power: Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
4 GHz band: +29 dBm (23dBm per chain)
5 GHz band: +28 dBm (22 dBm per chain)
Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
802.11ax Target Wait Time (TWT) to support low-power client devices
Advanced IoT Existence (AIC) allows for concurrent operation of the IoT and 2.4Ghz radios without issue
802.11mc Fine Timing Measurement (FTM): for precision distance ranging
Table 1. HPE Aruba 580 Series Outdoor Access Points
Part number | Description |
R7S99A | HPE Aruba Networking AP-584 (US) Dual Radio 4×4:4 802.11ax External Antennas Unified Outdoor AP |
R7T00A | HPE Aruba Networking AP-584 (RW) Dual Radio 4×4:4 802.11ax External Antennas Unified Outdoor AP |
R7T01A | HPE Aruba Networking AP-584 (EG) Dual Radio 4×4:4 802.11ax External Antennas Unified Outdoor AP |
R7T02A | HPE Aruba Networking AP-584 (IL) Dual Radio 4×4:4 802.11ax External Antennas Unified Outdoor AP |
R7T03A | HPE Aruba Networking AP-584 (JP) Dual Radio 4×4:4 802.11ax External Antennas Unified Outdoor AP |
R7T04A | HPE Aruba Networking AP-585 (US) Dual Radio 4×4:4 802.11ax Internal Omni Antennas Unified Outdoor AP |
R7T05A | HPE Aruba Networking AP-585 (RW) Dual Radio 4×4:4 802.11ax Internal Omni Antennas Unified Outdoor AP |
R7T06A | HPE Aruba Networking AP-585 (EG) Dual Radio 4×4:4 802.11ax Internal Omni Antennas Unified Outdoor AP |
R7T07A | HPE Aruba Networking AP-585 (IL) Dual Radio 4×4:4 802.11ax Internal Omni Antennas Unified Outdoor AP |
R7T08A | HPE Aruba Networking AP-585 (JP) Dual Radio 4×4:4 802.11ax Internal Omni Antennas Unified Outdoor AP |
R7T09A | HPE Aruba Networking AP-587 (US) Dual Radio 4×4:4 802.11ax Internal Directional Antennas Unified Outdoor AP |
R7T10A | HPE Aruba Networking AP-587 (RW) Dual Radio 4×4:4 802.11ax Internal Directional Antennas Unified Outdoor AP |
R7T11A | HPE Aruba Networking AP-587 (EG) Dual Radio 4×4:4 802.11ax Internal Directional Antennas Unified Outdoor AP |
R7T12A | HPE Aruba Networking AP-587 (IL) Dual Radio 4×4:4 802.11ax Internal Directional Antennas Unified Outdoor AP |
R7T13A | HPE Aruba Networking AP-587 (JP) Dual Radio 4×4:4 802.11ax Internal Directional Antennas Unified Outdoor AP |
R7T14A | HPE Aruba Networking AP-584 (US) TAA Dual Radio 4×4:4 802.11ax External Antennas Unified Outdoor AP |
R7T15A | HPE Aruba Networking AP-584 (RW) TAA Dual Radio 4×4:4 802.11ax External Antennas Unified Outdoor AP |
R7T16A | HPE Aruba Networking AP-584 (EG) TAA Dual Radio 4×4:4 802.11ax External Antennas Unified Outdoor AP |
R7T17A | HPE Aruba Networking AP-584 (IL) TAA Dual Radio 4×4:4 802.11ax External Antennas Unified Outdoor AP |
R7T18A | HPE Aruba Networking AP-584 (JP) TAA Dual Radio 4×4:4 802.11ax External Antennas Unified Outdoor AP |
R7T19A | HPE Aruba Networking AP-585 (US) TAA Dual Radio 4×4:4 802.11ax Internal Omni Antennas Unified Outdoor AP |
R7T20A | HPE Aruba Networking AP-585 (RW) TAA Dual Radio 4×4:4 802.11ax Internal Omni Antennas Unified Outdoor AP |
R7T21A | HPE Aruba Networking AP-585 (EG) TAA Dual Radio 4×4:4 802.11ax Internal Omni Antennas Unified Outdoor AP |
R7T22A | HPE Aruba Networking AP-585 (IL) TAA Dual Radio 4×4:4 802.11ax Internal Omni Antennas Unified Outdoor AP |
R7T23A | HPE Aruba Networking AP-585 (JP) TAA Dual Radio 4×4:4 802.11ax Internal Omni Antennas Unified Outdoor AP |
R7T24A | HPE Aruba Networking AP-587 (US) TAA Dual Radio 4×4:4 802.11ax Internal Directional Antennas Unified Outdoor AP |
R7T25A | HPE Aruba Networking AP-587 (RW) TAA Dual Radio 4×4:4 802.11ax Internal Directional Antennas Unified Outdoor AP |
R7T26A | HPE Aruba Networking AP-587 (EG) TAA Dual Radio 4×4:4 802.11ax Internal Directional Antennas Unified Outdoor AP |
R7T27A | HPE Aruba Networking AP-587 (IL) TAA Dual Radio 4×4:4 802.11ax Internal Directional Antennas Unified Outdoor AP |
R7T28A | HPE Aruba Networking AP-587 (JP) TAA Dual Radio 4×4:4 802.11ax Internal Directional Antennas Unified Outdoor AP |
