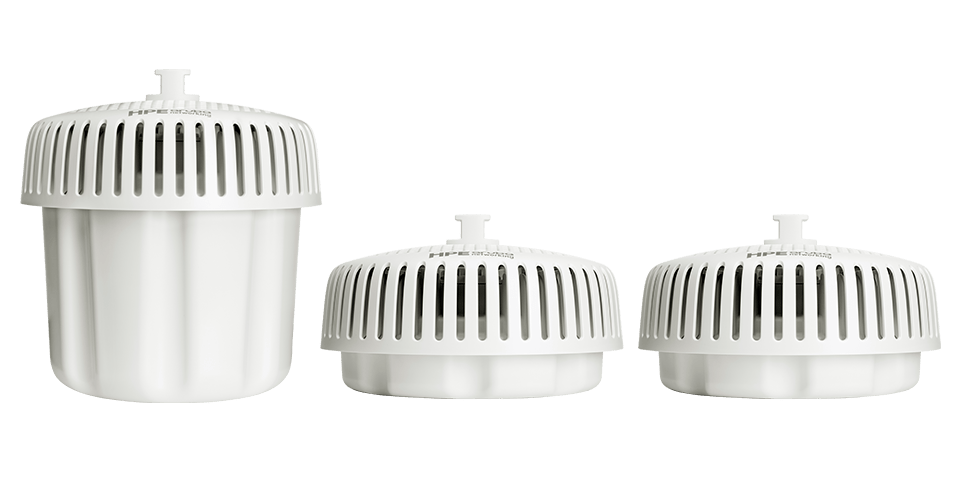

Product Overview
HPE Aruba Networking 670 Series Outdoor Access Points are high-performance Wi-Fi 6E APs ideal for outdoor and environmentally challenging locations. Provide secure and reliable connectivity in large outdoor open areas, such as stadiums and public venues with weatherproof high-performance Wi-Fi 6E APs.
Wi-Fi 6E performance
Improve Wi-Fi performance using the 6 GHz band for faster speeds and wider channels. Tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz delivers 3.9 Gbps maximum aggregate data rate supports high-bandwidth, low-latency applications such as high-definition video.
Ruggedized for outdoors
Withstand extreme high and low temperatures, persistent moisture, and precipitation. Fully sealed to keep out airborne contaminants and electrical interfaces including industrial-strength surge protection. Available with choice of internal antenna (omni, directional, or point-to-point) to optimize wireless coverage.
IoT ready
Deploy and manage enterprise and industrial IoT, including asset tracking services, security solutions, and sensors, with integrated high-power Bluetooth and 802.15.4 radios for Zigbee support. Advanced IoT Coexistence (AIC) helps Wi-Fi, Bluetooth and Zigbee radios operate at maximum capacity without interference.
Location aware
Protect incumbent outdoor services via self-locating embedded GPS receivers that operate as Standard Power (SP) devices, requiring an Automated Frequency Coordination service (AFC).
Efficient and secure
Extend the 802.11ax standard to the 6GHz band, including efficiency and security enhancements such as orthogonal frequency-division multiple access (OFDMA), multi-user MIMO, enhanced open, and WPA3 with Wi-Fi 6E. The 670 Series APs also offers client optimization, automated radio frequency management, and intelligent power monitoring.
Features
Wi-Fi 6E for the extreme outdoors, High-performance Wi-Fi 6E for reliable and secure connectivity across the most demanding outdoor environments, including public venues.
6 GHz support
Tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver 3.9 Gbps maximum combined peak data rate.
Standard power (SP) device operations
Self-locating with embedded GPS receivers that can operate as a standard power (SP) device pending per country certification and approval.
IP66/67 rated for challenging conditions
Purpose built to survive in the harshest outdoor environments and extreme temperatures (-40 to +70˚C).
Multi-gigabit ethernet speeds
Flexible and fast wired connectivity with 2.5GbE port and 1GbE SFP port.
High-power Bluetooth and Zigbee radios
Simplified deployment and management of IoT devices for industrial IoT and manufacturing environments.
Built-in security
Includes Wi-Fi 6E standards such as WPA3, enhanced open, and WPA2-MPSK for stronger encryption and authentication.
Hardware variants
Wi-Fi radio specifications
AP type: Outdoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2×2 MIMO
2.4 GHz radio: Two spatial stream single user (SU) MIMO for up to 574 Mbps wireless data rate with 2SS HE40 802.11ax client devices
5 GHz radio: Two spatial stream single user (SU) MIMO for up to 1.2 Gbps wireless data rate with 2SS HE80 802.11ax client devices
6 GHz radio: Two spatial stream single user (SU) MIMO for up to 2.4 Gbps wireless data rate with 2SS HE160 802.11ax client devices
Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 8 for the 6GHz radio)
Supported frequency bands (country-specific restrictions apply):
400 to 2.4835 GHz ISM
150 to 5.250 GHz U-NII-1
250 to 5.350 GHz U-NII-2
470 to 5.725 GHz U-NII-2E
725 to 5.850 GHz U-NII-3/ISM
850 to 5.895 GHz U-NII-4
925 to 6.425 GHz U-NII-5
425 to 6.525 GHz U-NII-6
525 to 6.875 GHz U-NII-7
875 to 7.125 GHz U-NII-8
Available bands and channels: Dependent on configured regulatory domain (country)
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5 GHz band
Supported radio technologies:
11b: Direct-sequence spread-spectrum (DSSS)
11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units (37 for the 6GHz radio)
Supported Modulation Types
11b: BPSK, QPSK, CCK
11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256-QAM (proprietary extension)
11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension)
11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM
802.11n high-throughput (HT) support: HT20/40
802.11ac very high throughput (VHT) support: VHT20/40/80
802.11ax high efficiency (HE) support: HE20/40/80/160
Supported data rates (Mbps):
11b: 1, 2, 5.5, 11
11a/g: 6, 9, 12, 18, 24, 36, 48, 54
11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM (proprietary extension)
11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024-QAM (MCS10 and MCS11, proprietary extension)
11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
11ax (6GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)
802.11n/ac packet aggregation: A-MPDU, A-MSDU
Transmit power: Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements)
Per radio/band (2.4 GHz/5 GHz/6 GHz): +25 dBm (18 dBm per chain)
Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
Advanced cellular coexistence (ACC) minimizes the impact of interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high- efficiency error correction and increased throughput
Transmit beamforming (TxBF) for increased signal reliability and range
802.11ax Target Wait Time (TWT) to support low-power client devices
802.11mc Fine Timing Measurement (FTM) for precision distance ranging
Table 1. HPE Aruba 670 Series Outdoor Access Points
Part number | Description |
S0P50A | HPE Aruba Networking AP-675 (US) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional Outdoor AP |
S0P51A | HPE Aruba Networking AP-675 (RW) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional Outdoor AP |
S0P52A | HPE Aruba Networking AP-675 (JP) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional Outdoor AP |
S0P53A | HPE Aruba Networking AP-675 (IL) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional Outdoor AP |
S0P54A | HPE Aruba Networking AP-675 (EG) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional Outdoor AP |
S0P55A | HPE Aruba Networking AP-677 (US) Tri Radio 2×2 Wi-Fi 6E Internal Directional Outdoor AP |
S0P56A | HPE Aruba Networking AP-677 (RW) Tri Radio 2×2 Wi-Fi 6E Internal Directional Outdoor AP |
S0P57A | HPE Aruba Networking AP-677 (JP) Tri Radio 2×2 Wi-Fi 6E Internal Directional Outdoor AP |
S0P58A | HPE Aruba Networking AP-677 (IL) Tri Radio 2×2 Wi-Fi 6E Internal Directional Outdoor AP |
S0P59A | HPE Aruba Networking AP-677 (EG) Tri Radio 2×2 Wi-Fi 6E Internal Directional Outdoor AP |
S0P60A | HPE Aruba Networking AP-679 (US) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional Outdoor AP |
S0P61A | HPE Aruba Networking AP-679 (RW) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional Outdoor AP |
S0P62A | HPE Aruba Networking AP-679 (JP) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional Outdoor AP |
S0P63A | HPE Aruba Networking AP-679 (IL) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional Outdoor AP |
S0P64A | HPE Aruba Networking AP-679 (EG) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional Outdoor AP |
Table 2. HPE Aruba 670 Series Outdoor Access Points – TAA compliant
Part number | Description |
S0Q35A | HPE Aruba Networking AP-675 (USF1) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional TAA Outdoor AP |
S0Q36A | HPE Aruba Networking AP-675 (ILF1) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional TAA Outdoor AP |
S0Q37A | HPE Aruba Networking AP-675 (JPF1) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional TAA Outdoor AP |
S0Q38A | HPE Aruba Networking AP-675 (RWF1) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional TAA Outdoor AP |
S0Q39A | HPE Aruba Networking AP-675 (EGF1) Tri Radio 2×2 Wi-Fi 6E Internal Omni-Directional TAA Outdoor AP |
S0Q40A | HPE Aruba Networking AP-677 (EGF1) Tri Radio 2×2 Wi-Fi 6E Internal Directional TAA Outdoor AP |
S0Q41A | HPE Aruba Networking AP-677 (ILF1) Tri Radio 2×2 Wi-Fi 6E Internal Directional TAA Outdoor AP |
S0Q42A | HPE Aruba Networking AP-677 (JPF1) Tri Radio 2×2 Wi-Fi 6E Internal Directional TAA Outdoor AP |
S0Q43A | HPE Aruba Networking AP-677 (RWF1) Tri Radio 2×2 Wi-Fi 6E Internal Directional TAA Outdoor AP |
S0Q44A | HPE Aruba Networking AP-677 (USF1) Tri Radio 2×2 Wi-Fi 6E Internal Directional TAA Outdoor AP |
S0Q45A | HPE Aruba Networking AP-679 (EGF1) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional TAA Outdoor AP |
S0Q46A | HPE Aruba Networking AP-679 (ILF1) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional TAA Outdoor AP |
S0Q47A | HPE Aruba Networking AP-679 (JPF1) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional TAA Outdoor AP |
S0Q48A | HPE Aruba Networking AP-679 (RWF1) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional TAA Outdoor AP |
S0Q49A | HPE Aruba Networking AP-679 (USF1) Tri Radio 2×2 Wi-Fi 6E Internal Dyn Directional TAA Outdoor AP |
