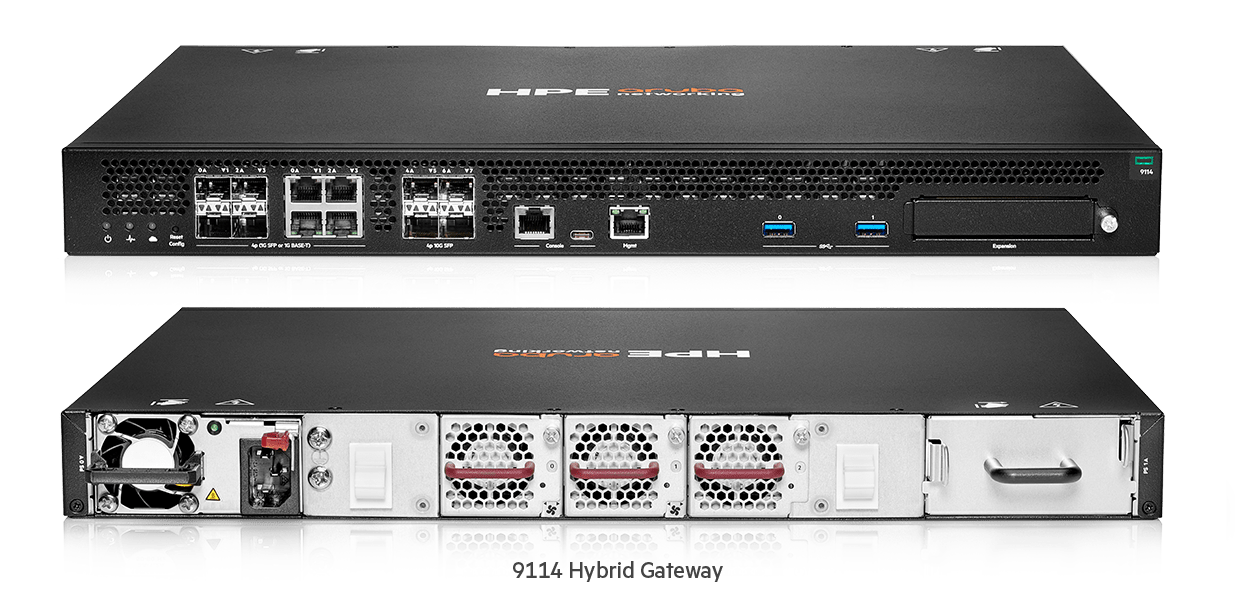

Aruba 9114 Gateway

Overview
Specifications
Datasheet
Ordering Information

Product Overview

HPE Aruba Networking 9100 Series Hybrid Gateways, Securely and seamlessly deliver enterprise services to the edge with the cloud-optimized 9100 Series Hybrid Gateway. Ideal for campus and remote branch networks, the 9100 Series Hybrid Gateway delivers scalable, high-performance Wi-Fi with enhanced security.

Boost performance and scalability

The 9100 Series Hybrid Gateways are modern edge appliances that support up to 4K APs and 10K clients. With compact 1U form factor and high-speed 10 GbE connectivity, this modern AOS-10 gateway brings fast, resilient Wi-Fi connectivity supporting live upgrades, clustering, and redundancy so users and IoT devices have 24×7 access to enterprise services.

Increase edge security

Deliver consistent policy enforcement via Dynamic Segmentation. Granular rules can be defined for any user, application, or device—including IoT—across wired and wireless networks. The Layer 4-7 Policy Enforcement Firewall (PEF) provides identity-based controls to enforce application-layer security and prioritization.

Eliminate branch complexity

Simplify management and enhance security with HPE Aruba Networking EdgeConnect SD-Branch that combines best-in-class wireless, wired, and WAN infrastructure with unified management capabilities to maximize performance and minimize operational costs. Quickly define, tune, and optimize connectivity across a hybrid WAN of Internet, MPLS, and cellular.

Streamline operations

With AI-powered insights, workflow automation, and robust security, cloud-native HPE Aruba Networking Central simplifies the management and orchestration of campus, branch, remote, and data center networks. Zero Touch Provisioning simplifies deployment at branch sites.

Features

Modern gateways for a scalable and secure edge, Purpose-built high-performance edge appliance extends enterprise services to large branch and small campus networks.

Versatile scalability

Supports up to 4K APs and 10K clients and can be deployed as an SD-Branch gateway, as a powerful cloud-based wireless gateway, or as a VPN Concentrator (VPNC).

Quality of service

Consistently optimizes performance and usage policies for 3,800+ applications using deep packet inspection.

Seamless L2/L3 roaming

Supports tunneling so two disparate networks can connect directly to one another for seamless L2/L3 roaming in multi-VLAN environments.

High-speed interfaces

High-speed wired connectivity with up to four 10GbE fiber ports and up to four 1GbE combo ports for up to 20Gbps throughput.

High availability

Always-on high availability with live upgrades, clustering, and N+1 or NxN redundancy.

Table 1. Aruba 9100 Series Hybrid Gateways Performance and capacity

FEATURES	9106	9114
Firewall throughput (Gbps)	10	20
Encrypted throughput GRE (Gbps)	10	20
Encrypted throughput AES-CBC-128 (Gbps)	10	20
Encrypted throughput AES-CBC-256 (Gbps)	10	20
Encrypted throughput AES-GCM-128 (Gbps)	10	20
Encrypted throughput AES-GCM-256 (Gbps)	10	20
Cluster size	6	6
Maximum clients (User MAC)	8K	10K
Maximum clients per cluster	32K	40K
Max devices (APs)	2K	4K
Max devices (APs) per cluster	4K	8K
Maximum Datapath / Firewall sessions	2M	2M
Concurrent IPSec Tunnels	16K	32K
Total Tunnels	20K	40K
ARP	16K	20K
Max DHCP Clients	16K	32K
Maximum Bridge Table	256K	512K
Max IPv4 Static Routes	2K	2K
IPV6 Neighbors	32K	40K
Maximum routes	32K	12K
Access Control Lists	2678	2678
Configurable Bandwidth Contracts	1K	1K

Table 2. Aruba 9100 Series Hybrid Gateways Interfaces and indicators

FEATURES	9106	9114
Form Factor	Desktop	1 RU
Interface	2x SFP+
2x Combo (SFP/1G Copper)
2x 1GbE	4x SFP+
4x Combo (SFP/1GbE Copper)
PoE Budget	60W	–
Out of Band Management Port	1x RJ45	1x RJ45
Console port	USB-C, RJ45	USB-C, RJ45
USB 3.0 Type-A	1	2
LCD Display	–	1
Power LED	Yes	Yes
Status LED	Yes	Yes
Gateway LED	Yes	TBD
Peered LED (reserved for future use)	TBD	TBD
Expansion slot (reserved for future use)	–	1
Power supply slots	–	1 + redundant
Fan trays	–	3
