Product Overview

The Cisco 25GBASE SFP28 (Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 25 Gigabit Ethernet connectivity options for data center and high-performance computing networks applications. The 25G Modules are based on SFP28 form factor.

Features and benefits of Cisco 25G Modules

  • Interoperable with other IEEE-compliant 25G interfaces where applicable.
  • Certified and tested on Cisco SFP28 ports for superior performance, quality, and reliability.
  • High-speed connectivity compliant to IEEE 802.3by and IEEE 802.3cc.

Cisco SFP-25G copper cables

  • Cisco SFP28 to SFP28 copper direct-attach 25GBASE-CR1 cables are suitable for very short links and offer a highly cost-effective way to establish a 25-Gigabit link between SFP28 ports of Cisco switches within racks and across adjacent racks. Cisco offers passive copper cables in lengths of x= 1, 1.5, 2, 2.5, 3, 4 and 5 meters.
  • 1m, 1.5m, and 2m cables do not require FEC on the host ports; 2.5m and 3m cables require BASE-R FEC (also known as FC-FEC) on the host ports; 4m and 5m cables require RS-FEC on the host ports.

Cisco SFP-25G active optical cables

Cisco SFP28 to SFP28 Active Optical Cables are direct-attach fiber assemblies with SFP connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. Cisco offers Active Optical Cables in lengths of 1, 2, 3, 4, 5, 7, and 10 meters.

AOC cable require BASE-R FEC, or RS-FEC on the host ports.

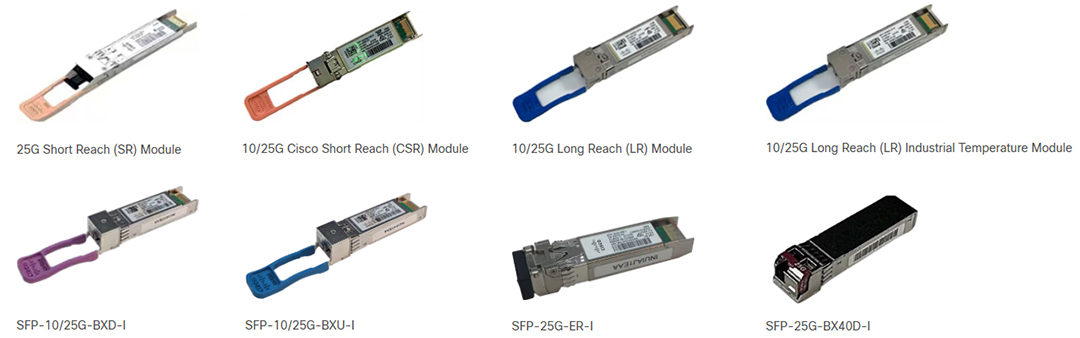

Cisco SFP-25G-SR-S

  • The Cisco 25GBASE-SR Module supports a link length of 70/100m on OM3/4 MMF.
  • This module requires RS-FEC on the host ports.

Cisco SFP-25G-SL

  • The Cisco 25GBASE-SL Module supports a link length of 20/30m on OM3/4 MMF.
  • The Cisco SFP-25G-SL (Short Link) module requires RS-FEC on the host ports

Cisco SFP-10/25G-CSR-S

  • The Cisco 10/25GBASE-CSR Module supports a link length of up to 300/400m over OM3/4 at 10G, and up to 300/400m over OM3/4 at 25G. It also supports link lengths of 82m over OM2 at 10G, and up to 70m over OM2 at 25G.
  • This module requires RS-FEC on the host port for full reach operation at 25G. Using BASE-R FEC the module can support 70/100m over OM3/4 and with-out FEC it can support 30/50m over OM3/4 at 25G*. For 10G operation FEC is not required.

Cisco SFP-10/25G-LR-S

  • The Cisco 10/25GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G.
  • This module requires RS-FEC on the host ports for operation at 25G.

Cisco SFP-10/25G-LR-I

  • The Cisco 10/25GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G. The module requires RS-FEC on the host ports for full reach operation at 25G. This module has an industrial temperature range. This module also supports CPRI datarates options 7, 8, 9 and 10.
  • In some applications using BASE-R FEC the module can support 3.5km and without FEC it can support 1.5km, depending on fiber quality.

Cisco SFP-10/25G-BXD-I and SFP-10/25G-BXU-I (single-fiber bidirectional applications)

  • The Cisco 10GBASE-LR/10GBASE-BR/25GBASE-BR Module supports a link length of 10 kilometers on a single strand of standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G. A SFP-10/25G-BXD-I device is always connected to a SFP-10/25G-BXU-I device with a single strand of standard SMF. The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. SFP-10/25G-BXD-I transmits at 1330nm channel and receives at 1270nm signal. The SFP-10/25G-BXU-I transmits at a 1270nm wavelength and receives a 1330nm signal.
  • The module requires RS-FEC on the host ports for full reach operation at 25G. This module has an industrial temperature range. This module also supports CPRI datarates options 7, 8, 9 and 10.
  • In some applications using BASE-R FEC the module can support 3.5km and without FEC it can support 1.5km, depending on fiber quality.

Cisco SFP-25G-ER-I

  • The Cisco 25GBASE-ER Module supports a link length of 40 kilometers on standard Single-Mode Fiber (SMF) G.652 at 25G.
  • The module requires RS-FEC on the host ports for full reach operation at 25G. This module has an industrial temperature range.

Cisco SFP-25G-BX40D-I and SFP-25G-BX40U-I (single-fiber bidirectional applications)

  • The Cisco 25GBASE-BR40 Modules support link lengths of 40km over a single strand of standard Single-Mode Fiber (SMF) G.652 at 25G. An SFP-25G-BX40D-I device is always connected to an SFP-25G-BX40U-I device with a single strand of standard SMF. The communication over a single strand is achieved by separating the transmission wavelength of the two devices. SFP-25G-BX40D-I transmits at 1314nm wavelength and receives at 1289nm wavelength. The SFP-25G-BX40U-I transmits at 1289nm and receives at 1314nm wavelengths.
  • These modules require RS-FEC on the host ports for full reach operation at 25G. These modules have an industrial temperature range.


Table 1.   SFP28 port cabling specifications

SFP-25G

Wavelength (nm)

Cable Type

Core Size (Microns)

Modal Bandwidth

Cable Distance

SFP-25G-SR-S

850

MMF

50.0

2000 (OM3)

70m

4700 (OM4)

100m

4700 (OM5)

100m

SFP-25G-SL

850

MMF

50.0

2000 (OM3)

20m

4700 (OM4)

30m

4700 (OM5)

30m

SFP-10/25G-CSR-S

850

MMF

50.0

500 (OM2)

70m (25G)

82m (10G)

2000 (OM3)

300m*

4700 (OM4)

400m*

4700 (OM5)

400m

SFP-10/25G-LR-S

1310

SMF

G.652

–

10km

SFP-10/25G-LR-I

1310

SMF

G.652

–

10km**

SFP-10/25G-BXD-I

1330

SMF

G.652

–

10km***

SFP-10/25G-BXU-I

1270

SMF

G.652

–

10km***

SFP-25G-ER-I

1310

SMF

G.652

–

40km****

SFP-25G-BX40D-I

1314

SMF

G.652

–

40km****

SFP-25G-BX40U-I

1289

SMF

G.652

–

40km****

**Links up to 15km reach are supported as engineered links as long as channel insertion loss is <9.3dB and RS-FEC is required.

***Links up to 15km reach are supported as engineered links as long as channel insertion loss is <8dB and RS-FEC is required.

****Links greater than 30km reach are considered engineered links.


SFP-25G-ER-I

Table 1.   Cisco 25G cables and transceivers

Part ID

Product description

SFP-H25G-CU1M

25GBASE-CR1 SFP28 Passive Copper Cable, 1-meter

SFP-H25G-CU1.5M

25GBASE-CR1 SFP28 Passive Copper Cable 1.5-meter

SFP-H25G-CU2M

25GBASE-CR1 SFP28 Passive Copper Cable, 2-meter

SFP-H25G-CU2.5M

25GBASE-CR1 SFP28 Passive Copper Cable 2.5-meter

SFP-H25G-CU3M

25GBASE-CR1 SFP28 Passive Copper Cable, 3-meter

SFP-H25G-CU4M

25GBASE-CR1 SFP28 Passive Copper Cable 4-meter

SFP-H25G-CU5M

25GBASE-CR1 SFP28 Passive Copper Cable, 5-meter

SFP-25G-AOC1M

25GBASE-AOC SFP28 Active Optical Cable, 1-meter

SFP-25G-AOC2M

25GBASE-AOC SFP28 Active Optical Cable, 2-meter

SFP-25G-AOC3M

25GBASE-AOC SFP28 Active Optical Cable, 3-meter

SFP-25G-AOC4M

25GBASE-AOC SFP28 Active Optical Cable 4-meter

SFP-25G-AOC5M

25GBASE-AOC SFP28 Active Optical Cable, 5-meter

SFP-25G-AOC7M

25GBASE-AOC SFP28 Active Optical Cable, 7-meter

SFP-25G-AOC10M

25GBASE-AOC SFP28 Active Optical Cable, 10-meter

SFP-25G-SR-S

25GBASE-SR SFP28 Module for MMF

SFP-25G-SL

25GBASE-SL SFP28 Module for MMF

SFP-10/25G-CSR-S

10/25GBASE-CSR SFP28 Module for MMF

SFP-10/25G-LR-S

10/25GBASE-LR SFP28 Module for SMF

SFP-10/25G-LR-I

10/25GBASE-LR SFP28 Module for SMF, Industrial Temp

SFP-10/25G-BXD-I

10/25GBASE-BR SFP28 Bidi module for SMF, Industrial Temp, Downstream

SFP-10/25G-BXU-I

10/25GBASE-BR SFP28 Bidi module for SMF, Industrial Temp, Upstream

SFP-25G-ER-I

25GBASE-ER SFP28 Module for SMF, Industrial Temp

SFP-25G-BX40D-I

25GBASE-BR40 SFP28 Bidi module for SMF, Industrial Temp, Downstream

SFP-25G-BX40U-I

25GBASE-BR40 SFP28 Bidi module for SMF, Industrial Temp, Upstream
