The VIPRION 4400 Series system provides you with the flexibility and feature-rich capabilities of F5 products on a powerful and highly-extensible hardware platform. With this platform, you install and configure multiple F5 products using hot-swappable blades. This provides you with the ability to add, remove, or change the platform’s configuration to best fit your network. Many components are available for you to add, remove, or change including the blades, power supplies, fan tray, LCD panel, and more. This configuration allows for an extremely robust and flexible system that can manage large amounts of application traffic, and remain operational even if one of its components goes offline.

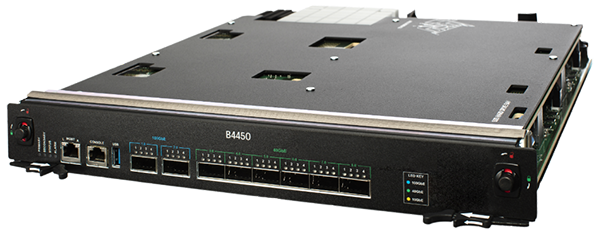

The purpose-built, NEBS-compliant VIPRION 4450 blade delivers two 100GbE ports and six 40GbE ports, vastly increasing efficiency, throughput, and performance. It’s the first ADC to provide 100GbE ports in the QSFP28 form factor, delivering the smallest footprint and lowest power consumption of any 100GbE form factor. A VIPRION 4800 chassis fully loaded with VIPRION 4450 blades supports more than 1 Billion concurrent connections and over 1Tbps of DDoS protection. In the VIPRION 4480 or 4800 chassis, the 4450 delivers significant improvements for SSL and elliptical curve cryptography (ECC) performance, enhancing perfect forward secrecy (PFS). Advanced FPGAs, memory, and hardware search on the VIPRION 4450 handles and efficiently addresses software-defined networking (SDN) needs, delivering CPU offloading, optimization, and adaptability.

Two 100 GbE ports and six 40 GbE ports, which vastly increase efficiency, throughput, and performance.
The first ADC with 100 GbE ports in the QSFP28 form factor, delivering a smaller footprint and lower power consumption.
Significant performance improvements for 2K keys with SSL.
Support for over a billion concurrent connections, ensuring network, data, and subscriber security.
Manage security and connectivity with fewer devices.
Scale dynamically to meet user growth.
Reduce total cost of ownership (TCO) and speed return on investment (ROI).
Remove complexity while increasing efficiency

F5 VIPRION Chassis and Blades Catalog

The F5 VIPRION platform empowers you to dynamically scale and adapt. Add blades without disrupting your apps or users, extending superior performance without adding devices to meet your requirements.

VIPRION 4480 Chassis	VIPRION 4800 Chassis	VIPRION 4450 Blade
● Up to four B4450 blades ● Up to 48 vCMP instances (12 per blade) ● 7U industry standard rack-mount chassis ● 4 power supplies, 1 fan tray, 3 blanks	● Up to eight B4450 blades ● Up to 96 vCMP instances (12 per blade) ● 16U industry standard rack-mount chassis ● 2 power supplies, 2 fan trays, 8 blanks ● 80+ Gold Efficiency power supplies	● Two Intel 12-core processors ● 256GB RAM ● 1.2 TB solid state drive ● Two 100 Gbps ports and Six 40 Gbps ports ● 180M max L4 concurrent connections ● 140 Gbps/140 Gbps L4/L7 throughput
VIPRION 2200 Chassis	VIPRION 2400 Chassis	VIPRION 2250 Blade
● Up to two B2250 blades ● 2U industry standard rack-mount chassis ● 2 power supplies, 1 fan tray, 1 blank	● Up to four B2250 blades ● 4U industry standard rack-mount chassis ● 2 power supplies, 1 fan tray, 3 blanks ● 80+ Gold Efficiency power supplies	● Single Intel 10-core Xeon processor ● 64GB RAM ● 800GB solid state drive ● Four 40GbE ports ● 48M max L4 concurrent connections ● 80 Gbps/80 Gbps L4/L7 throughput

Table 1. F5 VIPRION 4450 Blade Specifications

Platform	VIPRION 4450 blade
Intelligent Traffic Processing	5M L7 requests per second 2.9M L4 connections per second 180M max L4 concurrent connections 140 Gbps L4/L7 4.8 Gbps included compression 80 Gbps max hardware compression Included RSA SSL TPS: 24,000 (2K keys) Max RSA SSL TPS: 160,000 (2K keys) Included ECDSA P-256 TPS: 24,000 Max ECDSA P-256 TPS: 80,000 Bulk crypto (RSA): 80 Gbps Note: Compression and SSL resources are allocated evenly across the number of vCMP guests set up.
Hardware DDoS Protection	Support for over 100 different vectors Hardware SYN cookies: 115M SYN cookies per second
Software Architecture	64-bit TMOS
Virtualization (Max Number of vCMP Guests)	48 in a 4480 chassis, 96 in a 4800 chassis (12 per blade)*
Processors	2 Intel 12-core processors (48 hyperthreaded logical processor cores total)
Memory	256 GB
Hard Drive Capacity	1.2 TB SSD
Network Interfaces	One 10/100/1,000 Mbps Ethernet management port Six 40 Gbps QSFP+ ports Optional 40 Gbps QSFP+ SR4 (up to 100m) transceivers Optional 40 Gbps QSFP+ LR4 (up to 10km) transceivers Each QSFP+ port can convert to four 10 Gbps with QSFP+ breakout or AOC cables Two 100 Gbps QSFP28 ports Optional 100 Gbps QSFP28 SR4 (up to 70m) transceiver Optional 100 Gbps QSFP28 LR4 (up to 10km) transceiver
Power Consumption and Heat Output	Please refer to Platform Guide: VIPRION 4800 or VIPRION 4400 for the latest specific power ratings
Weight	19.2 lbs. (8.71 kg)
