VIPRION 4800 Chassis

Overview
Specifications
Datasheet
Ordering Information

The VIPRION 4800 Series system provides you with the flexibility and feature-rich capabilities of F5 products on a powerful and highly-extensible hardware platform. With this platform, you install and configure multiple F5 products using hot-swappable blades. This provides you with the ability to add, remove, or change the platform’s configuration to best fit your network. Many components are available for you to add, remove, or change including the blades, power supplies, fan tray, LCD panel, and more. This configuration allows for an extremely robust and flexible system that can manage large amounts of application traffic, and remain operational even if one of its components goes offline.

VIPRION platforms include two types of components: blades, which provide the hardware and software needed to manage network traffic, and a chassis, which houses the blades.The chassis and blades are shipped in separate boxes.Although the VIPRION 4800 Series platform is highly extensible and designed to be easy to implement, familiarity with the platform components can help ensure that you install and integrate the platform successfully and effectively.

F5 VIPRION Chassis and Blades Catalog

The F5 VIPRION platform empowers you to dynamically scale and adapt. Add blades without disrupting your apps or users, extending superior performance without adding devices to meet your requirements.

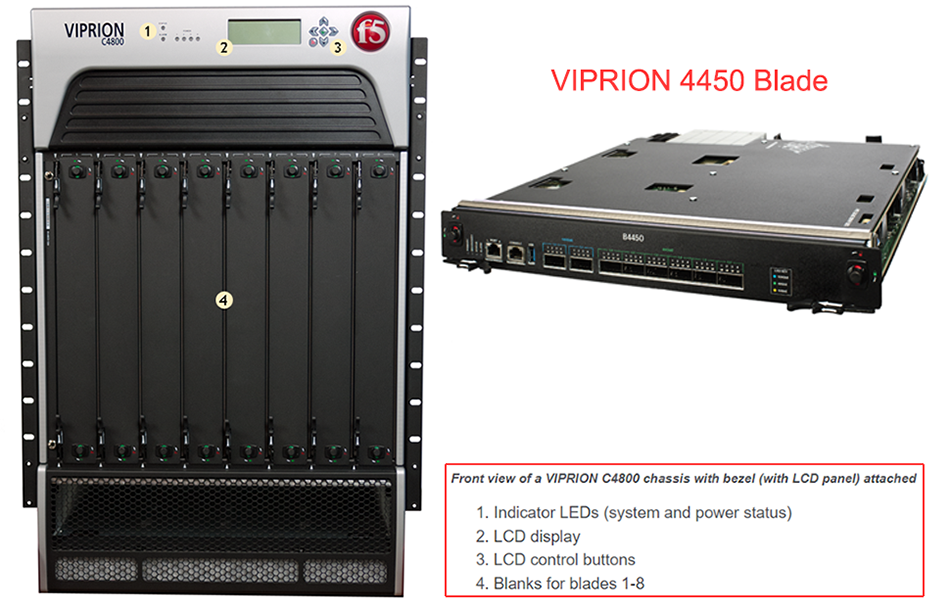

VIPRION 4480 Chassis	VIPRION 4800 Chassis	VIPRION 4450 Blade
● Up to four B4450 blades ● Up to 48 vCMP instances (12 per blade) ● 7U industry standard rack-mount chassis ● 4 power supplies, 1 fan tray, 3 blanks	● Up to eight B4450 blades ● Up to 96 vCMP instances (12 per blade) ● 16U industry standard rack-mount chassis ● 2 power supplies, 2 fan trays, 8 blanks ● 80+ Gold Efficiency power supplies	● Two Intel 12-core processors ● 256GB RAM ● 1.2 TB solid state drive ● Two 100 Gbps ports and Six 40 Gbps ports ● 180M max L4 concurrent connections ● 140 Gbps/140 Gbps L4/L7 throughput
VIPRION 2200 Chassis	VIPRION 2400 Chassis	VIPRION 2250 Blade
● Up to two B2250 blades ● 2U industry standard rack-mount chassis ● 2 power supplies, 1 fan tray, 1 blank	● Up to four B2250 blades ● 4U industry standard rack-mount chassis ● 2 power supplies, 1 fan tray, 3 blanks ● 80+ Gold Efficiency power supplies	● Single Intel 10-core Xeon processor ● 64GB RAM ● 800GB solid state drive ● Four 40GbE ports ● 48M max L4 concurrent connections ● 80 Gbps/80 Gbps L4/L7 throughput

Table 1. F5 VIPRION 4480, 4800 Chassis Specifications

Platform	VIPRION 4480 Chassis	VIPRION 4800 Chassis
Dimensions	12.2” (30.9 cm) H x 17.4” (44.2 cm) W x 21” (53.3 cm) D 7U industry standard rack-mount chassis	27.8” (70.6 cm) H x 17.4” (44.2 cm) W x 21.25” (54.0 cm) D 16U industry standard rack-mount chassis
Weight	87 lbs. (39.5 kg) (4 power supplies, 1 fan tray, 3 blanks)	126 lbs. (57.2 kg) (2 power supplies, 2 fan trays, 8 blanks)
Power Supply	One to four 90 VAC (1200W) to 240 VAC (2000W) auto ranging 20A per input (max) DC power (option) One to four 1200W -36 to -72 VDC 10 to 40A maximum per supply	One to four 200 VAC to 240 VAC (2600W) auto ranging 80+ Gold Efficiency 2 power supplies included 18A per input (max) DC power (option) One to four 2600W -44 to -72 VDC 80A per input maximum per supply
Operating Temperature	32° to 104° F (0° to 40° C)	32° to 104° F (0° to 40° C)
Relative Humidity	5 to 85% at 104° F (40° C)	5 to 85% at 104° F (40° C)
Safety Agency Approval	UL 60950 (UL1950-3) CSA-C22.2 No. 60950-00 (bi-national standard with UL 60950) CB test certification to IEC 950 EN 60950	UL 60950 (UL1950-3) CSA-C22.2 No. 60950-00 (bi-national standard with UL 60950) CB test certification to IEC 950 EN 60950
Certifications/ Susceptibility Standards	EN55022 1998 Class A EN55024 1998 Class A FCC Part 15B Class A VCCI Class A NEBS Certified	EN55022 1998 Class A EN55024 1998 Class A FCC Part 15B Class A VCCI Class A
