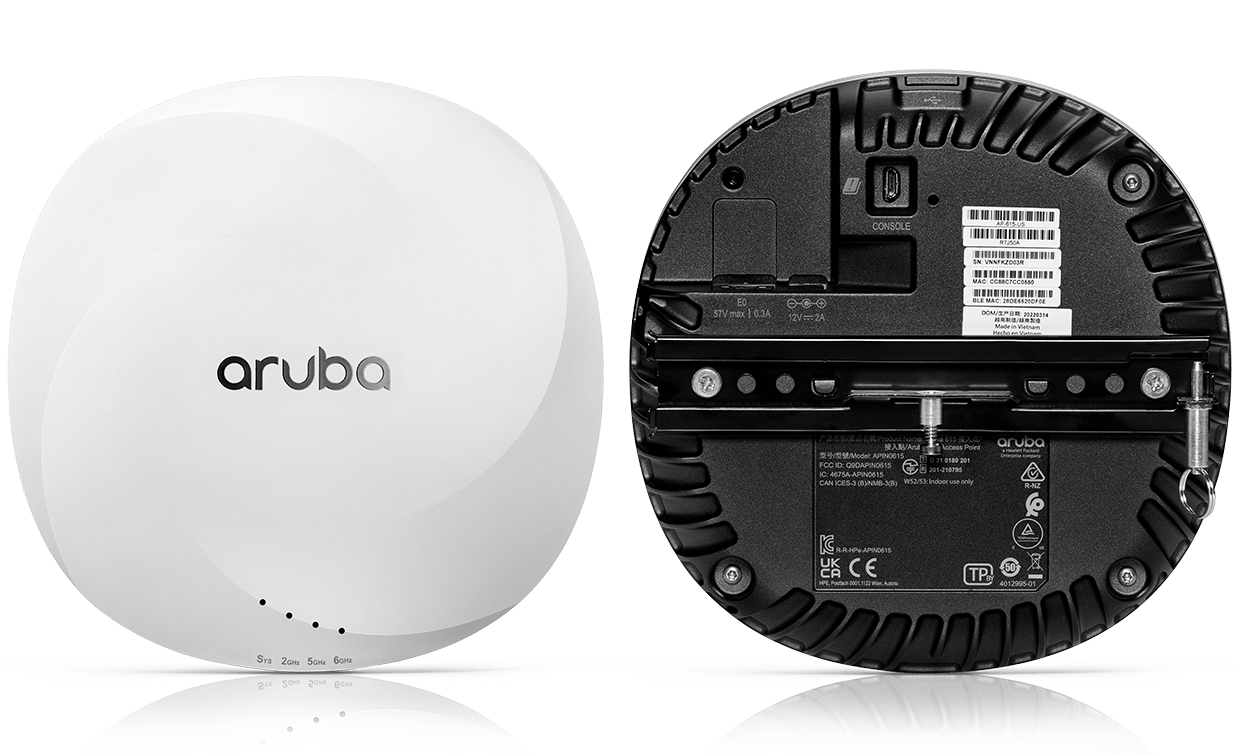

AP-615

Compact, affordable Wi-Fi 6E access point Dual radio, tri-band architecture Up to 3.6 Gbps combined peak datarate (when operating in 5 GHz and 6 GHz)
  • Overview
  • Specifications
  • Datasheet
  • Ordering Information

Product Overview

The HPE Aruba Networking 610 Series extends all the benefits of Wi-Fi 6 to the 6 GHz band: speed, more 80/160 MHz channels, and less interference to support high-definition video and more clients.

Cost-effective and compact

For enterprises who needed more wireless capacity and/or wider channels, the HPE Aruba Networking 610 Series features two radios that can be tuned to any two of the three available spectrum bands for cost-effective connectivity in a compact form factor. The 610 Series provides tri-band coverage when deployed in a multi-AP environment.

Highly efficient and secure

Wi-Fi 6E extends support to the 6 GHz band based on the 802.11ax standard. 802.11ax provides greater efficiency and higher levels of guest and password security with orthogonal frequency-division multiple access (OFDMA), Enhanced Open, and WPA3. The 610 Series APs also offer client optimization, automated radio frequency management, and intelligent power monitoring.

Greater IoT support

HPE Aruba Networking 610 Series APs act as an IoT transport platform without the need to deploy or manage overlay gateways. The APs include integrated Bluetooth Low Energy 5 (BLE) and 802.15.4/Zigbee radios plus dynamic segmentation for added security making it easier to deploy and manage.

Features

Ideal for branch and small campus environments, HPE Aruba Networking 610 Series Wi-Fi 6E APs offer fast, secure connectivity.

6 GHz support

Maximum combined 3.6 Gbps data rate for higher throughput and faster speeds indoors (when using 5 GHz and 6 GHz bands).

Configurable dual radios

Support for any two of three Wi-Fi 6E bands (2.4, 5, and 6 GHz) and can provide full Wi-Fi 6E coverage in a multi-AP environment.

Low power, compact form factor

Compact form with 802.3af, class 3 power and the ability to enable/disable capabilities based on available POE.

2.5 Gbps Smart Rate Ethernet port

Increase speed and minimize wired bottlenecks with a Smart Rate Ethernet port.

Indoor location ready

Built in GPS receivers and fine time measurement (FTM) enable APs to automatically locate themselves and serve as reference points for accurate client location.

Application assurance

HPE Aruba Networking Air Slice dynamically allocates and tunes radio resources to ensure application service levels and optimize the user experience.


Hardware variants

AP-615: Internal antenna models

Wi-Fi radio specifications

  • AP type: Indoor, dual-radio/tri-band 2.4GHz, 5GHz and 6GHz (dual concurrent) 802.11ax 2×2 MIMO

  • 2.4GHz radio: Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices (287Mbps for HE20)

  • 5GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices

  • 6GHz radio: Two spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with 2SS HE160 802.11ax client devices

  • Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 4 for the 6GHz radio)

  • Supported frequency bands (country-specific restrictions apply)*:

  • 400 to 2.4835GHz ISM

  • 150 to 5.250GHz U-NII-1

  • 250 to 5.350GHz U-NII-2A

  • 470 to 5.725GHz U-NII-2C

  • 725 to 5.850GHz U-NII-3/ISM

  • 850 to 5.895GHz U-NII-4

  • 925 to 6.425GHz U-NII-5

  • 425 to 6.525GHz U-NII-6

  • 525 to 6.875GHz U-NII-7

  • 875 to 7.125GHz U-NII-8

  • Available bands and channels: Dependent on configured regulatory domain (country)

  • Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5GHz band

  • Supported radio technologies:

  • 11b: Direct-sequence spread-spectrum (DSSS)

  • 11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

  • 11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units

  • Supported modulation types:

  • 11b: BPSK, QPSK, CCK

  • 11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256-QAM (proprietary extension)

  • 11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension)

  • 11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM

  • 802.11n high-throughput (HT) support: HT20/40

  • 802.11ac very high throughput (VHT) support: VHT20/40/80

  • 802.11ax high efficiency (HE) support: HE20/40/80/160

  • Supported data rates (Mbps):

  • 11b: 1, 2, 5.5, 11

  • 11a/g: 6, 9, 12, 18, 24, 36, 48, 54

  • 11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM (proprietary extension)

  • 11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024-QAM (MCS10 and MCS11, proprietary extension)

  • 11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

  • 11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

  • 11ax (6GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)

  • 802.11n/ac packet aggregation: A-MPDU, A-MSDU

  • Transmit power: Configurable in increments of 0.5 dBm

  • Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):

  • Per radio/band (2.4GHz / 5GHz / 6GHz): +21 dBm (18dBm per chain)

  • Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.

  • Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks

  • Maximum ratio combining (MRC) for improved receiver performance

  • Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance

  • Space-time block coding (STBC) for increased range and improved reception

  • Low-density parity check (LDPC) for high-efficiency error correction and increased throughput

  • Transmit beam-forming (TxBF) for increased signal reliability and range

  • 802.11ax Target Wait Time (TWT) to support low-power client devices

  • 802.11mc Fine Timing Measurement (FTM) for precision distance ranging

  • *When configured for concurrent operation in 5GHz and 6GHz (only), the U-NII-4 band will be disabled


Table 1.   HPE Aruba 610 Series Wi-Fi 6E Access Points

Part number

Description

Internal antenna access points

R7J46A

HPE Aruba Networking AP-615 (EG) Dual-radio Tri-band 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

R7J47A

HPE Aruba Networking AP-615 (IL) Dual-radio Tri-band 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

R7J48A

HPE Aruba Networking AP-615 (JP) Dual-radio Tri-band 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

R7J49A

HPE Aruba Networking AP-615 (RW) Dual-radio Tri-band 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

R7J50A

HPE Aruba Networking AP-615 (US) Dual-radio Tri-band 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

Internal antenna access points—TAA models

R7J51A

HPE Aruba Networking AP-615 (EG) TAA Dual-radio Tri-band 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

R7J52A

HPE Aruba Networking AP-615 (IL) TAA Dual-radio Tri-band 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

R7J53A

HPE Aruba Networking AP-615 (JP) TAA Dual-radio Tri-band 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

R7J54A

HPE Aruba Networking AP-615 (RW) TAA Dual-radio Tri-band 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

R7J55A

HPE Aruba Networking AP-615 (US) TAA Dual-radio Tri-band 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP
