Product Overview

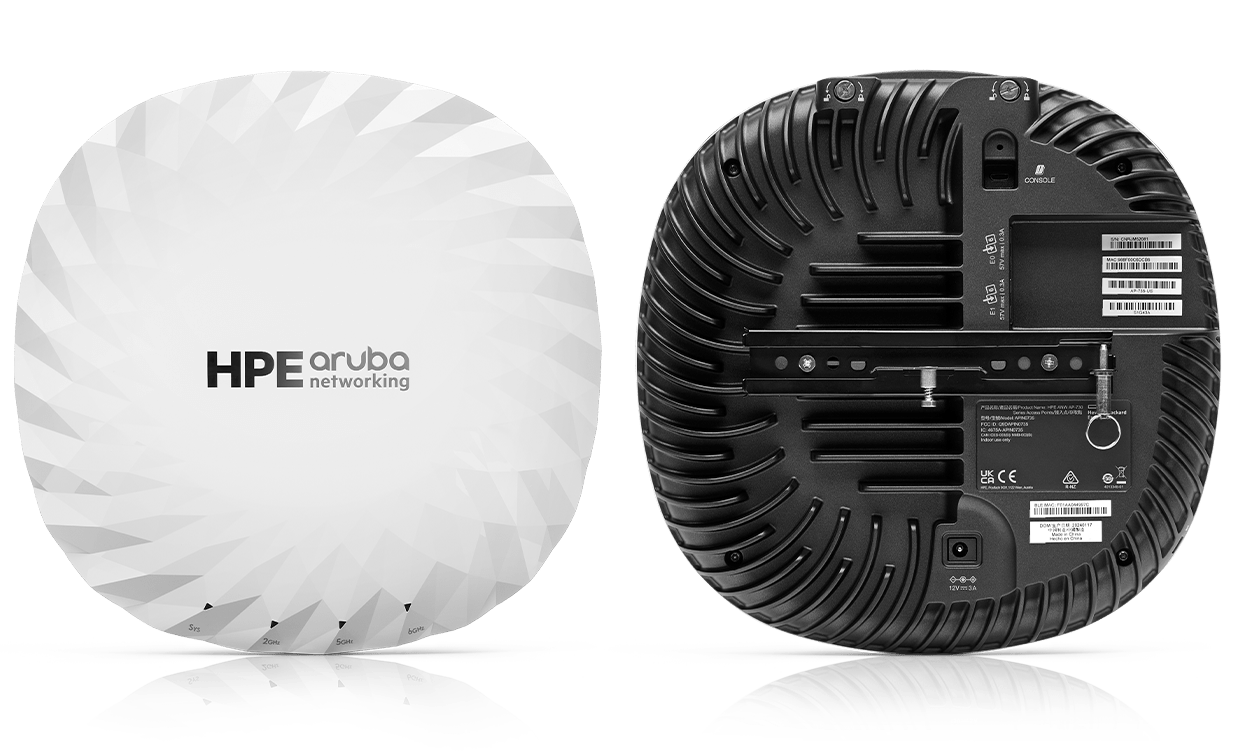

The 730 Series APs provide more Wi-Fi 7 performance with up to 30% more 6 GHz band capacity using patented ultra tri-band filtering to eliminate interference. Flexible radios can be customized for dual 5 GHz or dual 6 GHz to better reflect your client ecosystem. Tri-band coverage delivers up to 9.0 Gbps max aggregate data rate (capable of up to 14.4 Gbps max aggregate data rate using dual 6 GHz radio mode).
Enhanced security
The 730 Series APs, based on AOS-10, build on existing Wi-Fi security capabilities to deliver more edge security. HPE Aruba Networking Central’s Client Insights uses AI and machine learning to identify and classify 99% of known clients for better visibility and control. Dynamic Segmentation automates role-based access across wired and wireless, and new MACsec support1 extends wired encryption from switch to AP.
More IoT devices at higher densities
Eliminate IoT-device overlay gateways with the 730 Series APs that act as IoT platforms for 350+ partners. Connect 2x the IoT devices with two integrated Bluetooth 6 and 802.15.4/ Zigbee radios and two USB-port extensions to simplify deploying and managing growing numbers and densities of IoT devices. Leverage 2x the horsepower to run app containers on APs at the edge.
Precision Wi-Fi location service
Deliver sub-1-meter location precision with a built-in GNSS receiver and barometric sensor to better support use cases such as small-device asset tracking and proximity marketing without deploying overlay technologies. The 730 Series APs are also self-locating, eliminating the time-consuming, manual task of measuring, recording, and maintaining logs of APs.
Cloud-native management
With AI-powered insights, workflow automation, and robust security, cloud-native HPE Aruba Networking Central simplifies the management and orchestration of campus, branch, remote, and data center networks.
Features
Wi‑Fi 7 (802.11be) brings multi‑link operation (MLO) for channel aggregation and 4K QAM for higher throughput and lower latency
Unlocks the 6 GHz band to more than double the available capacity
Comprehensive tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver 9.3 Gbps maximum tri‑band aggregate data rate
Capable of up to 14.4 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes
Up to three 320 MHz channels in 6 GHz support low‑latency, bandwidth‑hungry applications like high‑definition video and augmented reality/virtual reality applications
Patented Ultra Tri‑Band (UTB) filtering enables 5 GHz and 6 GHz to operate without restrictions or interference
High availability with dual 5 Gbps ports for redundant Ethernet and power.
The built in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self‑locate and act as reference points for accurate indoor location measurements
MACsec support1 extends wired Ethernet protection to the AP
Hardware variants
HPE Aruba Networking AP-734: External antenna models
HPE Aruba Networking AP-735: Internal antenna models
Wi-Fi radio specifications
AP type: Indoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11be 2×2 MIMO
2.4 GHz radio: Two spatial stream Single User (SU) MIMO for up to 688 Mbps wireless data rate with 2SS EHT40 802.11be client devices
5 GHz radio: Two spatial stream Single User (SU) MIMO for up to 2.9 Gbps wireless data rate with 2SS EHT160 802.11be client devices
6 GHz radio: Two spatial stream Single User (SU) MIMO for up to 5.8 Gbps wireless data rate with 2SS EHT320 802.11be client devices
MU-MIMO (downlink, uplink) is supported on all radios
Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (countryspecific restrictions apply):
400 to 2.4835 GHz ISM
150 to 5.250 GHz U-NII-1
250 to 5.350 GHz U-NII-2
470 to 5.725 GHz U-NII-2E
725 to 5.850 GHz U-NII-3/ISM
850 to 5.895 GHz U-NII-4
925 to 6.425 GHz U-NII-5
425 to 6.525 GHz U-NII-6 (The U-NII-6 band is not supported when the AP-735 is configured for dual-6GHz mode.)
525 to 6.875 GHz U-NII-7
875 to 7.125 GHz U-NII-8
Available bands and channels: Dependent on configured regulatory domain (country)
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5 GHz band
Supported radio technologies:
11b: Direct-sequence spreadspectrum (DSSS)
11a/g/n/ac: Orthogonal frequencydivision multiplexing (OFDM)
11ax/be: Orthogonal frequencydivision multiple access (OFDMA) with up to 37 resource units
Supported modulation types:
11b: BPSK, QPSK, CCK
11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256-QAM (proprietary extension)
11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension)
11ax: BPSK, QPSK, 16-QAM, 64- QAM, 256-QAM, and 1024-QAM
11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM
802.11n high throughput (HT) support: HT20/40
802.11ac very high throughput (VHT) support: VHT20/40/80/160
802.11ax high efficiency (HE) support: HE20/40/80/160
802.11be extreme high throughput (EHT) support: EHT20/40/80/160/320
Supported data rates (Mbps):
11b: 1, 2, 5.5, 11
11a/g: 6, 9, 12, 18, 24, 36, 48, 54
11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM (proprietary extension)
11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024-QAM (MCS10 and MCS11, proprietary extension)
11ax: 7.3 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)
11be: 7.3 to 5,765 (MCS0 to MCS13, NSS = 1 to 2, EHT20 to EHT320)
802.11n/ac packet aggregation: A-MPDU, A-MSDU
Transmit power: Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements)
Per radio/band (2.4 GHz/5 GHz/6 GHz): +21 dBm (18 dBm per chain)
Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
Ultra Tri-Band (UTB) enables ultimate flexibility in 5 GHz and 6 GHz channel selection without performance degradation
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for highefficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
802.11ax Target Wait Time (TWT) to support low-power client devices
802.11mc/az Fine Timing Measurement (FTM) for precision distance ranging
Table 1. HPE Aruba 730 Series Wi-Fi 7 Access Points
Part number | Description |
Internal antenna access points | |
S1G39A | HPE Aruba Networking AP‑735 (EG) Tri‑radio 2×2:2 802.11be Wi‑Fi 7 Internal Antennas Campus AP |
S1G40A | HPE Aruba Networking AP‑735 (IL) Tri‑radio 2×2:2 802.11be Wi‑Fi 7 Internal Antennas Campus AP |
S1G41A | HPE Aruba Networking AP‑735 (JP) Tri‑radio 2×2:2 802.11be Wi‑Fi 7 Internal Antennas Campus AP |
S1G42A | HPE Aruba Networking AP‑735 (RW) Tri‑radio 2×2:2 802.11be Wi‑Fi 7 Internal Antennas Campus AP |
S1G43A | HPE Aruba Networking AP‑735 (US) Tri‑radio 2×2:2 802.11be Wi‑Fi 7 Internal Antennas Campus AP |
Internal antenna access points — eco‑friendly 5‑packs | |
S0H12A | HPE Aruba Networking AP‑735 (RW) Tri Radio 2×2 Wi‑Fi 7 Internal Antennas 5‑Pack Campus Access Point |
S0H13A | HPE Aruba Networking AP‑735 (US) Tri Radio 2×2 Wi‑Fi 7 Internal Antennas 5‑Pack Campus Access Point |
External antenna access points | |
S1G32A | HPE Aruba Networking AP‑734‑RW Tri‑radio 2×2:2 Wi‑Fi 7 External Antennas Campus AP |
S1G33A | HPE Aruba Networking AP‑734‑US Tri‑radio 2×2:2 Wi‑Fi 7 External Antennas Campus AP |
Internal antenna access points — TAA models | |
S1G44A | HPE Aruba Networking AP‑735 (EG) TAA Tri‑radio 2×2:2 802.11be Wi‑Fi 7 Internal Antennas Campus AP |
S1G45A | HPE Aruba Networking AP‑735 (IL) TAA Tri‑radio 2×2:2 802.11be Wi‑Fi 7 Internal Antennas Campus AP |
S1G46A | HPE Aruba Networking AP‑735 (JP) TAA Tri‑radio 2×2:2 802.11be Wi‑Fi 7 Internal Antennas Campus AP |
S1G47A | HPE Aruba Networking AP‑735 (RW) TAA Tri‑radio 2×2:2 802.11be Wi‑Fi 7 Internal Antennas Campus AP |
S1G48A | HPE Aruba Networking AP‑735 (US) TAA Tri‑radio 2×2:2 802.11be Wi‑Fi 7 Internal Antennas Campus AP |
External antenna access points — TAA models | |
S1G37A | HPE Aruba Networking AP‑734‑RWF1 TAA Tri‑radio 2×2:2 Wi‑Fi 7 External Antennas Campus AP |
S1G38A | HPE Aruba Networking AP‑734‑USF1 TAA Tri‑radio 2×2:2 Wi‑Fi 7 External Antennas Campus AP |
