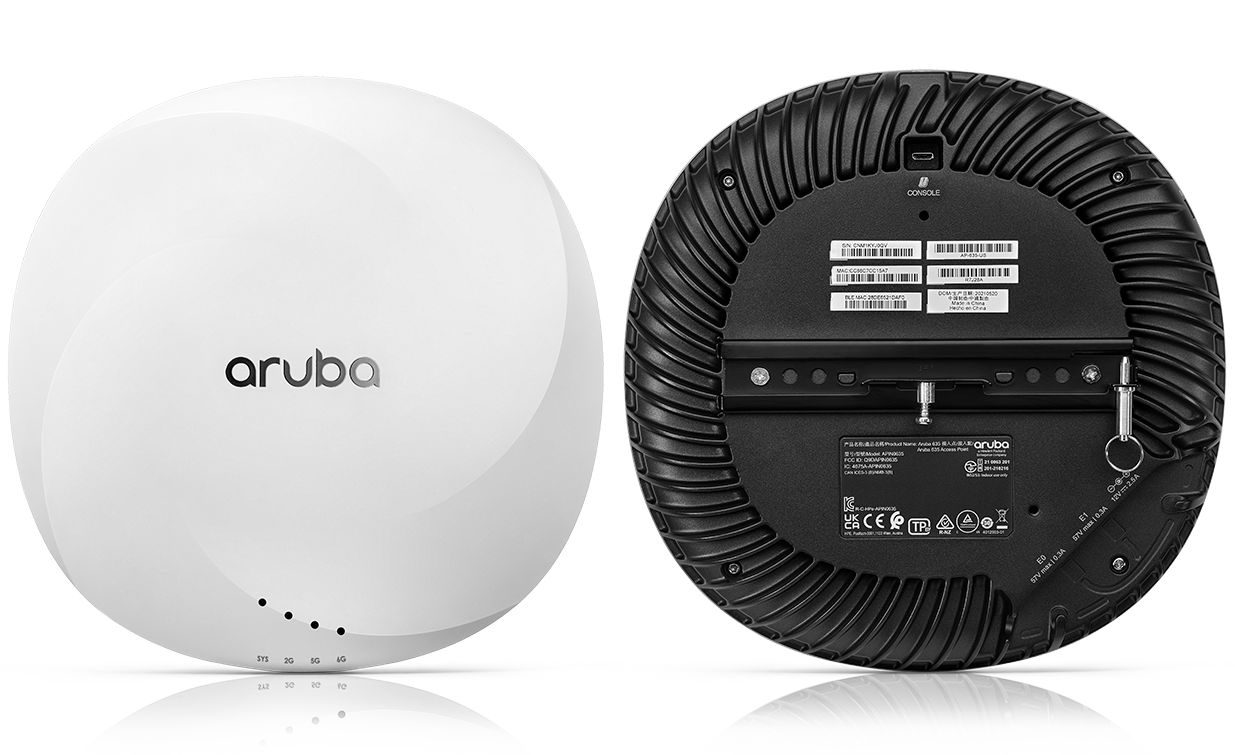

Product Overview
The 630 Series APs are designed to take advantage of the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. It delivers 3.9 Gbps maximum aggregate data rates Tri-radio, 2×2:2 MIMO in all three bands (3.9Gbps aggregate peak).
Less interference
630 Series APs include HPE Aruba Networking’s unique ultra tri-band filtering, which enables enterprises to take advantage of the high end of 5 GHz band with the lower end of 6 GHz without experiencing signal interference or performance degradation.
Ultimate efficiency
The 630 Series APs are based on the 802.11ax standard, which means that all its efficiency and security enhancements are also available on the 6 GHz band. Features include Orthogonal frequency-division multiple access (OFDMA), Multi-User MIMO as well as other capabilities built into HPE Aruba Networking’s Wi-Fi 6 access points.
IoT and location ready
The 630 Series includes an integrated Bluetooth 5 and 802.15.4 radio for Zigbee support to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors.
Features
Aruba 630 Series APs take advantage of the 6 GHz band and include ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps and deliver fast, secure connectivity.
Business continuity
Ensures high availability with two 2.5 Gbps HPE Smart Rate ethernet ports for hitless failover for both data and power.
Built-in security
Includes Wi-Fi 6E standards such as WPA3 and Enhanced Open and WPA2-MPSK for stronger encryption and authentication.
Role-based access
Improves security and ease of management by allowing IT to centrally configure and automatically enforce role-based policies across wired and wireless networks.
Client steering
Steers traffic from the noisy 2.4 GHz band to the preferred 5 GHz or 6 GHz band based on device capabilities and dynamically steers traffic to load balance APs.
Hardware variants
AP-634: External antenna models
AP-635: Internal antenna models
Wi-Fi radio specifications
AP type: Indoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2×2 MIMO
2.4GHz radio: Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices
5GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices
6GHz radio: Two spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with 2SS HE160 802.11ax client devices
Downlink Multi-User (MU) MIMO is supported on all radios but disabled by default
Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
400 to 2.4835GHz ISM
150 to 5.250GHz U-NII-1
250 to 5.350GHz U-NII-2
470 to 5.725GHz U-NII-2E
725 to 5.850GHz U-NII-3/ISM
850 to 5.895GHz U-NII-4
925 to 6.425GHz U-NII-5
425 to 6.525GHz U-NII-6
525 to 6.875GHz U-NII-7
875 to 7.125GHz U-NII-8
Available bands and channels: Dependent on configured regulatory domain (country)
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5GHz band
Supported radio technologies:
11b: Direct-sequence spread-spectrum (DSSS)
11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units (37 for the 6GHz radio)
Supported modulation types:
11b: BPSK, QPSK, CCK
11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256-QAM (proprietary extension)
11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension)
11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM
802.11n high-throughput (HT) support: HT20/40
802.11ac very high throughput (VHT) support: VHT20/40/80
802.11ax high efficiency (HE) support: HE20/40/80/160
Supported data rates (Mbps):
11b: 1, 2, 5.5, 11
11a/g: 6, 9, 12, 18, 24, 36, 48, 54
11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM (proprietary extension)
11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024-QAM (MCS10 and MCS11, proprietary extension)
11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
11ax (6GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)
802.11n/ac packet aggregation: A-MPDU, A-MSDU
Transmit power: Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
Per radio/band (2.4GHz / 5GHz / 6GHz): +21 dBm (18dBm per chain)
Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
Ultra Tri-Band (UTB) enables ultimate flexibility in 5GHz and 6GHz channel selection without performance degradation*
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
802.11ax Target Wait Time (TWT) to support low-power client devices
*The UTB feature was not supported on the initial AP-635 hardware, but was introduced in a hardware revision. See Aruba Field Bulletin AP2205-1 on the Aruba Support Portal for more details
Table 1. HPE Aruba 630 Series Wi-Fi 6E Access Points
Part number | Description |
Internal antenna access points | |
R7J24A | HPE Aruba Networking AP-635 (EG) Tri-radio 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
R7J25A | HPE Aruba Networking AP-635 (IL) Tri-radio 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
R7J26A | HPE Aruba Networking AP-635 (JP) Tri-radio 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
R7J27A | HPE Aruba Networking AP-635 (RW) Tri-radio 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
R7J28A | HPE Aruba Networking AP-635 (US) Tri-radio 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
External antenna access points | |
S1G49A | HPE Aruba Networking AP-634-RW Tri-radio 2×2:2 Wi-Fi 6E External Antennas Campus AP |
S1G50A | HPE Aruba Networking AP-634-US Tri-radio 2×2:2 Wi-Fi 6E External Antennas Campus AP |
Internal antenna access points—TAA models | |
R7J29A | HPE Aruba Networking AP-635 (EG) TAA Tri-radio 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
R7J30A | HPE Aruba Networking AP-635 (IL) TAA Tri-radio 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
R7J31A | HPE Aruba Networking AP-635 (JP) TAA Tri-radio 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
R7J32A | HPE Aruba Networking AP-635 (RW) TAA Tri-radio 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
R7J33A | HPE Aruba Networking AP-635 (US) TAA Tri-radio 2×2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
External antenna access points—TAA models | |
S1G51A | HPE Aruba Networking AP-634-RWF1 TAA Tri-radio 2×2:2 Wi-Fi 6E External Antennas Campus AP |
S1G52A | HPE Aruba Networking AP-634-USF1 TAA Tri-radio 2×2:2 Wi-Fi 6E External Antennas Campus AP |
