Product Overview

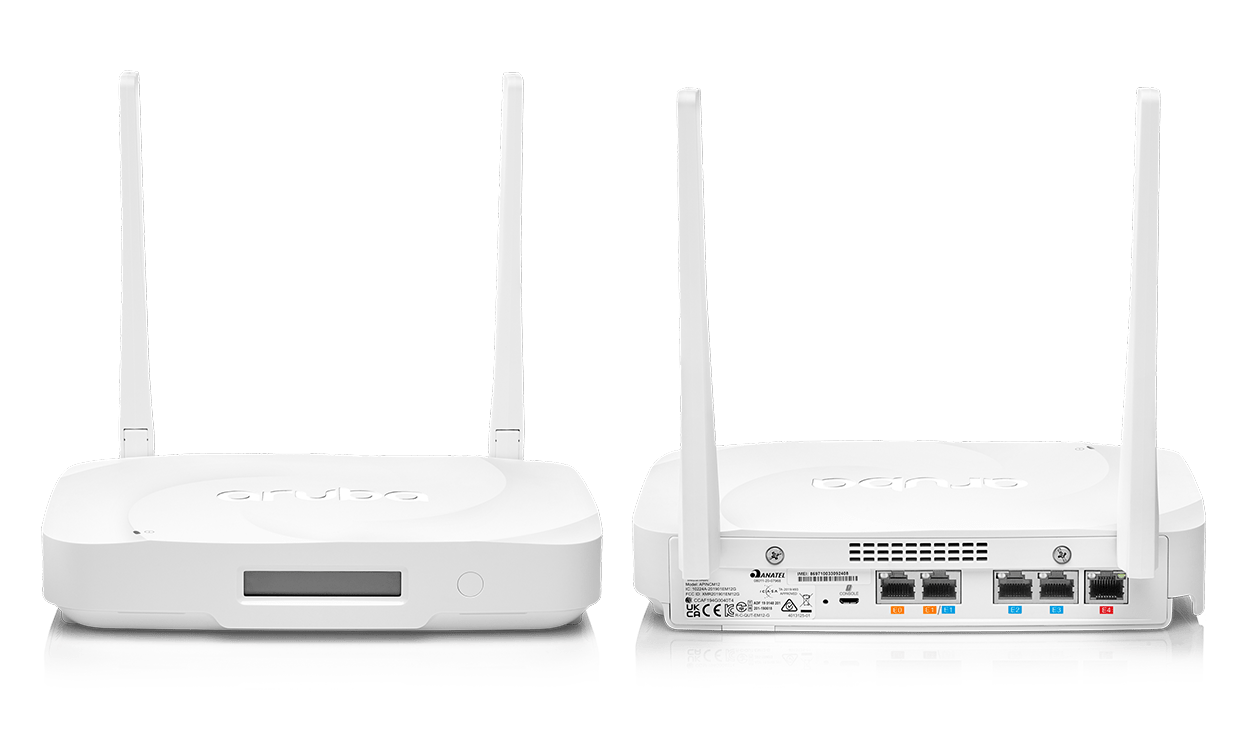

HPE Aruba Networking 600R Series Remote Access Points, Fast, resilient, and secure Wi-Fi 6E connectivity with high-speed cellular—in a desktop platform designed for the small office/home office. Remote work just got better, The new 600R Series APs leverage AOS 10 to provide fast, resilient, and secure Wi-Fi 6E connectivity for mission-critical work.
Faster performance with 6 GHz
Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and 3.6 Gbps maximum combined data rate to better support high-bandwidth, low-latency applications such as high-definition video.
Increase resiliency with cellular
For backup or primary cellular connectivity, the HPE Aruba Networking 600R Series Remote Access Points are offered with a CAT 12 module option that includes antennas and a high-speed interface for LTE connectivity.
Extend the WAN to remote workers
Using remote APs managed by HPE Aruba Networking Central, IT can remotely deploy and centrally manage secure network connectivity for hundreds or even thousands of remote workers or small office employees.
Ensure simple and secure access
Remote work increases the attack surface in an organization. These RAPs are better protected using new, sophisticated security models such as Zero Trust and SASE. Plus, Wi-Fi 6 enhancements like WPA3 and Enhanced Open provide data encryption and guest password security.
Features
Remote APs for the super user, Meet the needs of your most demanding applications with desktop APs optimized for the home office/small office.
6 GHz support
Maximum combined 3.6 Gbps data rate for higher throughput and faster speeds indoors (when using 5 GHz and 6 GHz bands).
Configurable dual radios
Support any two of three Wi-Fi 6E bands (2.4, 5, and 6 GHz) and provide full Wi-Fi 6E coverage in a multi-AP environment.
Multiple uplink/downlink options
2.5 Gbps uplink/downlink Ethernet port, dedicated 1 Gbps uplink port, and three dedicated downlink ports to eliminate bottlenecks.
Cloud-native management
HPE Aruba Networking Central provides Zero Touch Provisioning and a single pane of glass for unified management across campus, branch, and remote work environments.
Cellular module
Can be extended with a CAT 12 module that includes antennas and a high-speed interface for LTE connectivity.
Desktop design
No mounts needed—plus bundles that combine a desk stand, power adapter, and power cord to eliminate excess packaging.
Hardware variants
Wi-Fi radio specifications
Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 4 for the 6GHz radio)
Supported frequency bands (country-specific restrictions apply):
Available bands and channels: Dependent on configured regulatory domain (country)
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5GHz band
Supported radio technologies:
Supported modulation types:
802.11n high-throughput (HT) support: HT20/40
802.11ac very high throughput (VHT) support: VHT20/40/80
802.11ax high efficiency (HE) support: HE20/40/80
Supported data rates (Mbps):
802.11n/ac packet aggregation: A-MPDU, A-MSDU
Transmit power: Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
802.11ax Target Wait Time (TWT) to support low-power client devices
802.11mc Fine Timing Measurement (FTM) for precision distance ranging
Table 1. HPE Aruba 600R Series Remote Access Points
Part number | Description |
HPE Aruba Networking 600R Series Remote Access Points | |
R8N06A | HPE Aruba Networking AP‑605R‑EG Dual‑radio Tri‑band 2×2 Wi‑Fi 6E Remote Access Point |
R8N07A | HPE Aruba Networking AP‑605R‑IL Dual‑radio Tri‑band 2×2 Wi‑Fi 6E Remote Access Point |
R8N08A | HPE Aruba Networking AP‑605R‑JP Dual‑radio Tri‑band 2×2 Wi‑Fi 6E Remote Access Point |
R8N09A | HPE Aruba Networking AP‑605R‑RW Dual‑radio Tri‑band 2×2 Wi‑Fi 6E Remote Access Point |
R8N10A | HPE Aruba Networking AP‑605R‑US Dual‑radio Tri‑band 2×2 Wi‑Fi 6E Remote Access Point |
HPE Aruba Networking 600R Series Remote Access Points – TAA compliant | |
R8N11A | HPE Aruba Networking AP‑605R‑EGF1 TAA Dual‑radio Tri‑band 2×2 Wi‑Fi 6E Remote Access Point |
R8N12A | HPE Aruba Networking AP‑605R‑ILF1 TAA Dual‑radio Tri‑band 2×2 Wi‑Fi 6E Remote Access Point |
R8N13A | HPE Aruba Networking AP‑605R‑JPF1 TAA Dual‑radio Tri‑band 2×2 Wi‑Fi 6E Remote Access Point |
R8N14A | HPE Aruba Networking AP‑605R‑RWF1 TAA Dual‑radio Tri‑band 2×2 Wi‑Fi 6E Remote Access Point |
R8N15A | HPE Aruba Networking AP‑605R‑USF1 TAA Dual‑radio Tri‑band 2×2 Wi‑Fi 6E Remote Access Point |
HPE Aruba Networking 600R Series Cellular radio modules | |
R8N34A | HPE Aruba Networking AP‑605CM12 CAT12 LTE Cellular Module |
HPE Aruba Networking 600R Series Wi-Fi 6E Remote Access Points with cellular module pre-installed | |
R8N19A | HPE Aruba Networking AP‑605R12‑EU Dual‑radio Tri‑band 2×2 Wi‑Fi 6E CAT12 LTE Remote AP |
R8N20A | HPE Aruba Networking AP‑605R12‑US Dual‑radio Tri‑band 2×2 Wi‑Fi 6E CAT12 LTE Remote AP |
